Tripp-Lite SmartOnline SU3000RTXR3U Manuel page 5

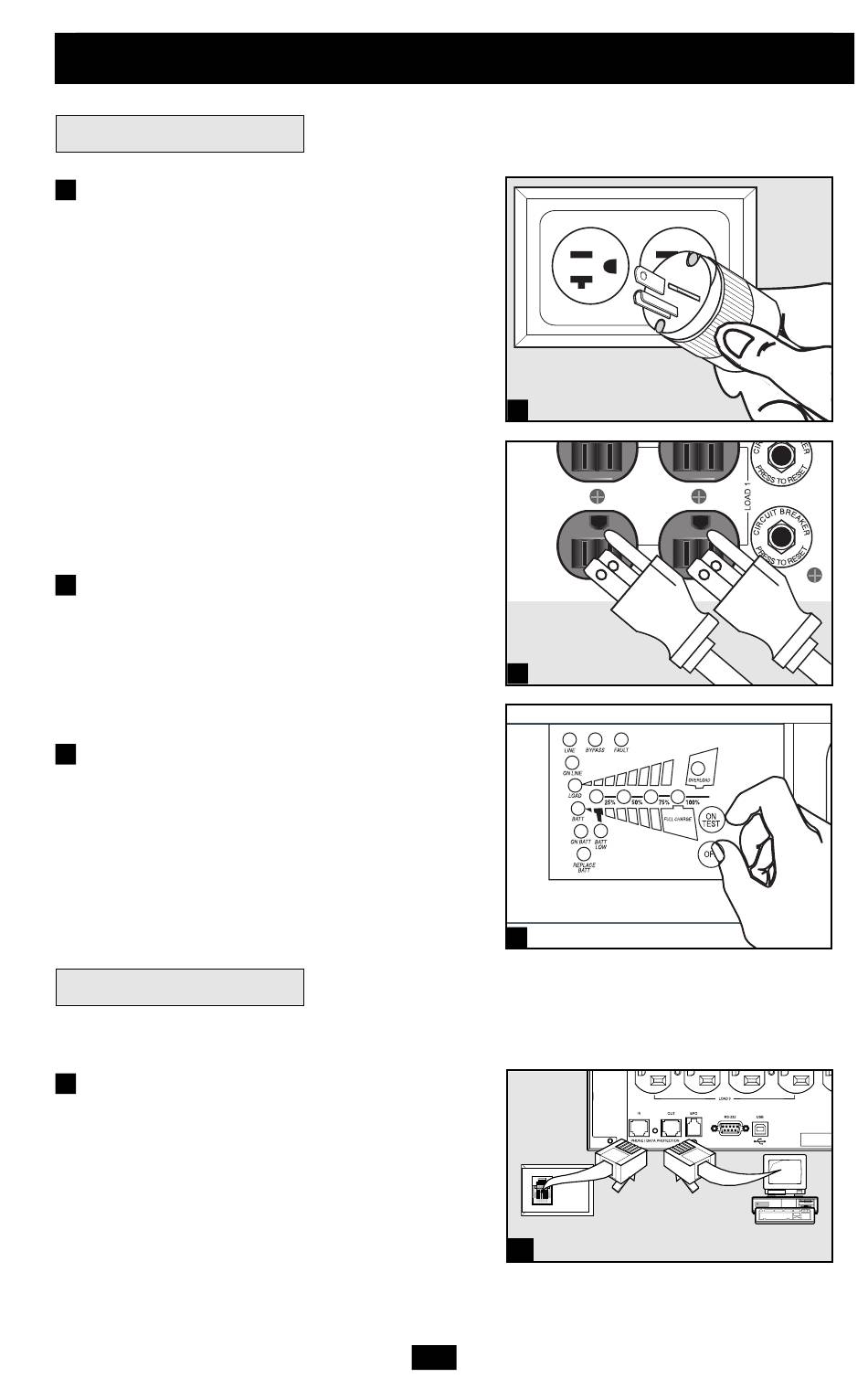

Installation Important Safety Instructions
Connection and Start-Up
Plug your UPS's line cord into an
1
electrical outlet.
Your UPS must be connected to a dedicated
circuit of sufficient amperage. Note, however,
that the select models may be fitted with
different plug types. Refer to the "OP
Rating/Plug Rating" chart printed on the top of
your UPS.
Once your UPS is plugged in, the fan and all
Indicator Lights will turn ON. The "LINE" and
"LOAD ACTIVE
illuminate and the UPS will emit a beep to
indicate normal operation. However, power is
not supplied to your UPS's AC outlets until the
UPS is turned on.
2
Plug your equipment into your UPS.
Your UPS is designed to support computer
equipment only. You will overload your UPS if
you connect household appliances or laser
printers to the UPS's outlets.
Turn your UPS ON:
3
• Press the "ON/TEST" Button
• Hold it for several seconds until you
hear a beep
• Release it
Your UPS will begin providing AC power to its outlets.
The "ON LINE" LED will illuminate.
Optional Connections
Your UPS will function properly without these
connections.
Phone Line or Phone/Network
1
Line Surge Suppression
Your UPS has jacks which protect against
surges on a phone line. Select models feature
jacks which also protect against surges on a
network line. Using appropriate telephone or
network cords connect your wall jack to the
UPS jack marked "IN." Connect your
equipment to the UPS jack marked "OUT."
Make sure the equipment you connect to the
UPS's jacks is also protected against surges on
the AC line.
(continued)
METER" LEDs
Your model may differ.
1
will
2
Your model may differ.
3
1
Your model may differ.
5
