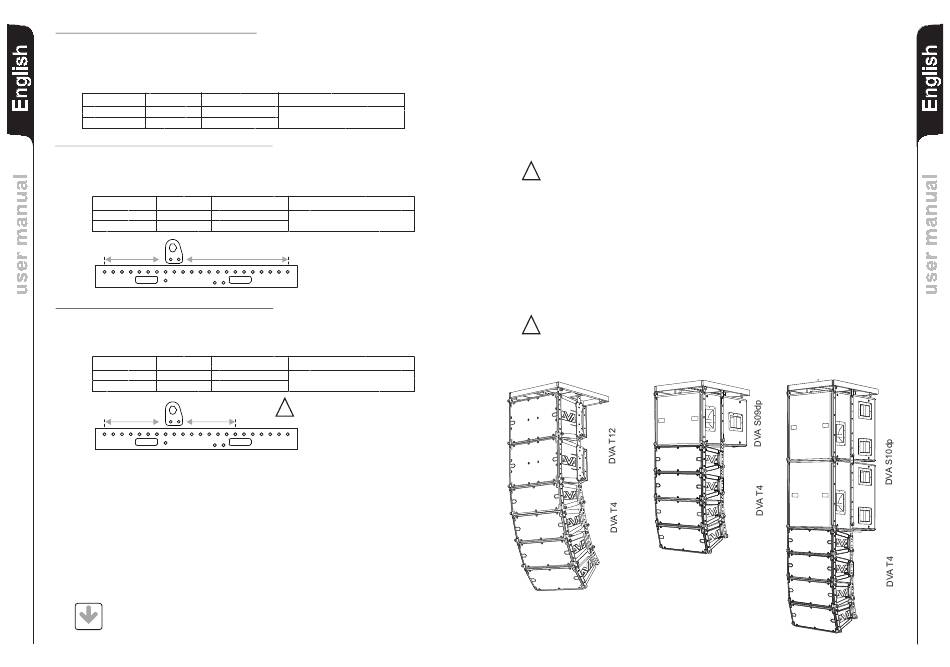

Mixed configuration with DVA T4 and DVA T12
The modular structure of DVA System permits mixed suspension configuration between
DVA T4 and DVA T12. For this reason, it is necessary to calculate the total weight.
Consider that one DVA T12 hanging corresponds, in weght terms, to two DVA T4.
Example:
Quantity
DVA T12
10
DVA T4
6
Mixed configuration with DVA T12 and DVA S09dp
The modular structure of DVA System permits mixed suspension configuration between
DVA T12 and DVA S09dp. For this reason, it is necessary to calculate the total weight.
Example:
Quantity
DVA T12
14
DVA S09dp
4
1
2
3
4
5
6
7
8
9
10
11
Mixed configuration with DVA T12 and DVA S10dp
The modular structure of DVA System permits mixed suspension configuration between
DVA T12 and DVA S10dp. For this reason, it is necessary to calculate the total weight.
Example:
Quantity
DVA T12
20
DVA S10dp
4
1
2
3
4
5
6
7
8
9
10
11
DVA Composer Acoustical Simulation and aiming for DVA Systems
DVA Composer is a 2D software for aiming and simulating acoustical response of all line
arrays and Subwoofers from DVA Series.
The software allows you to set up a stereo system composed by tops and subs, and
simulates separately the acoustical response of both.
DVA Composer also gives to the user all the information about phase alignment between
flown systems and ground stacked subwoofers, as well as it suggests an optimized
aiming of the line arrays modules and their suggested EQ presets, in order to guarantee
maximum performances even for non-expert customers.
It is recommended to download DVA_Composer free software directly from
dB Technologies (www.dbtechnologies.com) in the special section «Software
7
DOWNLOAD
& Controller»
Weight x qty
Configuration weight
300Kg
390Kg
90Kg
Weight x qty
Configuration weight
420Kg
572Kg
152Kg
12
13
14
15
16
17
18
19
20
21
22
Weight x qty
Configuration weight
600Kg
784Kg
184Kg
Note : It is not possible use the system
!
from 16 to 22 points
12
13
14
15
16
17
18
19
20
21
22
Structural modification of DRK 20 flybar
It is prohibited to make any changes to the structure of the DRK 20 flybar and on the stirrups
assembling of the speakers.
Tampering and/or modify the structure or the accessories may be causes risk of failure or
breakage.
Original parts dB Technologies
It is forbidden to use parts and accessories other than those supplied.
Use only dB Technologies original parts.
Always install parts in accordance with these installation instruction!
Compile and store all DVA system documents in a safe place!
Warning
!
dB Technologies is not responsible for any possible damage to people, things and
animals if the security norms and total weight calculations are not observed!
Note
During installation ensure that carrying structure of the system has added in the total weight
also the DRK 20 flybar weight, chain hoists, motors, cables and further weights.
Initiation and Operation
§ 39, VBG 9a of the German employers' liability insurance association's accident prevention
regulations requires that load-carrying equipment be inspected by a qualified expert and
possible defects be eliminated prior to initial commissioning by the recipient.
§ 41 VBG 9a requires that load-carrying equipment be subjected to a non-routine inspection
following damage, repair work and other incidents that can affect load-carrying capacity.
Warning
The safety regulations might be different in other countries. Please check with your
!
national safety authority the valid regulations!
