5.6 Grundfos GO

The pump is designed for wireless radio or infrared
communication with Grundfos GO.
Grundfos GO enables setting of functions and gives access to
status overviews, technical product information and actual
operating parameters.
Grundfos GO offers the following mobile interfaces (MI).
2
+

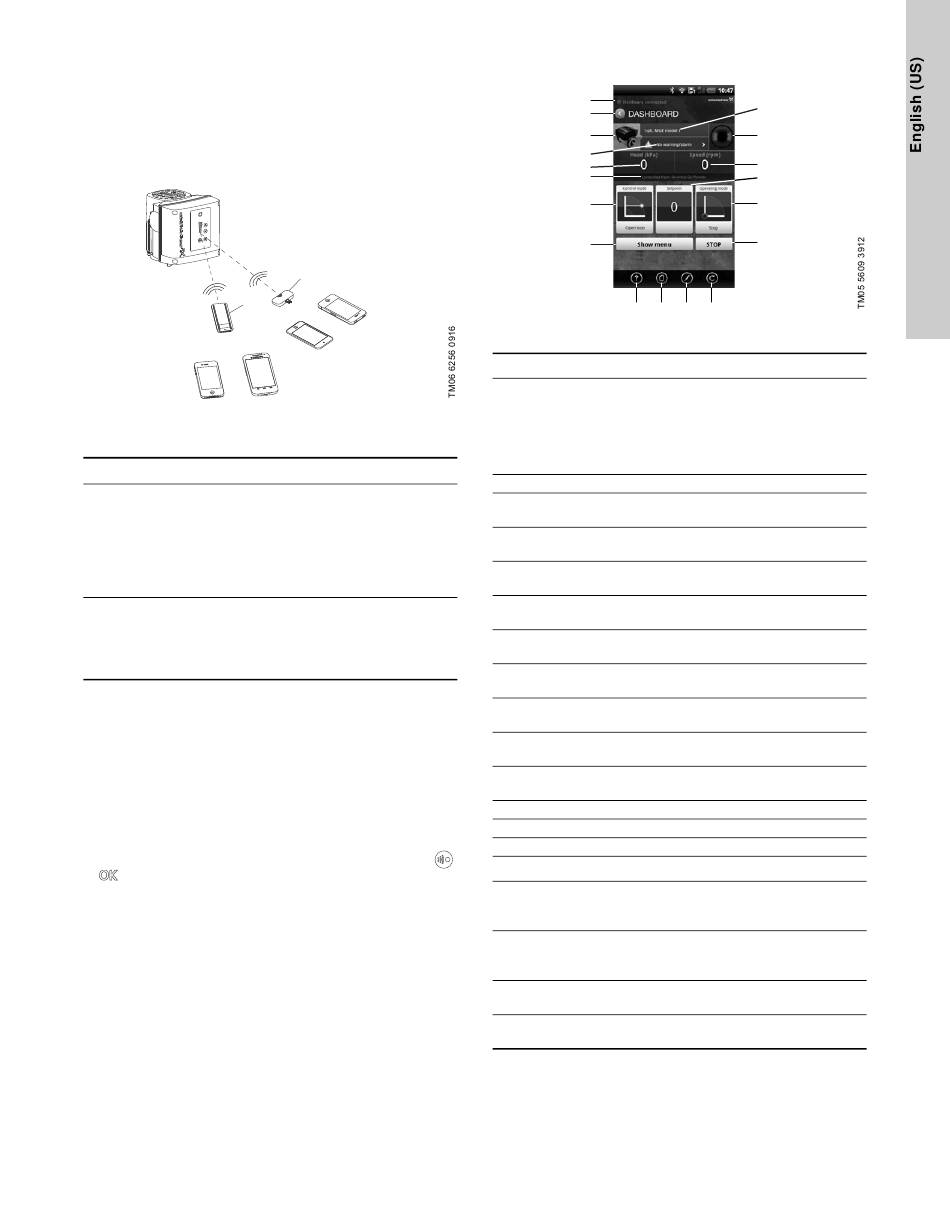

Fig. 35 Grundfos GO communicating with the pump via radio
or infrared connection (IR)
Pos. Description
Grundfos MI 204:
Add-on module enabling radio or infrared
communication. You can use MI 204 in conjunction
1 with an Apple iPhone or iPod with Lightning connector,
such as fifth generation or later iPhone or iPod.
MI 204 is also available together with an Apple iPod
touch and a cover.
Grundfos MI 301:
Separate module enabling radio or infrared
2 communication. You can use the module in
conjunction with an Android or iOS-based smart
device with Bluetooth connection.
5.6.1 Communication
When Grundfos GO Remote communicates with the pump, the
indicator light in the middle of the Grundfos Eye will flash green.
Communication must be established using one of these
communication types:
• radio communication
• infrared communication.
Radio communication
Radio communication can take place at distances up to 30
meters. It is necessary to enable communication by pressing
or on the pump control panel.
Infrared communication
When communicating via infrared light, Grundfos GO Remote
must be pointed at the pump control panel.
5.6.2 Navigation
Navigation can be done from the dashboard. See fig. 36.
1
+
Dashboard
1
2
3
5
7
9
10
13
15 16
Fig. 36 Example of dashboard
Pos. Description Action
This text appears when Grundfos
GO Remote app has connected to
Connection an MI 201, MI 202 or MI 301.
1
indicator If the hardware is not connected, it
will not be possible to communicate
with a Grundfos product.
2 Back button Returns to the previous display.
Product Provides technical information about
3
information the product.
Name of the product communicating
4 Product name
with Grundfos GO Remote.
Alarms and
5 Shows alarms and warnings.
warnings
Shows the operating condition of the
6 Grundfos Eye
product.
Primary status
7 Shows the primary status value.
value
Secondary
8 Shows the secondary status value.
status value
Shows by which interface the
9 Control source
product is controlled.
Shows the control mode of the
10 Control mode
product.
Actual setpoint
11 Shows the actual setpoint value.
value
12 Operating mode Shows the operating mode.
13 Show menu Gives access to other menus.
14 Stop Stops the product.
Tool bar
The help function describes the
15 Help menus making it easy for the user to
change settings, etc.
Gives access to installation and
16 Documentation operating instructions and quick
guides.
Enables the creation of user-defined
17 Report
reports.
Enables update of Grundfos GO
18 Update
Remote app.
4
6
8
11
12
14
17 18
