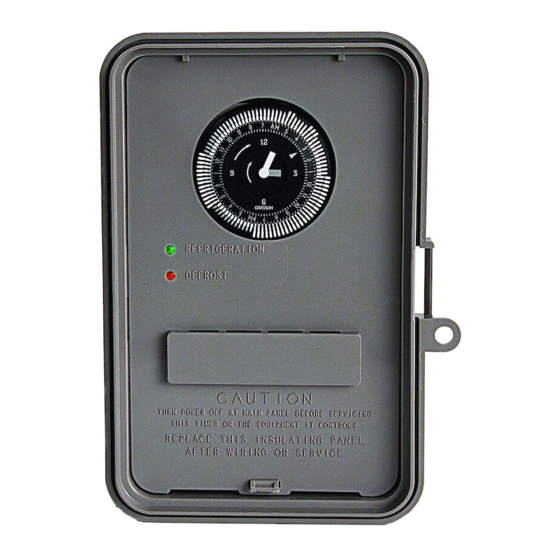

DTAV40 Series
WARNING
Risk of Fire or Electric Shock
• Disconnect power at the circuit breaker(s) or disconnect switch(es) before beginning installation or servicing.
Do not use the off position of the timer for equipment servicing.
• More than one circuit breaker or disconnect switch may be required to de-energize the equipment before
servicing.
• Use COPPER conductors ONLY.
• For 40 amp loads, use #8 AWG wire, rated 90 degrees C min.
• Wire in accordance with national and local electrical code requirements.
• This Type 3R enclosure does not provide grounding between conduit connections. When metallic conduit is
used, you must also install grounding type bushings and jumper wire, in accordance withå the national
electrical code requirements.
• When replacing a timer with a metal bracket, replace the bracket with a non-metallic bracket. (Intermatic
Model DT-B is recommended.)
• For outdoor locations, raintight, or wet location, conduit hubs that comply with requirements of UL514B
(standard for fittings for conduit and outlet boxes) are to be used.
Risk of Damage to Timer
NOTICE
• Rotate timer dial clockwise only.
• Do not move the clock hands on the timer. Moving the clock hands can damage the timer.
Mode Selection Switch (S1)
UL TYPE 3R ENCLOSURE
Set Mode Selection (See S1 DIP Switch, table and instructions below).
MODE SELECTION (S1 DIP SWITCH):
First determine what model is being replaced (Grasslin or Competitors).
The mode selector DIP switch (located at lower right side of the board)
determines the configuration of terminals 2 & 4. In position "A", the
terminals are normally closed, and will open during a defrost. In position
"B", terminals 2 & 4 are normally open, and will close during a defrost.
Select proper position from table below and wiring diagrams indicated.
To select mode simply slide the switch as follows:
Mode A - position switch up;
Mode B - position switch down;
Note: When Mode "B" is selected the
DTAV40 will operate as follows:
Refrigeration Mode - Red & Green LEDs
will turn OFF (1 & 3 and 2 & 4 break while
1 & F make)
Defrost Mode - RED & GREEN LEDs will turn
ON (1 & 3 and 2 & 4 make while 1 & F break)
Mode Selection
Paragon Precision
TIME INITIATED, TIME TERMINATED
TIME INITIATED, REMOTE TEMPERATURE OR
PRESSURE TERMINATED
TIME INITIATED, PRESSURE TERMINATED
(Separate Pressure Switch Required (see instructions)
Grasslin
Cross Ref.
DTAV replaces over 40 models.
Installation &
Operating Instructions
Time Terminated Auto-Voltage 40A Defrost Timers
(Saleable item DT-B)
SEE SEparatE BraCKEt
rEpLaCEMENt NOtICE
UL TYPE 1 ENCLOSURE
Wiring Diag.
Time Initiated, Temperature, Pressure or
INSTALLATION
1. Open door and then remove interior protective cover by releasing
spring latch on bottom (Figure 1). Cover flexes out easily on Type 1
metallic case (Figure 4).
2. Apply corresponding Terminal Identification and Door labels-see
retrofit kit instructions.
BRACKET MOUNT
3. Remove timer mechanism by releasing PCB Latch on bottom
(Figure 1). Timer Mechanism comes detached in TYPE-1 Metallic
Enclosure (Figure 4).
IN paCKaGE
4. Select knockouts to be used. Remove inner 1/2" knockout by
inserting a screwdriver in the slot and carefully punch knockout
loose. Remove slug. If 3/4" knockout is required, remove the outer
ring with pliers after removing the 1/2" knockout. Smooth edges
with knife if necessary, on plastic enclosure only.
5. Place enclosure in desired mounting location and mark the three
mounting holes (refer to Figure 2 for Type 3R and Figure 3 for
Type 1 below). Start by installing top screw into mounting surface
and hanging enclosure on screw head through keyhole; then screw
in remaining two screws in bottom holes.
6. Grounding: Terminate all ground wires to ground lug on bottom of
enclosure.
7. Re-install timer in enclosure.
8. Replace interior protective cover.
4-1/16"
SPECIFICATIONS:
Maximum Contact Switch Rating:
40A Resistive @ 120-240VAC
2HP @ 240VAC; 1HP @ 120VAC
WIRING CONNECTIONS:
Screw box lug terminals. Up to one #8AWG Wire
ENVIRONMENTAL RATINGS:
Operating Temperature Range: -40˚F to 104˚F
(-40˚C to 40˚C)
Operating Humidity: 0 - 95% RH,
non-condensing
ELECTRICAL LIFE:
50,000 Operations at Full Load
DIMENSIONS:
8.795" x 6.631" x 2.935" (H x W x D)
SHIPPING WEIGHT: 3 lbs.
AGENCY APPROVALS: UL LISTED
Timer Mechanism
Interior
Protective
Cover
Spring Latch
PCB Latch
Type 3R Enclosure
Figure 1
PCB Latch
7 ¾"
2-1/2"
5"
Type 1 Enclosure
Figure 3
6-1/8"
2-1/2"
Ground Lug
Type 3R Enclosure
Figure 2
TImer Mechanism
Interior Type 1 Enclosure
Protective Cover Figure 4
