Mounting the Hood
5. Install the (4) 3/16 x 7/8 mounting screws on top
of the four corners of the unit body (FIG. B4). Lift
hood and align the mounting screws with the (4)
key holes on the bottom of support frame (FIG. F).
Slide hood towards the narrow end of key holes
to lock into place. Hand tighten each of the (4)
screws with a screwdriver to secure to bottom
support frame. Further secure bottom support
frame to unit body by (1) M4 x 12 safety screw
(FIG. G).
6. Remove tape securing electronics mounting
bracket to hood and reposition electronics
mounting bracket with (2) M4 x 8 screws. Install
electrical and duct work.
7. Power up hood, verify all functions, and check for
leaks around duct tape.
8. Assembly top duct covers (with louver holes)
together over top support frame and secure top
duct covers together by magnetic strips.
9. Secure top duct covers to top support frame by
using (4) 3/16 x 1/4" screws (2 screws for each top
duct cover (FIG. H).
10. Assemble bottom duct covers together over top
duct covers and secure together by magnetic
strips. Bottom duct covers should rest on top of the
hood body.
16

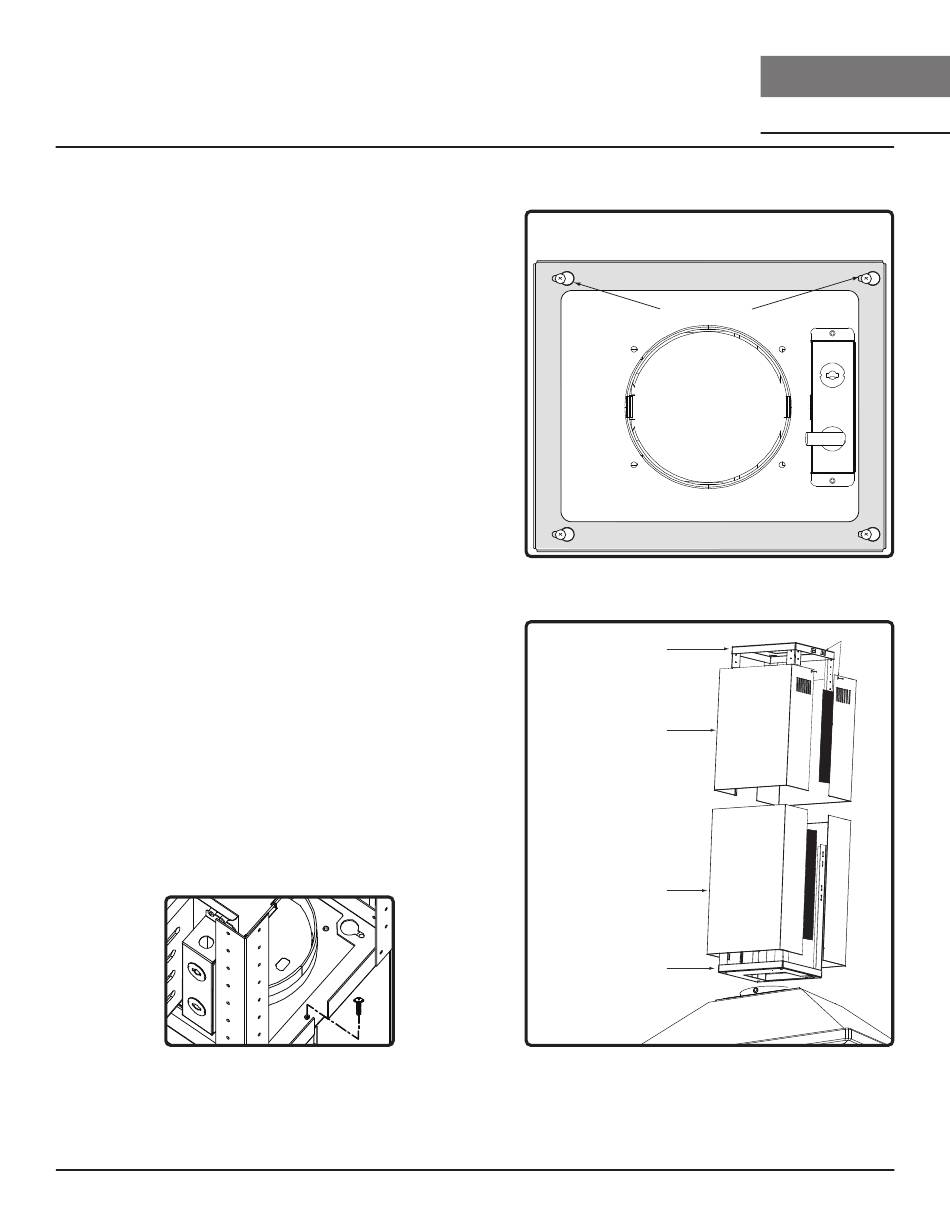

FIG. G
