installation

Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts
with the package contents list. If any part is missing or damaged, do not attempt to assemble, install or operate the
product. Contact customer service for replacement parts.
Ordering # 53801102/Part # DL-6-11-907-SV-D should be installed in 6 in. housings only.
Ordering # 53802102/Part # DL-4-10-907-SV-D should be installed in 4 in. housings only.
CHANGING THE BAffLE RING
□
Use the lever (E) to remove the white baffle ring from the LED light module (A), if the black baffle ring (C) is
preferred.
□ Snap the black baffle ring (C) into the LED light module (A).

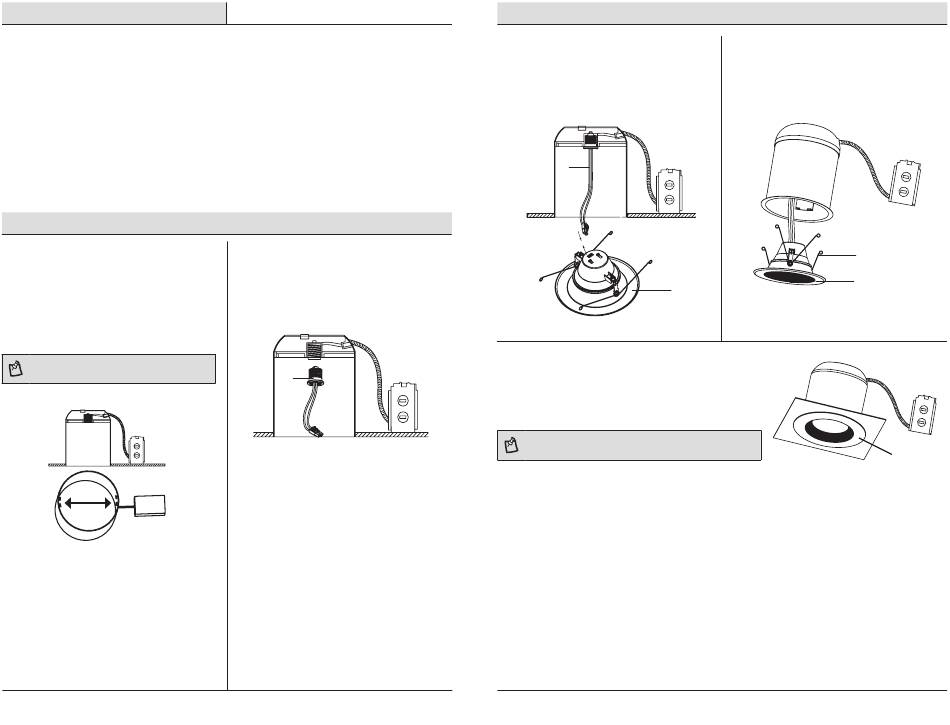

Mount to 6 in. Housing with C-Clamps - Ordering # 53801102
1
Turning off the power
□
Make sure the power is turned off at the source
to the recessed can housing where the fixture
will be installed.
□ Remove the existing bulb and trim, revealing
the socket.
noTe: Stick the replacement label (F) on the inner wall of
the recessed can housing before installation.
C-Clamps
2
Connecting the socket adapter
□
Screw the medium base (E26) socket
adapter (B) into the socket in the recessed can
housing.
B
4
Mount to 6 in. Housing with C-Clamps (continued)
3
Connecting the cables
□
Plug the cable connector on the socket
adapter (B) into the connector on the LED light
module (A).
B
A
5
Pushing the LEd light module into the
recessed can housing
□ Carefully push the LED light module (A) into the recessed can
housing until the trim is flush with the ceiling surface.
noTiCe: Select the preferred color temperature and brightness before
pushing the LED light module (A) into the recessed can housing.
4
Inserting the spring clips into
the recessed can
□
Compress the spring clips on the LED light
module (A) and insert into the C-Clamps on the
inside of the recessed can housing.
Spring Clips
A
A
