HIL 56082 / HIL 56083 - Operators Manual - Trident V14D / V18D

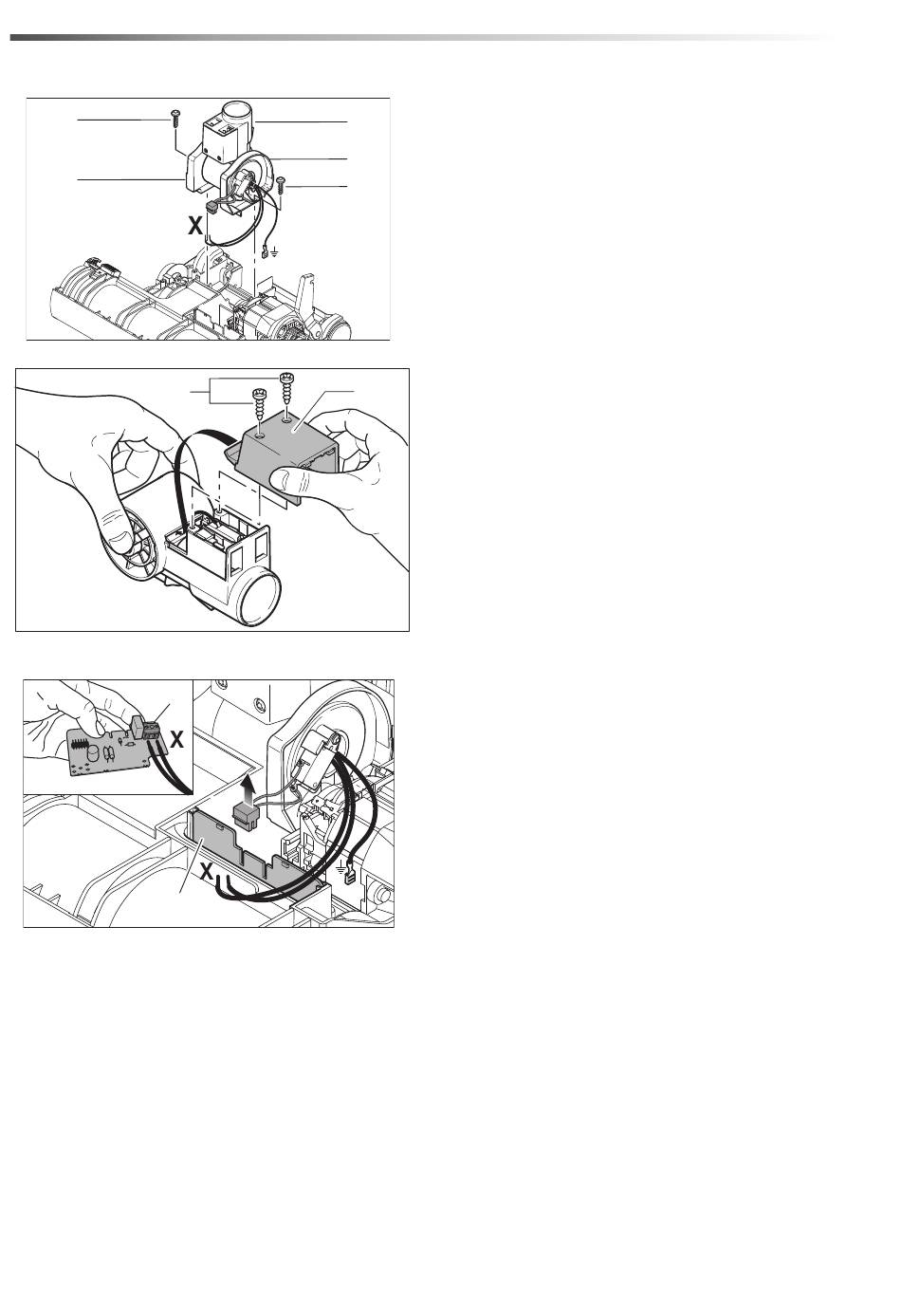

Removing The Swivel Neck

To remove the swivel neck (35) remove the two small
screws (36) from the swivel neck supports (37) then
lift the swivel neck assembly from the chassis.
NOTE: On re-assembly ensure that the wires from
the swivel neck are not trapped when the power
head cover is replaced.

Removing The Swivel Neck Cover

Remove the retaining screw (38), slide the cover (39)
downwards then lift out.
NOTE: On re-assembly check that the leads do not
become trapped.

Changing The Electronic Controller

Disconnect the lead from the motor. Lift the controller
(34) upwards from the motor. Lift the controller
upwards from the swivel neck.
