4 | Assembly / Mounting
Check the LED luminaire before installation to ensure it is complete and shows no signs of damage. Do not use the
luminaire or accessories if they are damaged, as there is a risk of injury.
The LED luminaire comes fully assembled. The LED luminaire comes fully assembled. The luminaire is attached via the
two included luminaire holder sets
Spring clip, steel galvanized, pair
Spring clip with magnet, pair
Luminaire holder set (spare part)

5 | Connection

Suitable connection material, cables and accessories can be found in the accessory range of LED2WORK.
PIN assignment of the M12 connector is as follows:
PIN allocation
PIN 1 = 24V DC
PIN 2 = 24V DC
PIN 3 = GND
PIN 4 = 24V DC
PIN 5 = not used
10 | BA SIGNALED II RGB . BA 04/2022
2 3
and . As option there are this mounting accessories:
When mounting the luminaire, make sure that the luminaire is fastened securely and
stably. If the luminaire falls down, its weight poses a risk of injury!

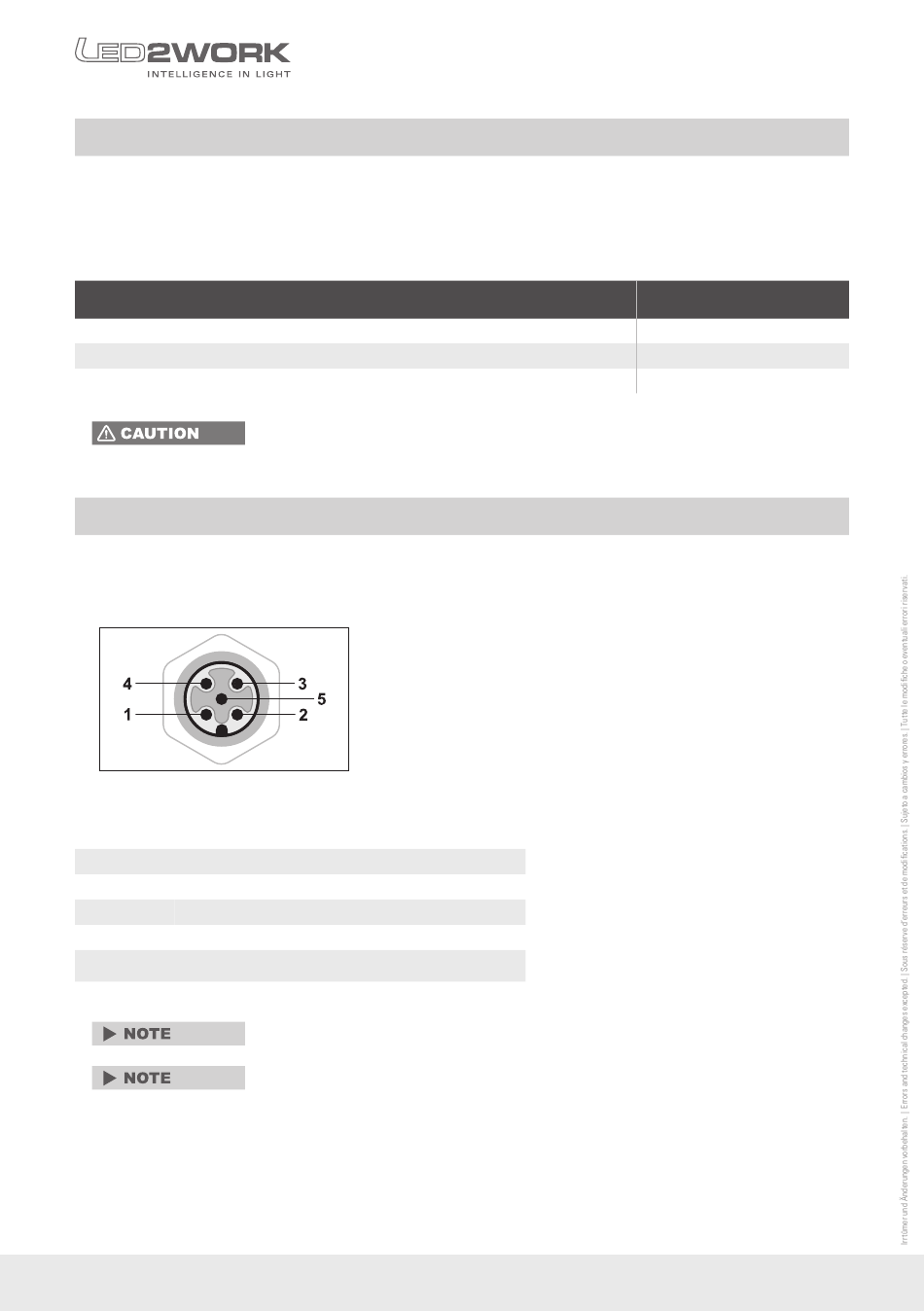

Schematic drawing of M12 plug
LED colour: green
LED colour: blue
LED colour: red
Further colours can be displayed by gating two or three PINs simultaneously. Get in touch
with us for more information.
The luminaire is not equipped with a ON/OFF switch. Usually you switch the luminaire ON
or OFF via external switches of machines or systems.
Product no.
210200-07
210200-08
210200-18
