Tap the following icons to adjust the settings as indicated below.
Frequency (512 Hz, 640 Hz, 50/60 Hz passave, 33 KHz active/passive)
Auto shut-off (10 min / 20 min / 30 min / never)
Headlights (no / off)
Unit of measure (English / Metric)
Volume (off / half / on)
Depth (single measurement / average – multi measurement)
Return to horizontal display (below)
7.

On Screen Navigation

NOTE: The following screen navigations will ONLY occur when the inspection device is powered
up.
When the ROSCOPE 1000/i2000 inspection device is powered on, the first screen that is displayed
is referred to as the splash screen (Figure 8). This screen tells you the device is booting up. Once
the product is fully powered up, the screen will automatically switch to the live screen.

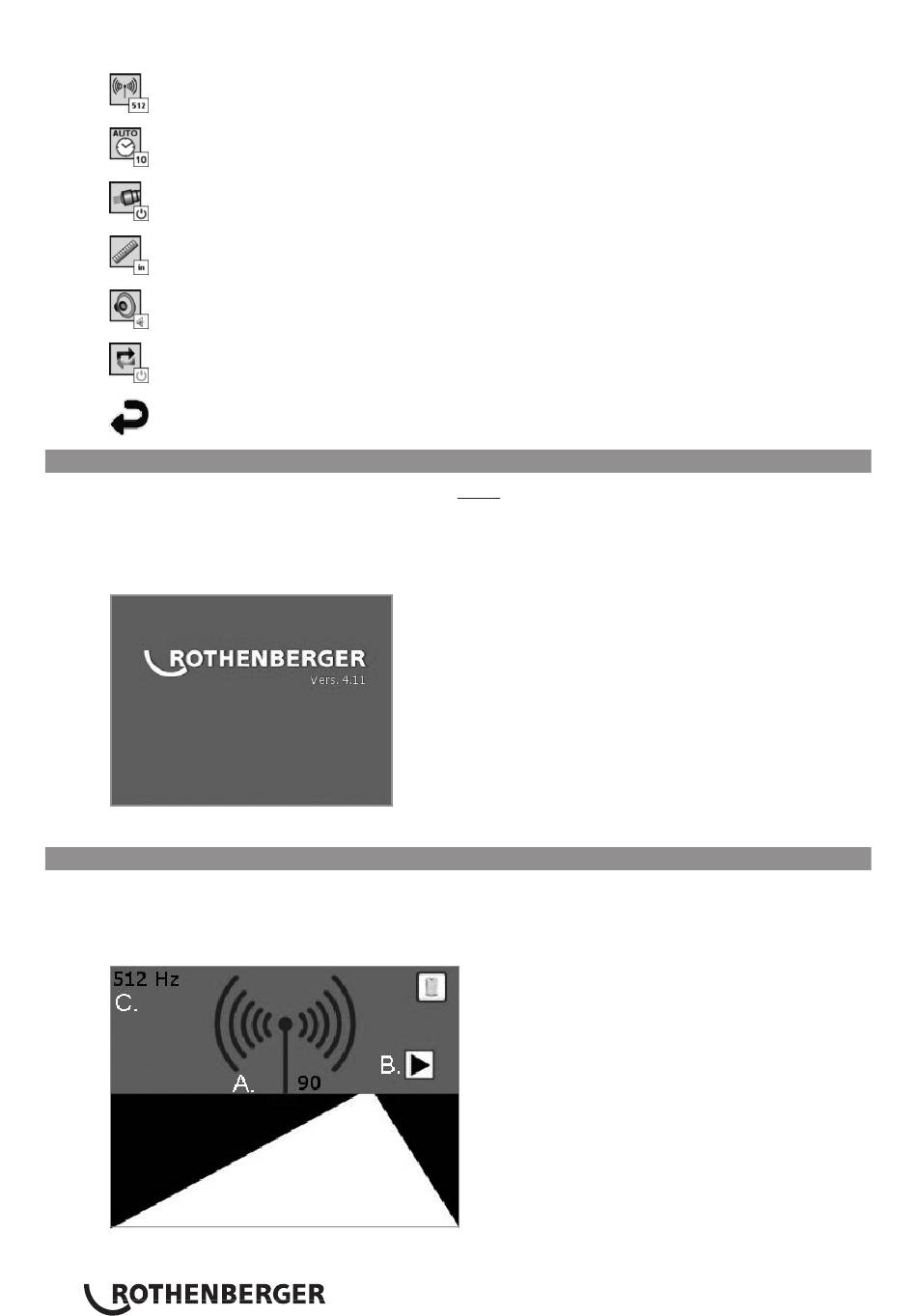

Figure 8 - Splash Screen
8.

Live Screen - Line Detection (ROSCOPE 1000/i2000 w/ ROLOC PLUS)

Simply follow the indicator arrows (left / right) and walk in the direction of the path leading to the
horizon, as though you were walking on the path itself. Watch as the signal strength increases by
both the numeric indicator, as well as the antenna imitter waves. Also note the audible indicator
as you get closer to the transmitter / SONDE (which also has a volume control).
Figure 9 – Live Screen
20
A. Signal strength
B. Indicator arrows
C. SONDE Frequency
