Navigation Buttons; On-Screen Icons / Settings And Navigation; Locating Screen Display; Tools / Menu - Rothenberger ROLOC PLUS Instructions D'utilisation

5.

Navigation Buttons

6.

On-Screen Icons / Settings and Navigation

6.1

Locating Screen Display

ON SCREEN ICONS

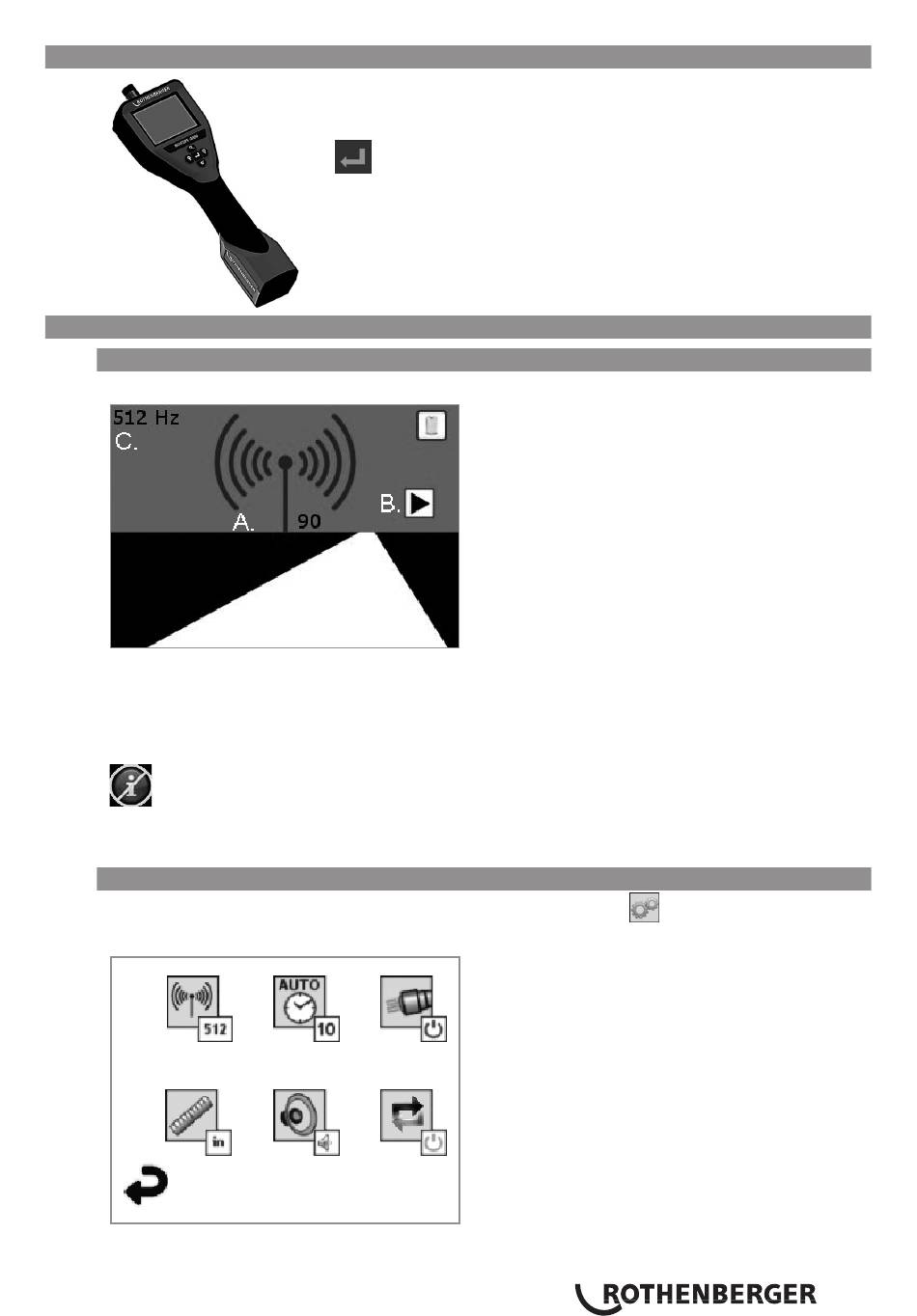

Figure 6 – Screen display in detection mode
A. Signal strength (numbers and emitter waves)
B. Indicator arrows
C. Probe frequency
No information available:
User may encounter this reading if emitter/SONDE is below or beyond range of locator (0,6 –
1,8m).
6.2

Tools / Menu

To change settings you need to tap the touch screen – a tools icon
left corner of the screen. Tap the tools icon and the following screen will open up.
Figure 7 – Tools menu
Measurement of depth
ENGLISH
will appear in the lower
