PROEM PEM2SR Manuel Installateur page 9

English 2 ,

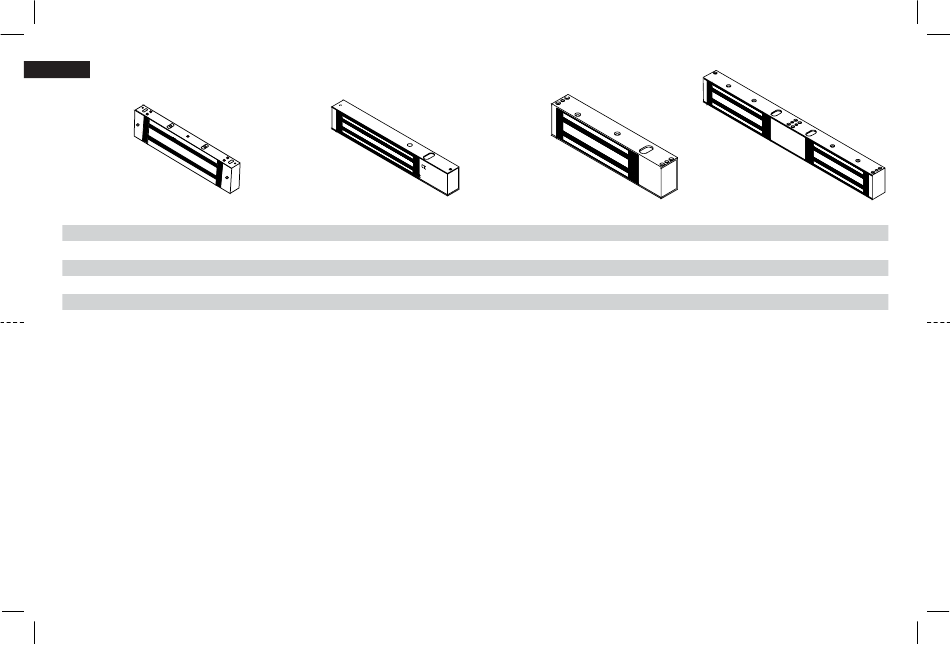

200*35*20 mm
PEM2SR
Force 180 Kg
12/24 Vdc
Voltage
350/175 mA
Current
Contact reed
Signaling
Accessories AMZ2 - UBGP2
Electrical Installation
• The power supply of the lock must be Vdc regulated.
• The voltage at the terminals of the lock must be 12 Vdc or 24 Vdc minimum.
It is recommended that the actual voltage should actually be 10 % higher.
• The power supply must be installed within 2 meters from the lock.
• If the previous rule can not be applied, the cross-section of the connection wires should
be calculated according to the distance between the power supply and the lock.
Apparent Mount Electromagnetic Locks
248*45*26 mm
PEM3S PEM3SR
300 Kg
12/24 Vdc
500/250 mA
No Contact reed + Led
AMA3, AML3, AMZ3/5, AME3, UBGP3/5, UBGV3/5, AMB12, AMB16, AMBC
OUR INSTALLATION RECOMMENDATIONS
266*67*40 mm
PEM5S PEM5SR
530 kg
12/24 Vdc
500/250 mA
No Contact reed + Led
AMA5, AML5, AMZ3/5, UBGP3/5, UBGV3/5, AMB12, AMB16, AMBC
Mechanical Installation
• Always mount magnet on safe side of the door.
• Always use the original screws that do not affect the magnetic holding force.
These screws are treated against corrosion.
• Use the enclosed assembly template to ensure the perfect alignment of the lock and
the armature-plate.
• Follow the assembly instructions for the armature-plate and do not excessively tighten
the central screw to ensure proper flexibility.
532*67*40 mm
PEM10S PEM10SR
2 x 530 kg
12/24 Vdc
2 x 500 / 2 x 250 mA
No Contact reed + Led
