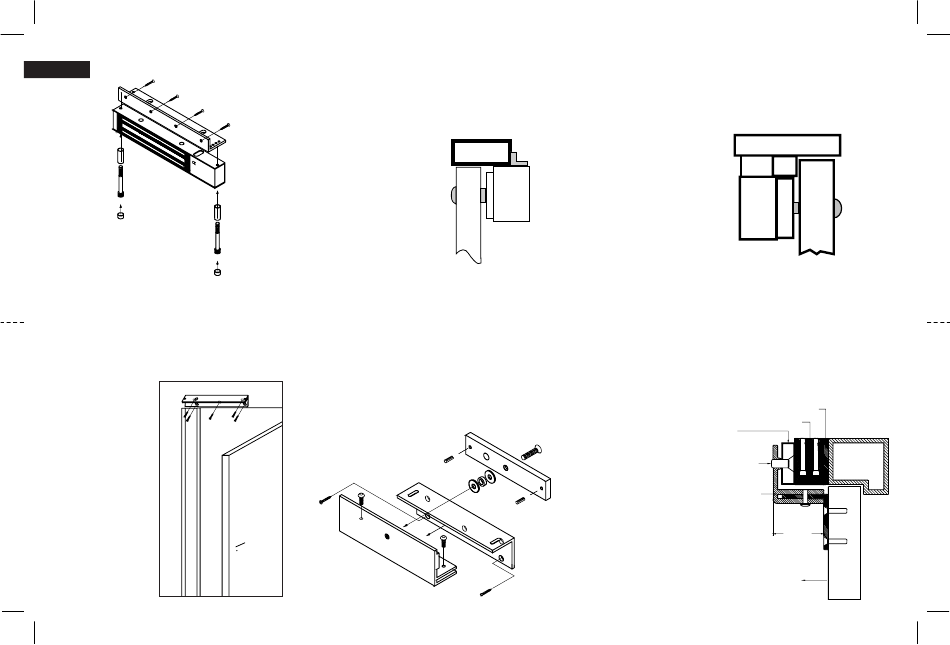

PROEM PEM2SR Manuel Installateur page 11

English 4 ,
L bracket
AML3 - AML5 L bracket square to compensate the too feeble
dimension of a door frame or of an impost.
Stage 1
Placing
and setting
the AML support
on the door
frame above
the door.
Fix the magnet on
the AML bracket.
"PUSH" DOOR MOUNTING ACCESSORIES
AMBC bracket
Door frame
Door leaf
AMBC A square narrower than the AML that allows increasing
the too feeble dimension of a door jamb or an impost.
INSTALLATION INSTRUCTIONS FOR A "PULL" DOOR
Stage 2
Mounting the AMZ support
and setting the armature-
plate on the support.
Magnet
Stage 3
Close the door and set
the AMZ support on the
door by making the
magnet strip and the
armature-plate correspond.
AMB12 - AMB16
AMB12 - AMB16 A compensation bar that allows adjusting
the mounting of a magnet strip jutting out.
"L" support
Magnet
Armature-plate
Armature-plate
Door
screw
frame
Support "Z"
Adjustable
Door
leaf
