PROEM PEM2SR Manuel Installateur page 10

English 3 ,

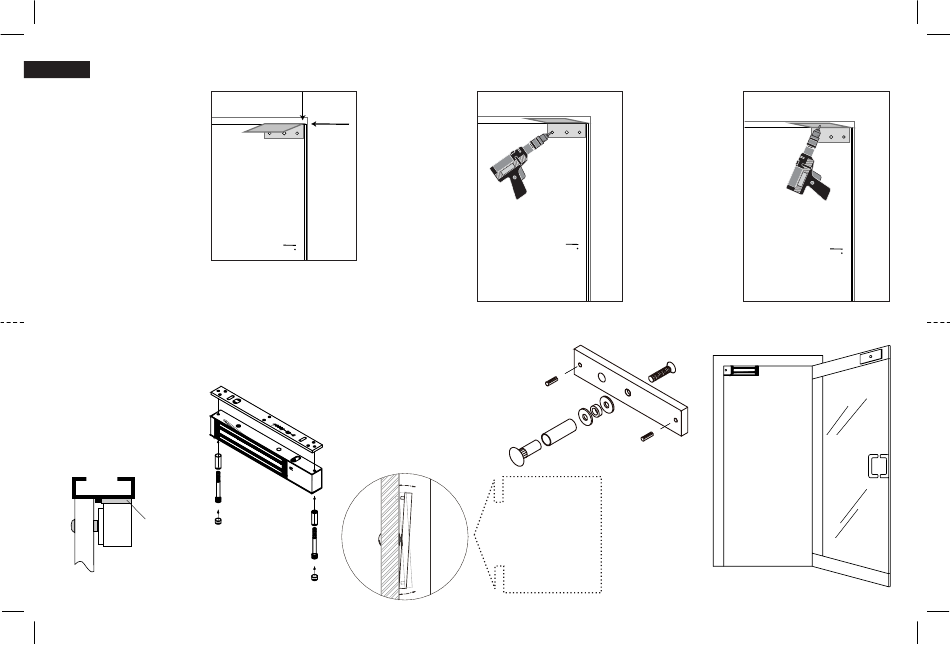

Stage 1
Close the door. Fold the template
along the dotted line with the
text inside. Place the template
complying with the direction.
Align the template's folded part
with the top of the door and
make it slide horizontally toward
the outer top angle of the door
and of the door frame. Fix the
template to the door with adhesive tape.
Stage 4
Set the magnet on the
door frame with the
armature-plate.
Electromagnet
Door Frame
Magnet
Armature-
plate
Tamper proof stopper
Door leaf
INSTALLATION INSTRUCTIONS FOR A "PUSH" DOOR
Stage 2
Drill the holes on
the door accor-
ding to the arma-
ture-plate's tem-
plate.
Stage 5
Fix the armature-plate
Armature-plate
on the door using the
origin screws and acces-
sories.
Brass bushing
Mountingscrew
Stage 3
Drill the holes on
the door frame
according to the
magnet strip's tem-
plate.
Armature-plate screw
Armature-plate
Rubber washer
Door stop
Guiding axis
Bolt
Note:
The armature-plate's
central screw should not be
excessively tightened
so that the armature-plate
remains flexible against
the entire surface of the lock
