PROEM PEM2SR Manuel Installateur page 12

English 5 ,
Jumper
Red Nc
Black
Com.
Green
No
Reed Sw.
PEM2SR
Hollow metal door
Drill an 8 mm hole through
the door. Only on the hexa-
gon head bolt side, enlarge
the hole to 16 mm.

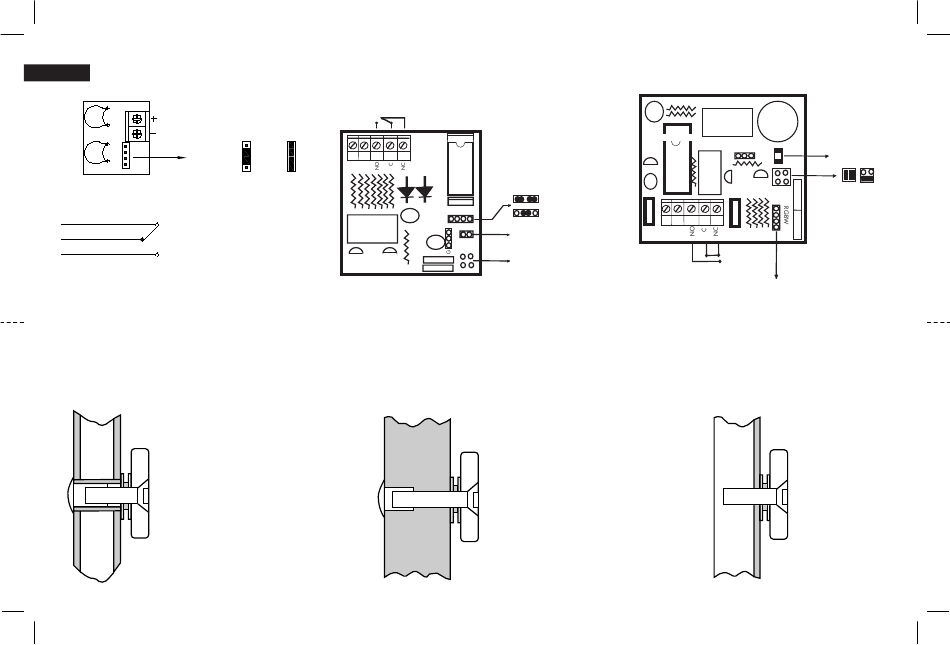

ELECTRICAL CONNECTION INSTRUCTIONS
Contact
Power supply
+ -
1 2
3 4 5
24 VDC 12 VDC
RY1
-
PEM3S - PEM3SR
ARMATURE-PLATE MOUNTING INSTRUCTIONS
IC1
12 VDC
24 VDC
LED
Magnet strip
Solid door
Drill an 8 mm hole
through the door. On
the hexagon head bolt
side, drill a hole of
12.7 mm diameter and
25 mm in depth.
RY1
RBG
LED
IC1
RY2
12VDC
1 2 3 4 5
+ -
Electromagnet
Relay output
(PEM10SR)
PEM5S - PEM5SR - PEM10S - PEM10SR
Metal covered
door
Drill an 6.8 mm hole
and tap to thread
M8-1.25.
24VDC
