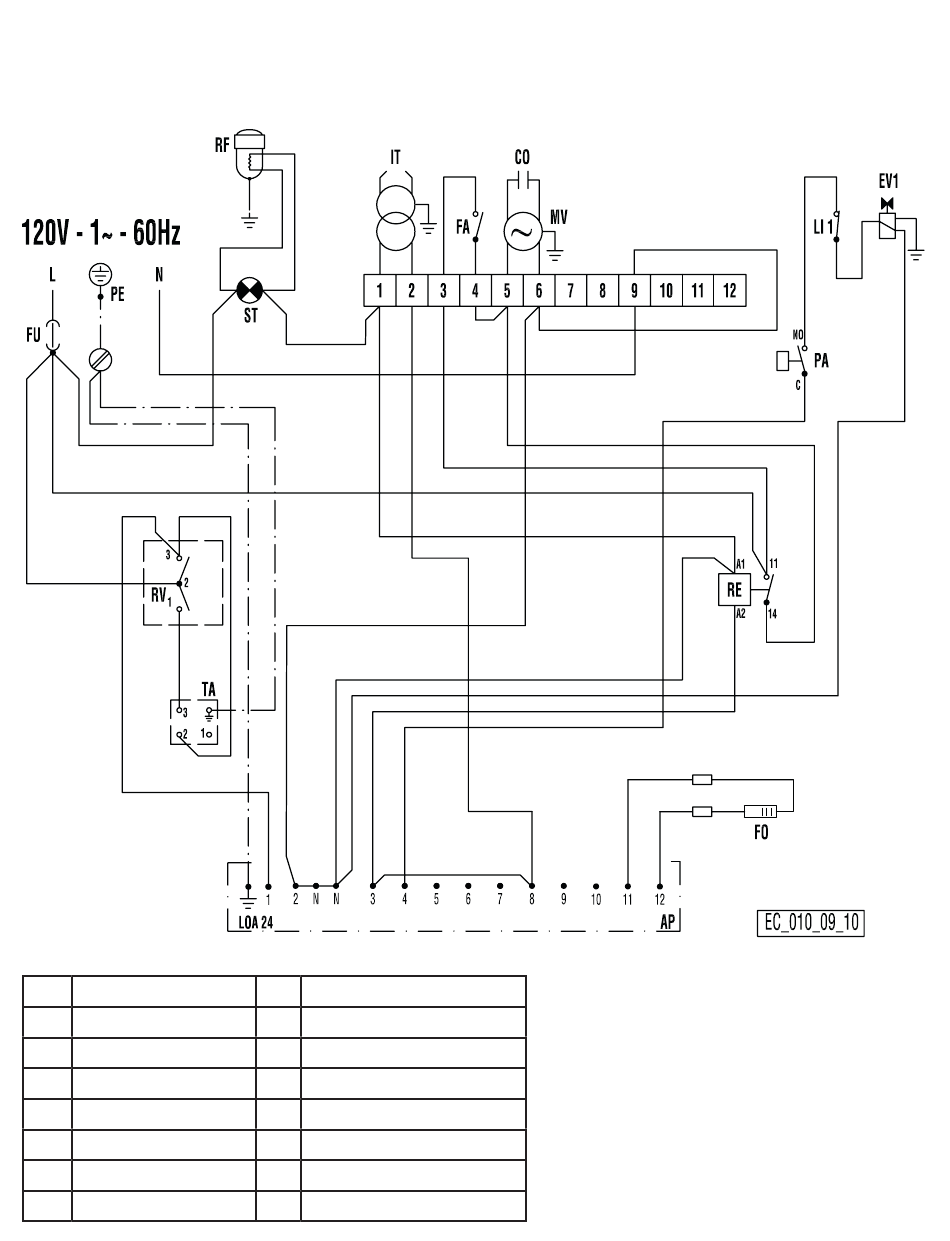

WIRING DIAGRAM
1000ID SERIES MODELS
DRAWING LEGEND
FUSE
FU
TRANSFORMER H.V.
IT
OVERHEAT THERMOSTAT
LV1
SOLENOID VALVE 1°
EV1
PHOTOCELL
FO
CONDENSER
CO
FAN MOTOR
MV
ELECTRIC PILOT
ST
Fuel Fired Forced Air Indirect Construction Heater
CONTROL
RV
ROOM THERMOSTAT
TA
RELAYS
RE
CONTROL BOX
AP
AIR PRESSURE CONTROL
PA
HEATER FILTER
RF
FAN THERMOSTAT
FA
GROUND
PE
7 Operating Instructions and Owner's Manual
