Implantation
46.4.4
Description
Représentation
graphique
Accès
Implantation en mode polaire
Les éléments d'implantation sont une direction d'une station, une distance horizontale et un
déblai/remblai. La plage d'informations est calculée de la position actuelle vers le point à
implanter par rapport à la station.
P0
TPS12_106
<Mode Implant. : Polaire> est configuré dans IMPLANT Configuration, page Général.
Reportez-vous à "46.3 Configuration Implantation".
Reportez-vous à "46.2 Accès au programme Implantation" pour accéder à IMPLANT
Implantation Polaire.
TPS1200
P1
a

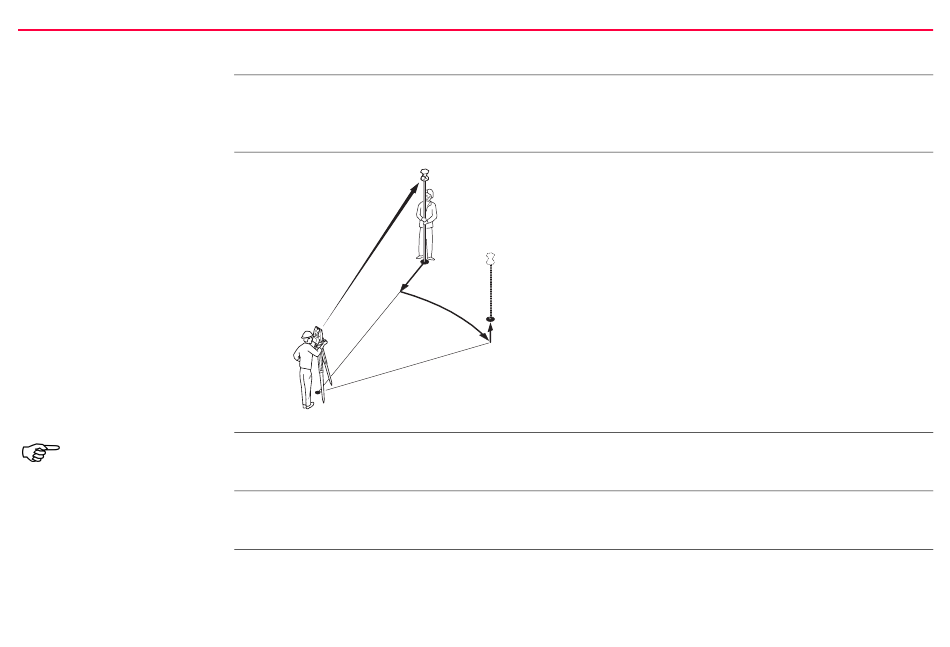

P0 Station
P2
b
P1 Position actuelle
c
P2 Point à implanter
a
b
c
Δ
<
DISTANCE :>
Δ
<
HZ :>
<DESC :> ou <MONT :>
