Using On-Screen Menus
9 RGB B SYSTEM menu
To monitor the signal fed through the RGB/
COMPONENT B connectors, set the RGB or COMP
(component) signal and the INT SYNC (internal sync)
or EXT SYNC (external sync) signal in this menu.
!º REMOTE (RS-232C) menu
Select one out of following three modes.
REMOTE OFF:
You can adjust settings and controls by the buttons and
controls on the front panel.
RS-232C connector does not function.
REMOTE ONLY:
You can adjust settings and controls through the
RS-232C connector.
Buttons and controls on the front panel, except the
menu operation ones, do not function.
REMOTE & LOCAL:
You can adjust settings and controls both through the
RS-232C connector and the front panel buttons.
Controls on the front panel do not function.
!¡ LANGUAGE menu
You can select the language used for on-screen menus
from the following five languages (English, German,
French, Italian, Spanish).
!™ AUTO ADJUST screen
Select the color bar signal (full, SMPTE, EIA) and press
the ENTER (SELECT) button to start automatic
adjustment for CHROMA and PHASE. For these
adjustments to be valid, you must select ON in
CHROMA SET UP menu (7).
User Service Mode
The user service mode is useful when adjusting the settings
and controls except for the above.

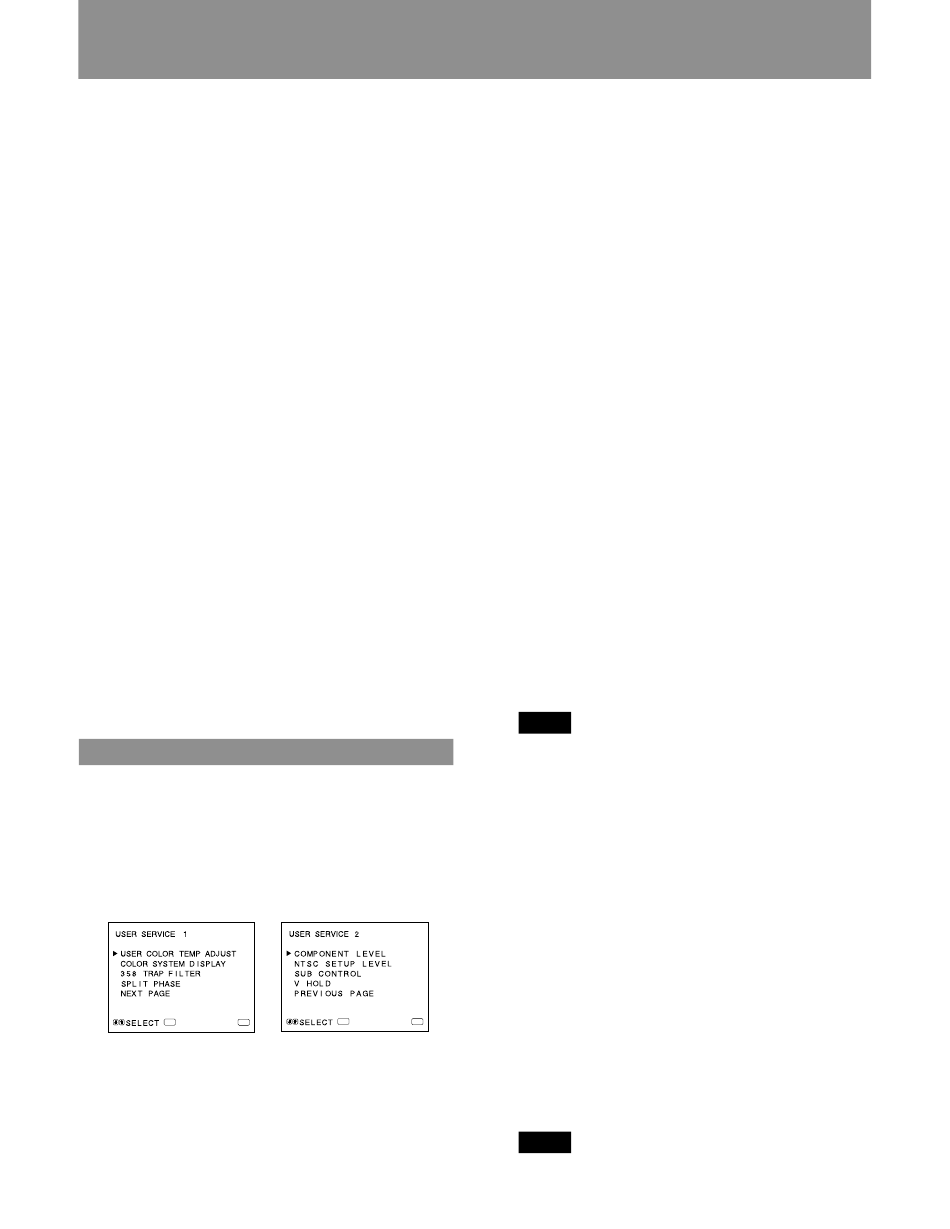

To enter the user service mode, press and hold the MENU
(EXIT) button until the following USER SERVICE 1
appears.
To move to the second page of the mode, select "NEXT
PAGE" and to return to the first page of the menu, select
"PREVIOUS PAGE".
ENTER MENU
10
!£ USER COLOR TEMP ADJUST menu
[RGB-EXT SYNC]
!¢ COLOR SYSTEM DISPLAY menu
!∞ 358 TRAP FILTER menu
[REMOTE OFF]
!§ SPLIT PHASE menu
[ENGLISH]
!¶ COMPONENT LEVEL menu
!• NTSC SETUP LEVEL menu
!ª SUB CONTROL screen
ENTER
MENU
@º V HOLD screen
The value of adjustment in this menu works only when
"USER" is selected in the COLOR TEMP SELECT
menu (2).
ADJUST GAIN:
Adjusts the color balance (gain) of the USER mode.
ADJUST BIAS:
Adjusts the color balance (bias) of the USER mode.
COLOR TEMP RANGE:
When you adjust the color temperature in the USER
mode, select a color temperature range before
adjusting ADJUST GAIN and ADJUST BIAS. If the
adjusted color temperature is between 3200K and
5000K, select "3200K-5000K." If the adjusted color
temperature is between 5000K and 10000K, select
"5000K-10000K."
Select the color system display mode. In AUTO, the
kind of color system being used appears on the screen
each time you change the signal input.
Color spill or color noise may be eliminated if you
select ON (NTSC signal only). Normally set it to OFF.
When the SPLIT function is activated, if the lower side
picture (the signal fed through the RGB/COMPONENT
B input connectors) has some discrepancy of location
with the upper side picture, adjust the SPLIT PHASE
menu.
Each time you press the >(+) button, the lower side
picture moves left.
Note
When the adjustment is made in the menu, the skew
error will occur on the top of the lower side picture.
Select the component level from among three modes.
N10/SMPTE: for 100/0/100/0 signal
BETA 7.5: for 100/7.5/75/7.5 signal
BETA 0: for 100/0/75/0 signal
Select the NTSC setup level from two modes. The 7.5
setup level is mainly used in north America. The 0 setup
level is mainly used in Japan.
You can finely adjust the controls on the front panel.
CONTRAST, PHASE, CHROMA and BRIGHT
controls have clicks at the center of their adjustment
range. You can adjust the setting of the click position
with this feature.
Adjust the vertical hold if the picture rolls vertically.
Note
If the rolling of the picture prevents you from watching
the screen, select an input that has nothing connected.
[5000K-10000K]
[AUTO]
[OFF]
[BETA 7.5]
[7.5]
