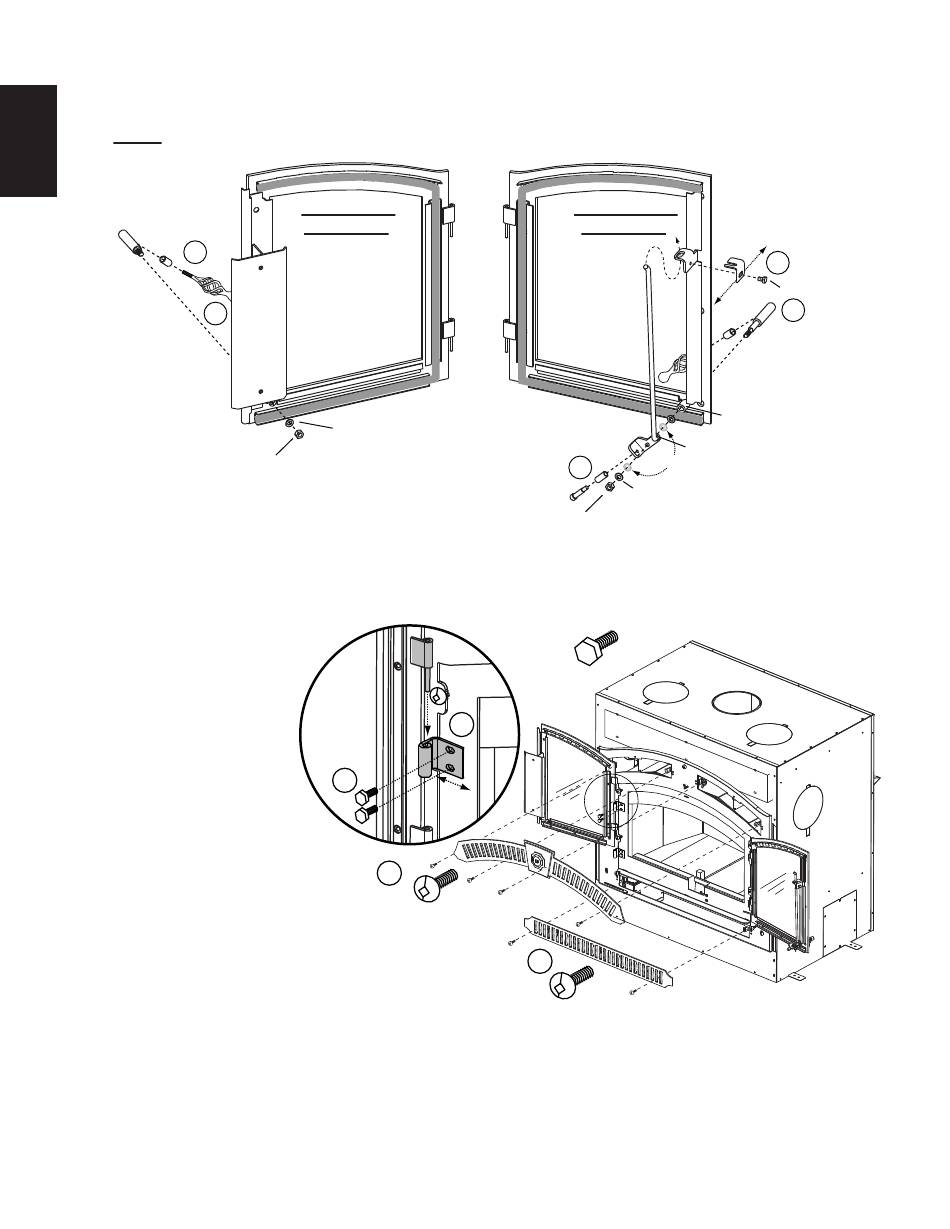

6.3.3 H336-WI DOOR ASSEMBLY

Install hardware as shown in the order of 1 through 4.
NOTE: Doors may need to be adjusted to ensure air tightness.
EN
4 **
** The fi nal angle of the left door handle should mirror the right door handle in the closed position. Tighten the
nut to secure the handle at the desired angle.

6.3.4 WI DOOR AND TRIM INSTALLATION

A. Install hinges to fi rebox front.
(Later adjustment may
be required - see 4).
B. Install the upper
grill.
C. Install the lower
grill.
D. Install doors.
Loosen the hinge
screws and move
the hinge in or out
for door alignment
Bottom Latch
Adjustment:
For desired
tightness, place
appropriate
quantity of
washers
between latch
and door. See "H336-WI DOOR ASSEMBLY" section. Washers placed in this position will relax or
loosen the door seal.
Top Door Adjustment:
Adjust to tighten the top of the door using the top door adjustment bracket. See "H336-WI DOOR
ASSEMBLY" section.
W415-0711 / D / 05.09.13
LEFT DOOR
ASSEMBLY
1
LOCK WASHER
NUT
1
2
UPPER GRILL
RIGHT DOOR
ASSEMBLY
3
NUT
HINGES
4
X 4
3
LOWER GRILL X 2
TOP DOOR
ADJUSTMENT
2
SCREW
1
DOOR
HANDLE PIN
(FLAT SIDE OF "D"
SHAPE INWARDS)
DOOR BUSHING
BOTTOM LATCH
ADJUSTMENT
FLAT
WASHER
X 8
