30
99
30
99
A
C
1080 mm
43,5 mm
163,5 mm
43,5 mm
163,5 mm
001CK0010-14FR-15FR 24810650 05-08-14_EN
135
1080 mm
94°
94°
H= 165 cm
(RECOMMENDED
500 mm
HEIGHT)
500 mm
001CS2PLCO
6.5
135
6.5
3.5
3.5

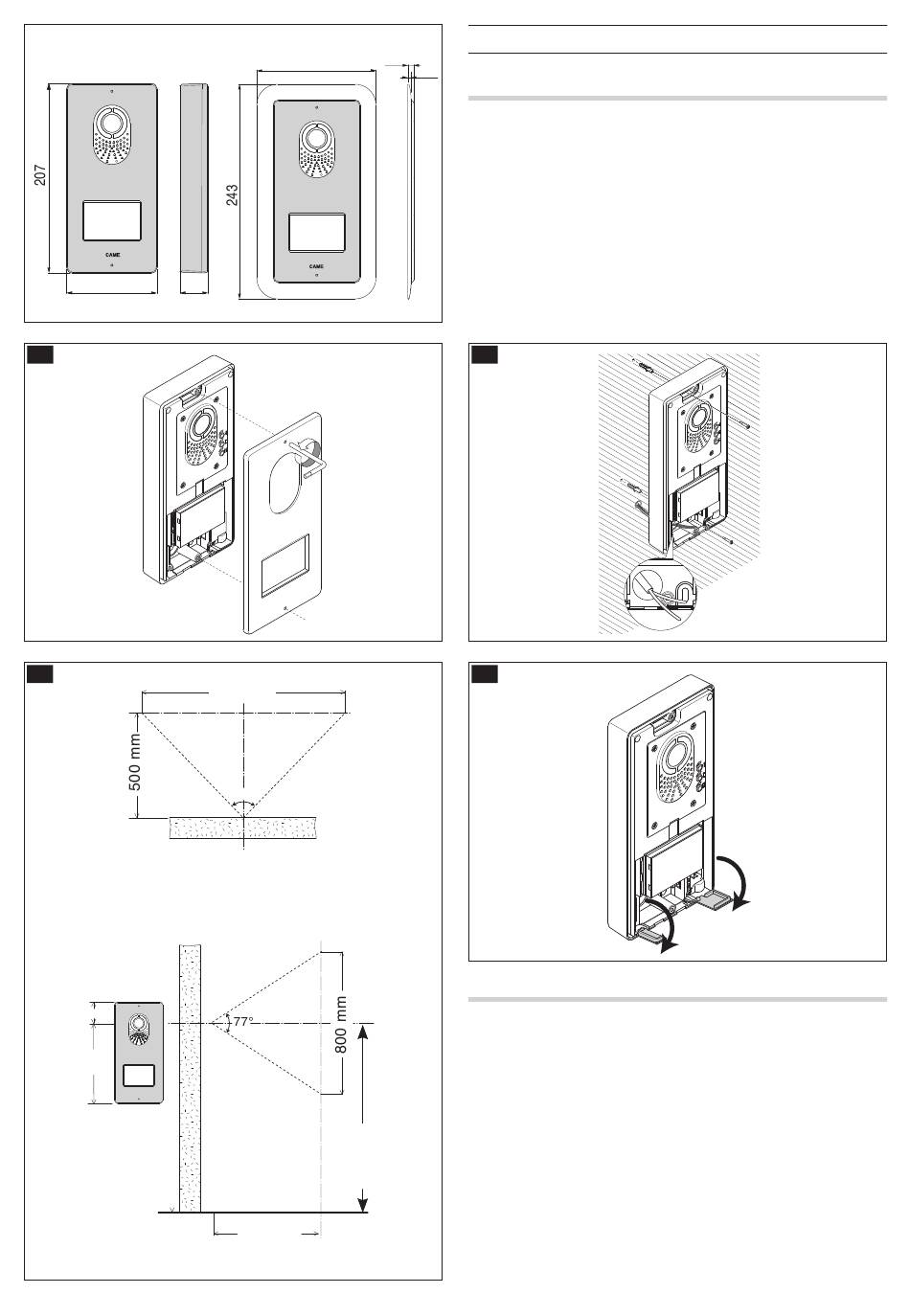

Wall Mounting
With the allen wrench unscrew the blocking screws and remove the plate
A. Fix the given plugs and screw the entry panel B at the desired height
considering the position of the lens of the camera C.
Run the hose with the system conductors B.
Extract the plastic terminal cover and wire the connections D.
Once all the connections have been made, re-insert the terminal covers.
For the installation of the accessories refer to the chapter "Button module in-
stallation". Perform the programming and adjustment operations of the entry
panel as described to the chapter "Programming". Install the front plate A.
B
D
Recessed Installation (optional)
Install the recessed box at the desired height considering the position of
the lens of the camera C, but in advance, run the hose with the system
conductors through one of the breaking points F a.
7
