INSTALLATION

1

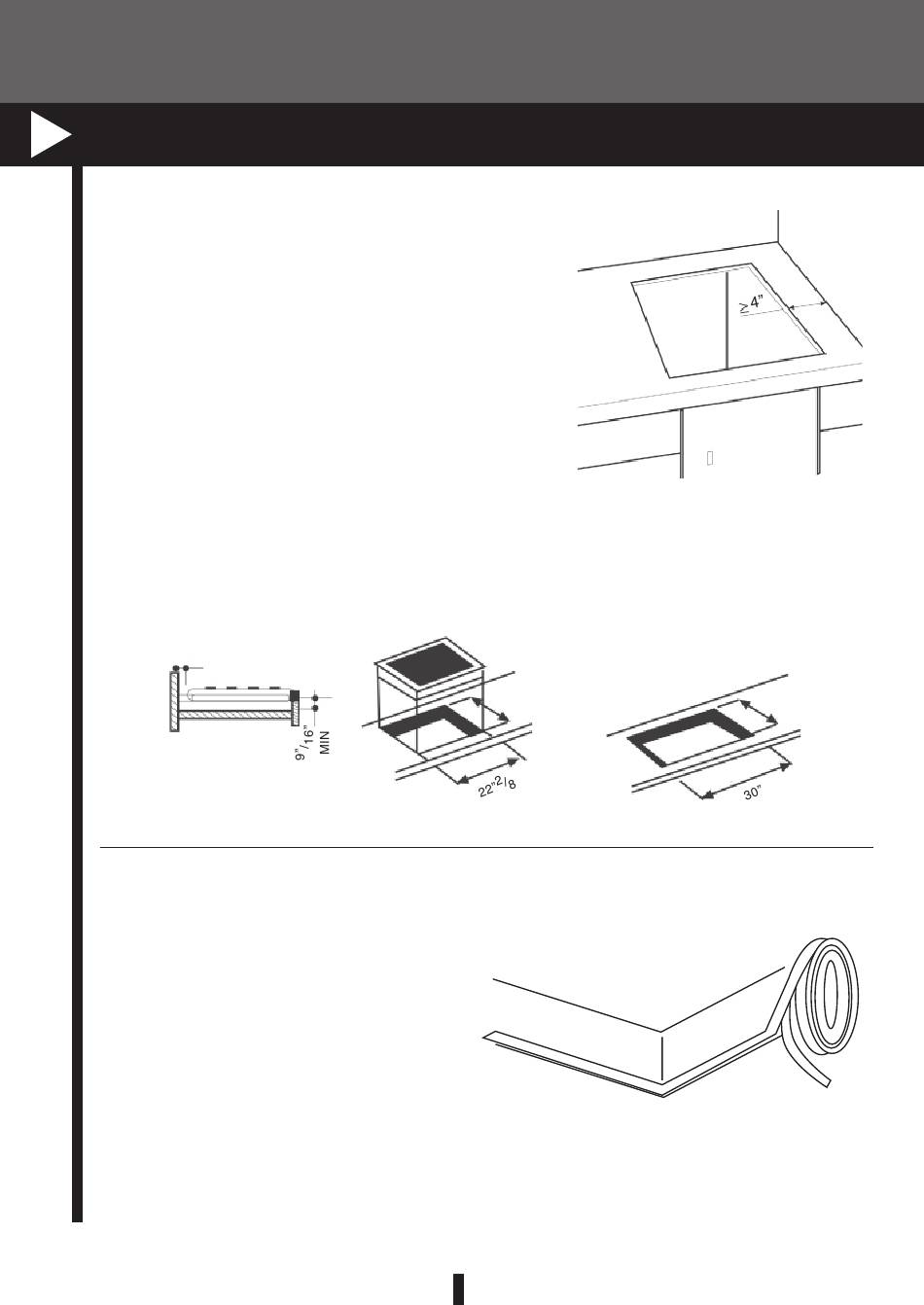

Cut out a piece of the worktop following the
instructions on the template that comes with
the cooktop.
"X" type apparatus for degree of fire
protection.
Minimum distance between hole and wall
must be 4 inch (100 m/m).
Ventillation diagram
Minimun distance
2"
MIN
Place the cooktop face down on a
2
table. Remove the backing paper and
affix the sealing gasket all round the
perimeter (fig.1).
NOTE: DO NOT USE NON-REMOVABLE ELEMENTS WITH SILICONE.
VFA-70 S Cut Out
19" 1 / 2
18
MODEL: 30"
VFA-78 S Cut Out
19" 1 / 2
fig.1
