3 – Mounting the core drill on the support
To use the core drill, read and follow to the letter the safety instructions
indicated in the core drill manual.

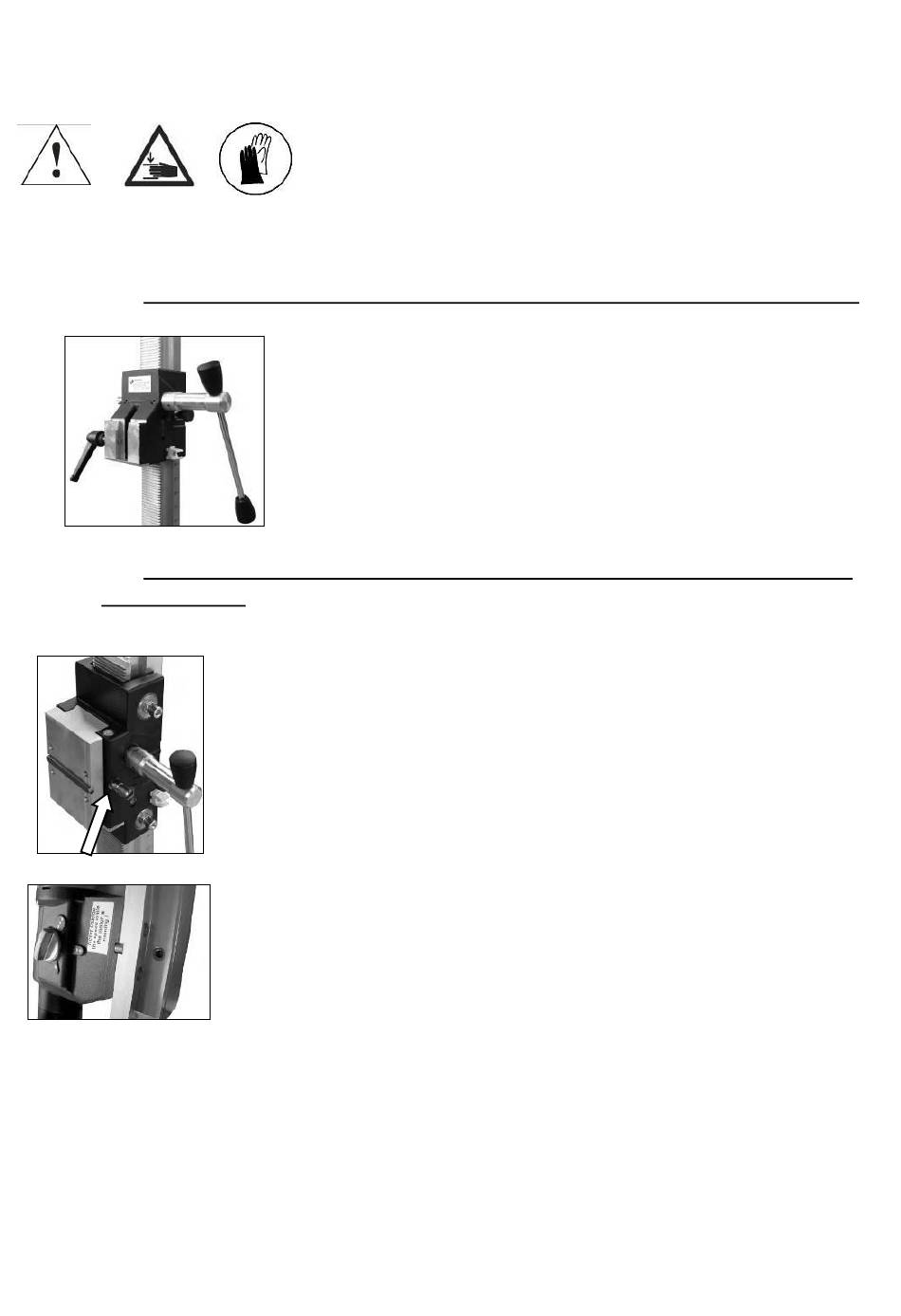

A – Assembling the Virax core drill 050116 on the support stand 050111
B – Assembling the Virax core drills 050126 and 050136 on the support
stand 050121
4 – Insert the core drill with the holding plate into the support stand and tighten it
with the control lever.
Be very careful when positioning the machine!
There is a risk of injury. Wear protective gloves!
The attachment is a quick prism attachment.
1 – Slide the Virax core drill into the housing
2 – Tighten using the side tightening lever.
1 – Move the guidance support upwards using the control
lever until it locks.
2 – Use the control lever to loosen the holding plate. Remove
the plate.
3 – Insert the 4 M8 x 20 socket head screws (delivered with
the support stand) to secure the holding plate to the core drill.
The coupling is on the same side as the core drill's speed
selector. Tighten the 4 screws.
