A D A P T I N G F O R T H E D O C T O R / T E C H N I C I A N

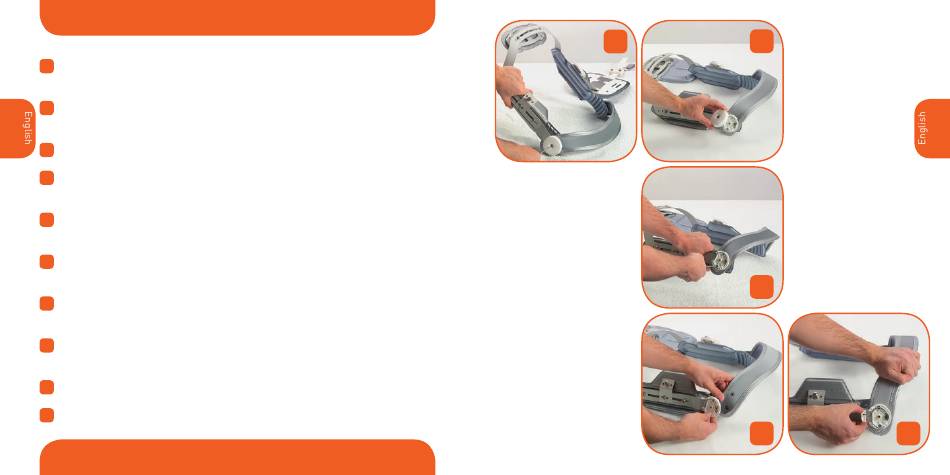

INSTRUCTIONS FOR REPLACING THE PELVIC BAND
1
Remove the plastic caps at the ends of the pelvic band by removing the
respective screws (fig. A and B).
2
Pull out the screws at both ends that can be found underneath the caps (fig. C)
and remove the pelvic band (fig. D).
3
Attach the new pelvic band and fix using the previously removed screws (fig. C)
4
Replace the caps and fix using the appropriate fixing screws (fig. A).
INSTRUCTIONS FOR FIXING THE PELVIC BAND
5
If required, the pelvic band, which is supplied movable, can be blocked
using the mechanism of the band itself as shown in the following.
6
Remove the plastic caps at the ends of the pelvic band by removing
the respective screws (fig. A snd B).
7
Select the wedges with the desired angle (the angle has to be the same
on both sides.)
8
Move the pelvic band using one hand. With the other hand insert the wedges
in the respective receptacles on the mechanism below the caps (fig. E).
9
Replace the caps and fix using the appropriate fixing screws (fig. A).
10
Proceed in the same way for the opposite mechanism.
A
B
C
D
E
