(>9.15) ASSEMBLY AND PREPARATION

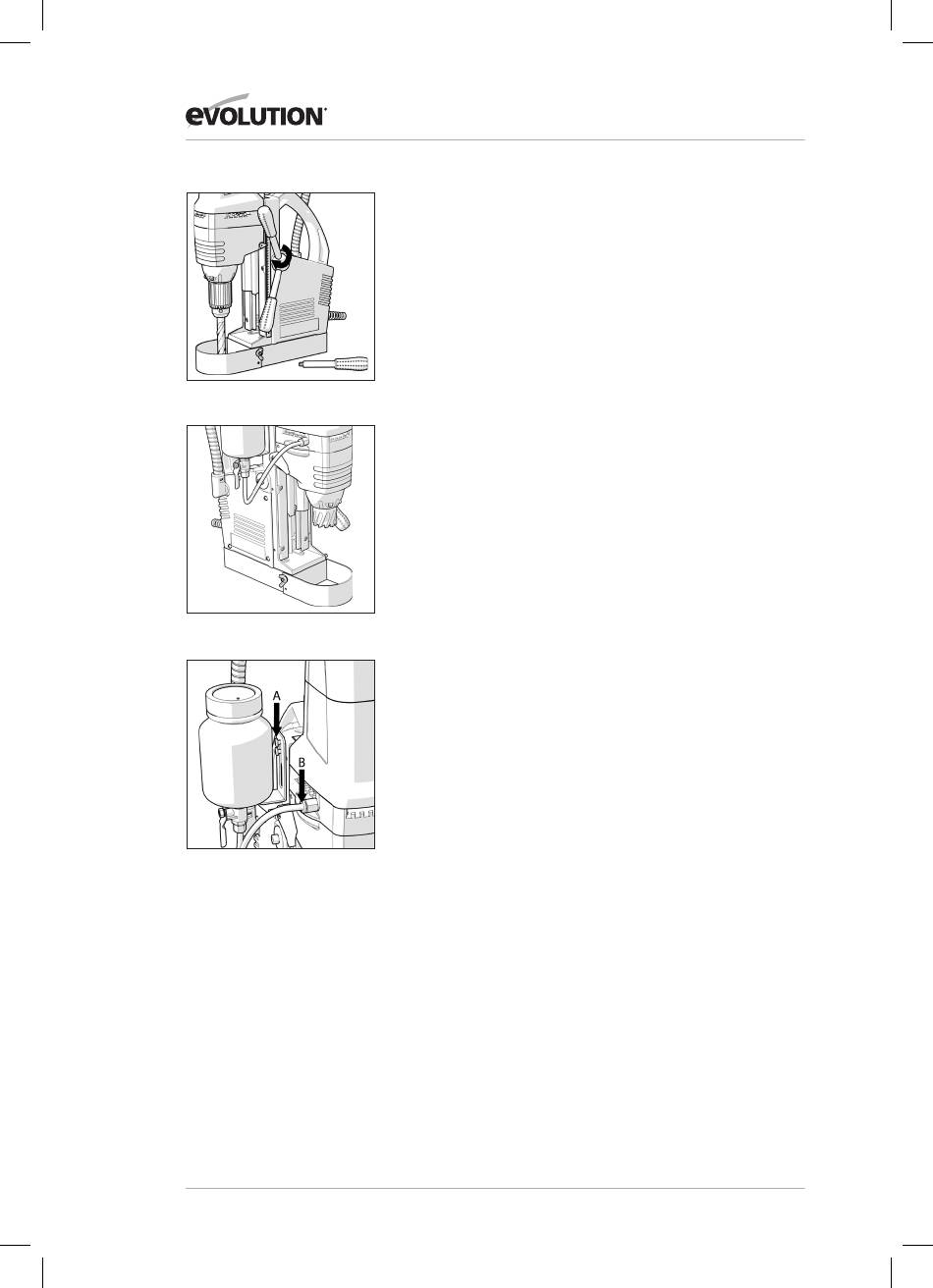

Fig. 1
Fig. 2
Fig. 3
WARNING: This machine must not be connected to a
power source until all assembly and preparation has
been completed and a safety check carried out. Evolution
Mag Drills can only to be used on non-coated Mild Steel. Ensure
the surface is free of paint and loose rust before attempting to
drill. (<9.15)
Assembly
Remove the machine from the case and check that all
accessories are present and correct. Place the machine onto a
clean, sturdy work surface.
• Attach the three handles into the spindle hub ensuring that
they are fully seated. (Fig. 1)
• Attach the Safety Guard and secure in place using the
supplied fixing screws. (Fig. 2)
• The coolant system should be fastened to the machine
using the ø 6 mm socket headed screw inserted into the
threaded hole located at the top left hand side of the
machines carriage. (Fig. 3 a)
• Screw the lubrication quick connector into the threaded
hole located just below the motor housing on the left hand
side of the machine. (Fig. 3b)
• Insert the free end of the delivery hose into the quick connector.
(9.16)
Note: To release the delivery tube from the quick connector
push the collar towards the brass union and withdraw the
delivery tube.
(9.17)
Note: For some operations it may be convenient to remove
the coolant tank and supply tube, and to use alternative
coolant application methods.
(>9.18)
TESTING
WARNING: This machine has CLASS 1 insulation and MUST
be earthed. Any power socket that this machine is connected
to must be grounded to earth. Ensure that both operating
switches are in the 'OFF' position before connecting the power
cord to the socket.
WARNING: The power cord assembly is a custom terminated
one. Replacement should only be carried out by a qualified
technician. Only use replacement parts recommended by
Evolution Power Tools.
