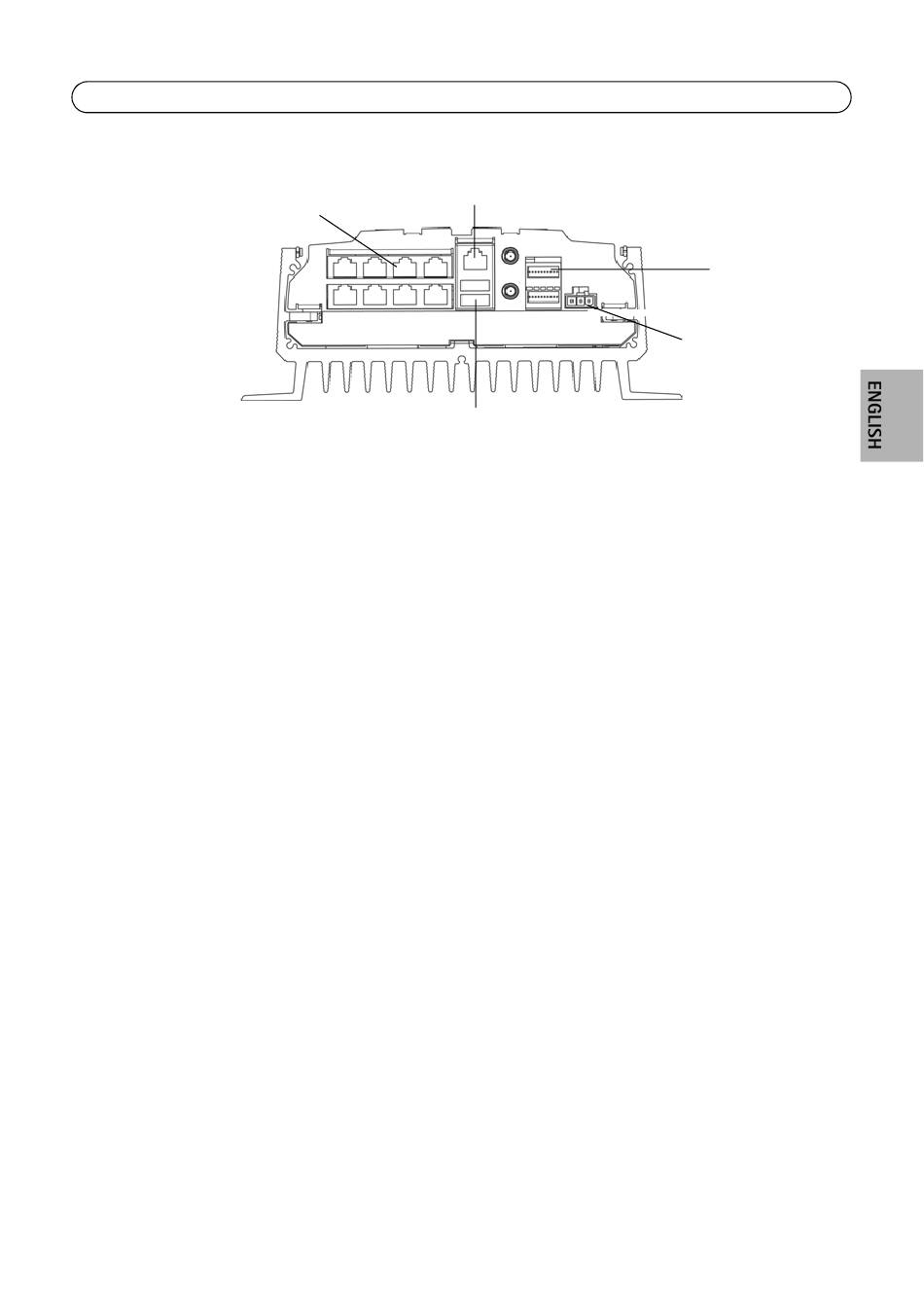

Connect the cables

1 Gbit network port
8 x PoE network connectors
I/O connector
Power connector
2 USB 2.0 ports
1. Install up to 8 Axis network cameras according to their Installation Guides.
2. Connect cameras to AXIS 8108-R via RJ-45 PoE connectors, which will provide both power and
network connection to each camera.
3. Optionally connect external input/output devices.
4. Connect the supplied power cable to the power block.
