Install the hardware

Before you begin

There are a few considerations before installing the AXIS Q8108-R.
The AXIS Q8108-R casing is designed to mount directly on any surface using a minimum of
4 screws appropriate for the surface type
The operating temperature range is dependent on the Hard Disk
Install in an open area allowing for 10mm of space on all sides for cooling and ventilation
Ensure there is proper fuse protection: 12V DC (10A) or 24V DC (5 A)

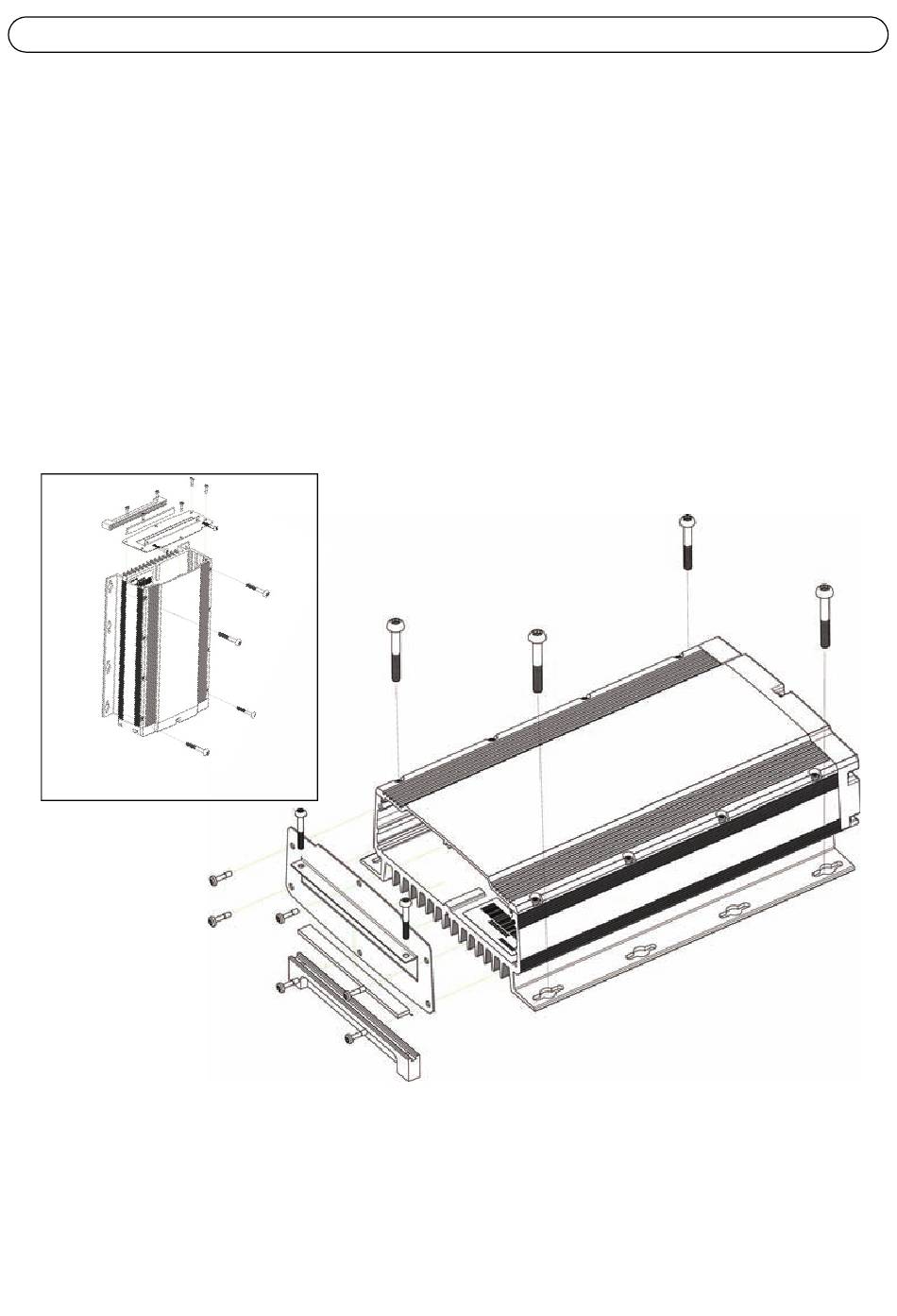

1. Use at least 4 screws appropriate for the surface. The AXIS Q8108-R is designed to install in any
position, but if it is to be installed in a vertical position the cable shelf should be pointing up for
optimal heat dissipation.
Cables should point up when installing
in the verical position
2. Thread the cables through cable shelf. For an IP65 rating use Cable Sealing (not included).
3. Connect all appropriate cables. See Connect the cables, on page 9.
4. Attach front cable shelf to AXIS Q8108-R with the four provided screws.
5. Tighten shelf to clamp cables. This prevents connector damage during operation.
