Zephyr Anzio Island ZAZ-M90DS Guide D'utilisation, D'entretien Et D'installation page 31

ZEPHYRONLINE.COM
ZRE-M90BBSGG
ZRE-E42BBSG

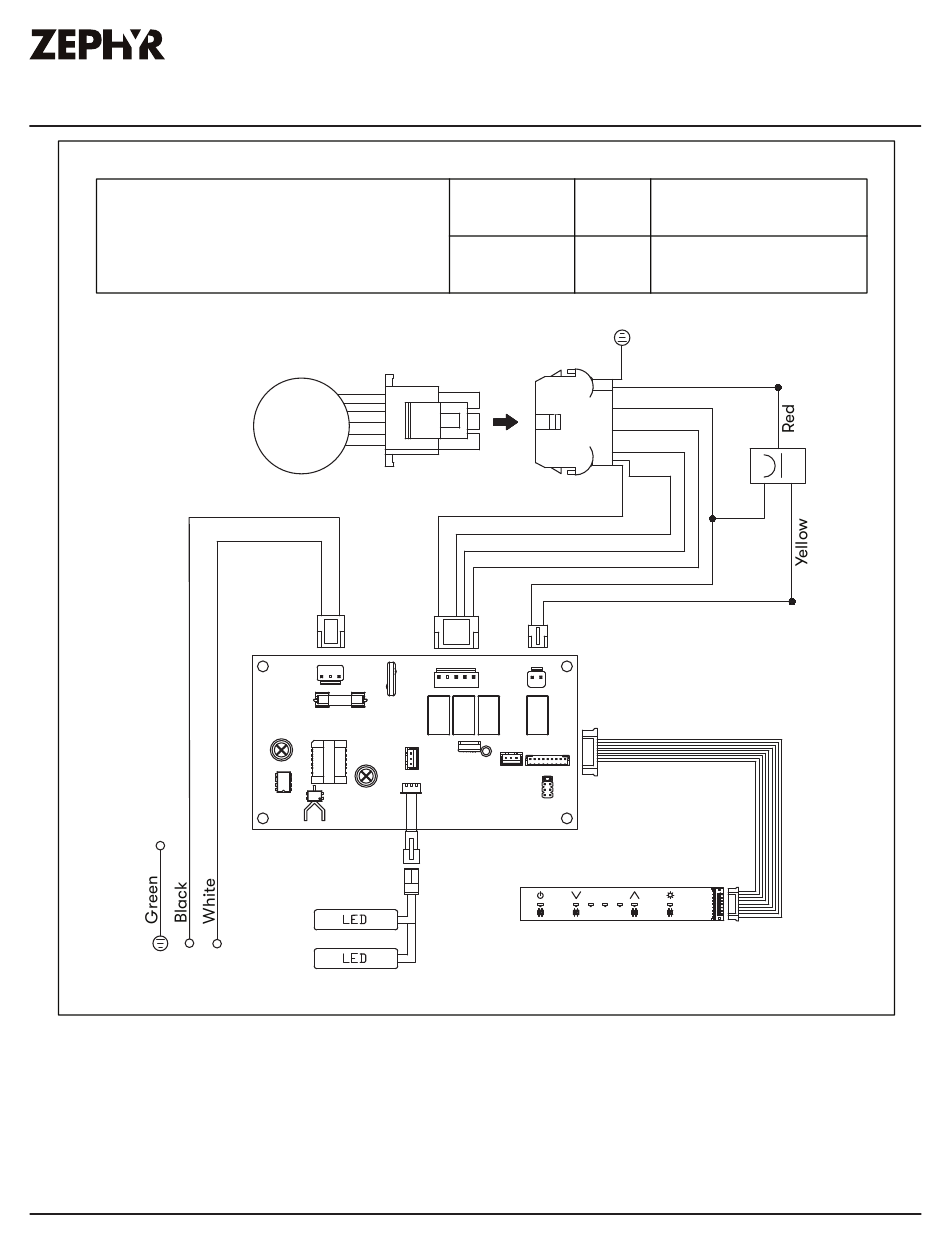

Wiring Diagram
Body
Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide
Motor
White
Black
REMARKS: CONDENSER 12.5+12.5uF
Wiring Diagram
Volts Hz
120 60
Body
Green
Yellow
Blue
Brown
Grey
White
Yellow
Yellow
Control
250V AC FIT AC120V 60Hz
Max. Amps
4
Red
Yellow
