Mounting the Hood
3. Lift support frame assembly up to the ceiling
making sure the word "front" on the top support
frame faces the front of the hood where the
controls will be located. (FIG. D) The key holes
on the top support frame should cover the wood
screws previously installed in the ceiling. Slide
support frame towards narrow end of key holes to
lock the frame in place. Install the last (2) M6 x 1"
wood screws with washers into the two remaining
corners of the top support frame to secure it to the
ceiling. Tighten all screws.

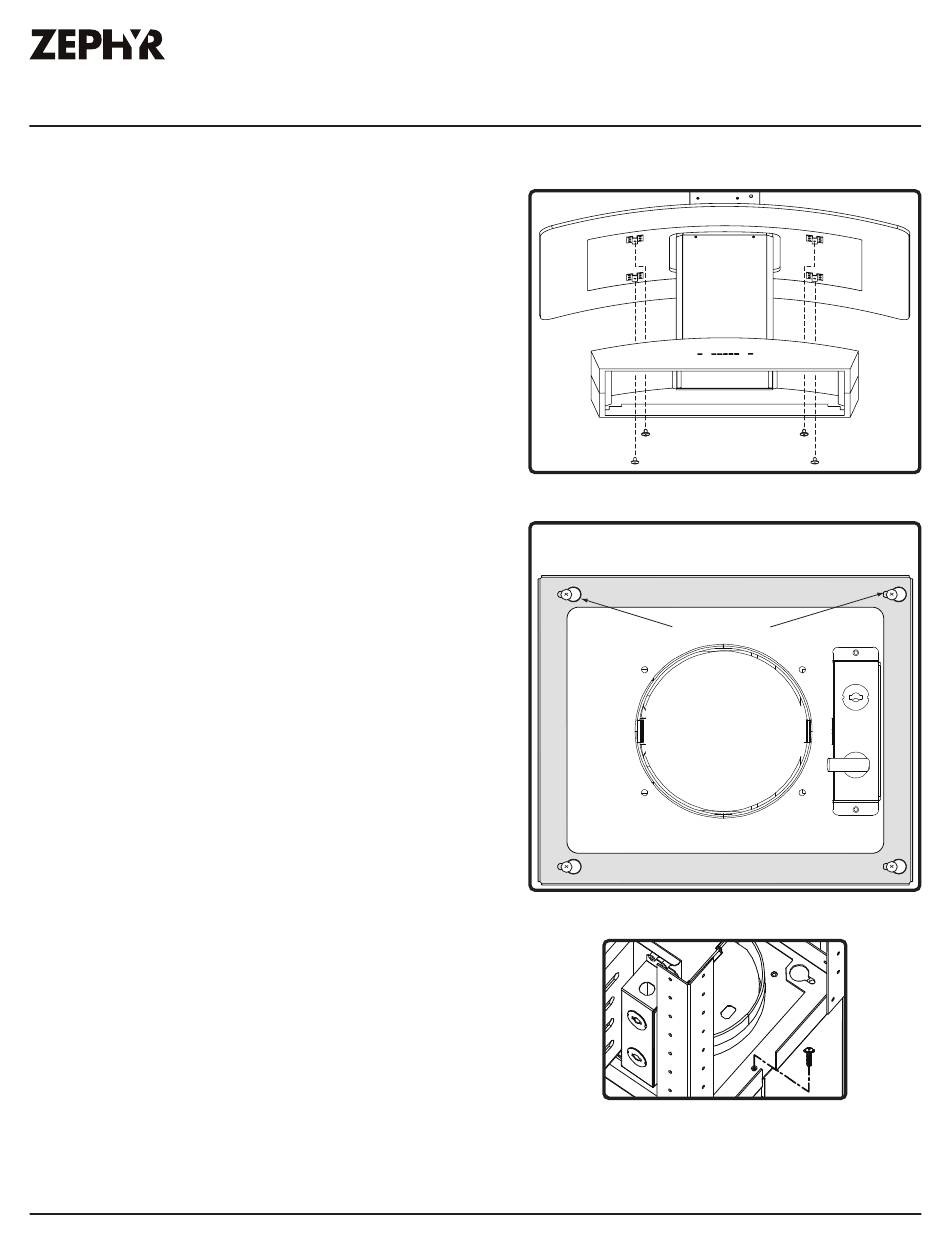

4. ZRE ONLY: Remove aluminum mesh filters from
hood. Place canopy over blower housing and
secure it to hood body using (4) 3/16 x 1/4 pan
head machine screws through filter opening. (FIG.
E)
5. Lift hood and align the (4) pre-installed mounting
screws located on top of the unit body (FIG. A4)
with the (4) key holes on the Bottom of Support
Frame. (FIG. F). Slide hood towards the narrow end
of key holes to lock into place. Hand tighten each
of the (4) screws with a screwdriver to secure hood
to Bottom Support Frame. Further secure bottom
support frame to unit body by one M4 x 12 safety
screw. (FIG. G).
6. Remove tape securing electronics mounting bracket
to hood and reposition electronics mounting
bracket. Install electrical and duct work.
7. Power up hood, verify all functions and check for
leaks around duct tape.
Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide
Installation Instructions
Bottom Support Frame
(secures to top of blower housing)
front - facing controls
BLOWER
HOUSING
FIG. E
back
Key Holes
FIG. F
FIG. G
