Installation Instructions
Mounting the Hood
8. Assemble Top Duct Covers (with louver holes)
together over Top Support Frame, secure Top
Duct Covers together by magnetic strips.
NOTE: If using hood in ductless recirculating
mode, you must install the air diverter plate to
the Top Support Frame prior to assembling the
duct covers.
9. Secure Top Duct Covers to Top Support Frame
by using (4) 3/16 x 1/4 screws (2 screws for
each Top Duct Cover). (FIG. H1).
10. Assemble Bottom Duct Covers together over
Top Duct Covers and secure together by
magnetic strips. Bottom Duct Covers should
rest on top of the Hood Body.
18 Anzio Island, Luce Island, Roma Island, Ravenna Island Use, Care, and Installation Guide
Top Support Frame
Top Duct Covers
Bottom Duct Covers
Bottom Support Frame

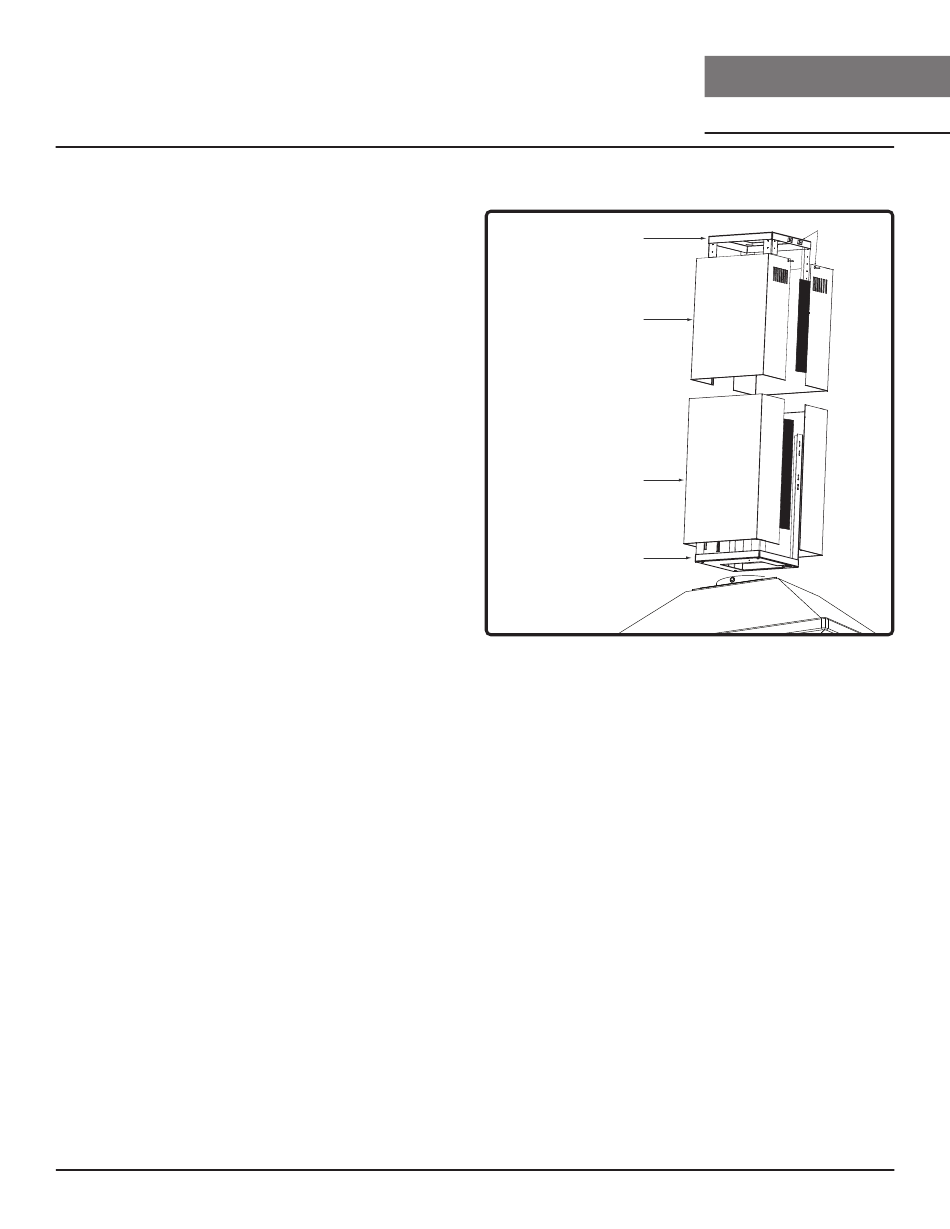

FIG. H
