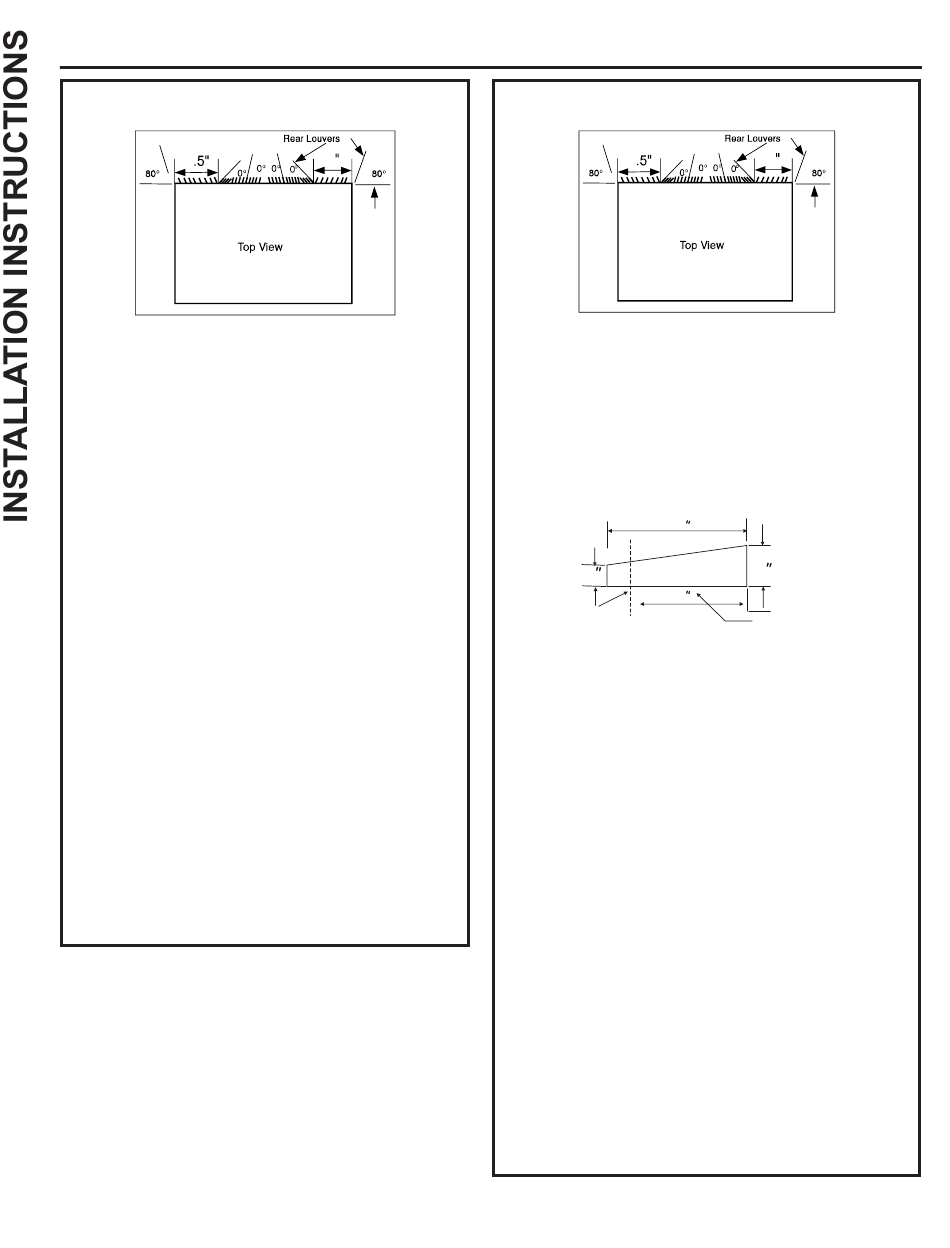

Installation Instructions
Emerson (15" Deep)
4
1. Remove existing rear grille as shown on page 9 of
this manual and replace with provided louvered rear
panel.
NOTE: You may need to drill holes in flange of existing
sleeve to match new rear grille.
2. Attach (1) 1" x 3/8" x 25" long seal in the center at
the top of the sleeve. Remove the backing paper
and press into position.
3. Attach the (2) 1" x 3/8" x 14" long seals to the left
and right sides of the sleeve.
4. Cut (2) 1" x 3/8" x 25" seals to 14" long and attach
them to the vertical sections of the rear grille.
5. Attach (2) 4-1/2" x 3-1/2" x 1-1/2" centering/support
blocks, one on each side wall. Place in center of
side wall with the tapered end facing the opening.
6. Gently slide unit into sleeve.
7. Before sliding all-the-way back, remove the second
screw from front on the left side of unit.
8. Remove the plastic washer from the screw.
9. Screw and attach the other end of the ground wire
to the unit. Make sure that the toothed washer is
against the cabinet.
10. Slide the unit completely to the rear to ensure a
good seal, making sure the ground wire does not
become tangled.
11. If you have difficulty with mounting the grill to the
sleeve, follow the instructions for direct mounting on
page 15.
12. Seal and frame the unit as described on page 16.
10
4
8 8
3
3
Fedders (19-3/4" Deep)
4
3
1. Remove existing rear grille as shown on page 9 of
this manual and replace with provided louvered rear
panel.
NOTE: You may need to drill holes in flange of existing
sleeve to match new rear grille.
2 Attach (2) 4-1/2" x 3-1/2" x 1-1/2" centering/support
blocks, one on each side wall. Place in center of
side wall with the tapered end facing the opening.
3. Cut (2) 17" tapered spacer blocks as shown below
into two pieces.
17
/
3
Tapered Spacer Block
4
4
Cut Here
4. The 4" section is placed in front of the rib on base
with the tapered end facing the back of the sleeve.
The remaining portion will be placed behind the rib
again sloping toward
the rear of the sleeve. This helps induce a rearward
slope on the unit.
5. Attach (1) 1" x 3/8" x 25" long seal in the center at
the top of the sleeve. Remove the backing paper
and press into position.
6. Attach (2) 1" x 3/8" x 14" seals to the left and right
sides of the sleeve.
7. Cut (2) 1" x 3/8" x 25" seals to 14" long and attach
them to the vertical sections of the rear grille.
8. Gently slide unit into sleeve.
9. Before sliding all-the-way back, remove the second
screw from front on left side of unit.
10. Remove the plastic washer from the screw.
11. Screw and attach the other end of the ground wire
to the unit. Make sure that the toothed washer is
against the cabinet.
12. Slide the unit completely to the rear to ensure a
good seal, making sure the ground wire does not
become tangled.
13. If you have difficulty with mounting the grill to the
sleeve, follow the instructions for direct mounting
on page 15.
14. Seal and frame the unit as described on page 16.
4
8 8
3
1
Protection Paper
Backing
