AMR SENSORS- Mode d'emploi / User guide version V1.2
Analogue sensors require an electric power supply that the battery of the AMR Sensors unit is not able to provide. You must therefore supply the
analogue sensor via an external electrical source.
Below is an installation recommendation that will ensure smooth running of the AMR Sensors + 0-10V sensor assembly
Electric power supply example:
10-29 V, 100 mA (depending on
the sensor's needs

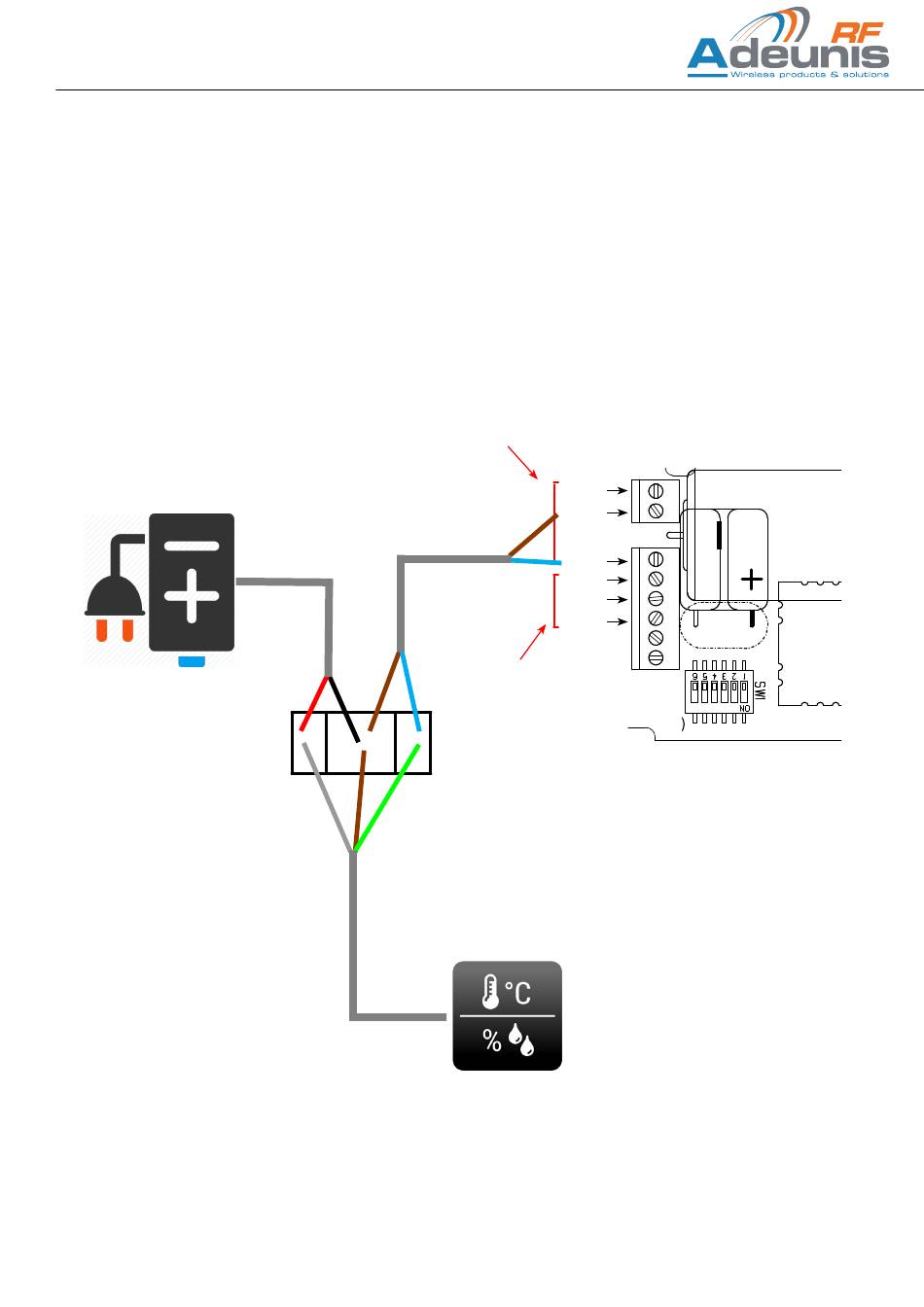

Example of Analogue sensor(s) assembly
Sensor 1 ANA
Sensor 2 ANA
Temperature + humidity sensor
4-20mA
GND
0-10V
4-20mA
GND
0-10V
Page
31
of 41
