* Get 6048-3D Propellers and update the ESC
firmware via DJI Assistant 2 to activate the 3D
mode of the 430-R Racing ESC.

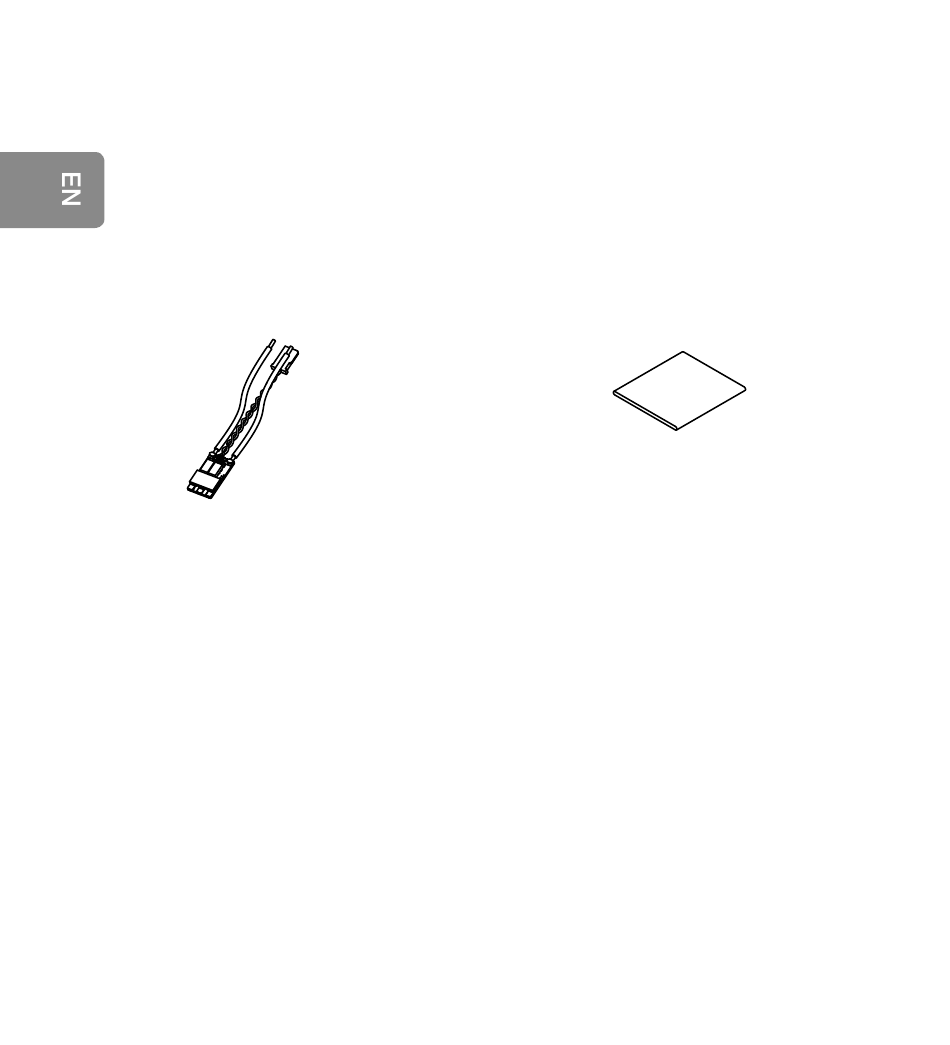

In the Box
430-R Racing ESC ×1
Connecting the ESCs
Tool Required: Power distribution board (PDB),
electric soldering iron and soldering tin.
1. Solder the ESC's black GND cable and white VCC
cable to the pads on the PDB as shown.
2. Connect the signal cable to your flight controller.
The signal cable's white wire transmits the control
signal; the black wire is for GND.
3. Connect the motor to the ESC. Test the motors and
ensure that the rotation direction of each motor is
6
Heat-shrink ×1
