INFOSEC E4 LCD Pro TM 10k Manuel Utilisateur page 52



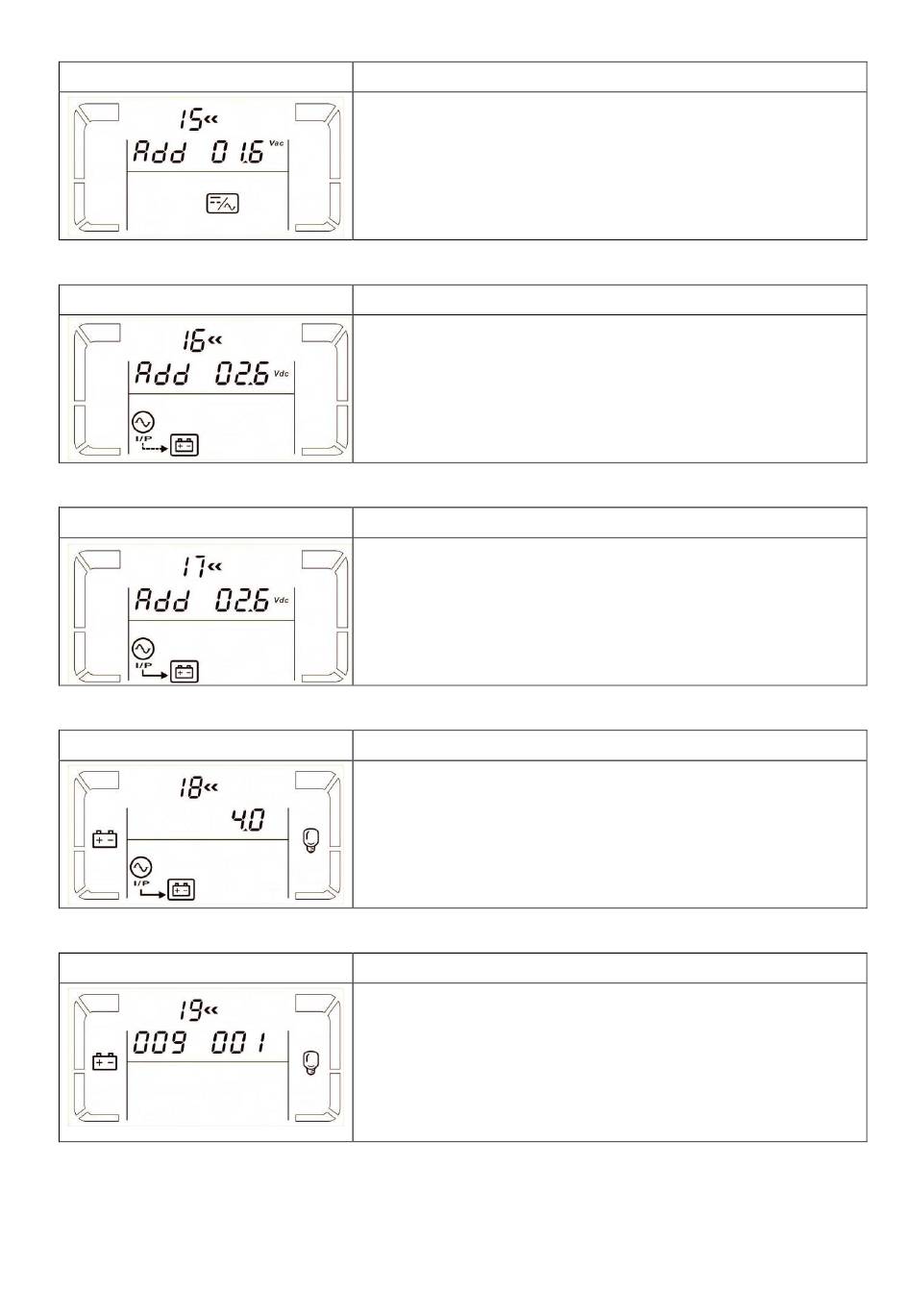

15: Inverter voltage calibration
Interface

16: Floating charger voltage adjustment
Interface

17: Constant charger voltage adjustment
Interface

18: Charger maximum current setting
Interface

19: Battery capacity and groups setting
Interface
INFOSEC UPS SYSTEM – 15, Rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
51
Hot Line Tel : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 11 16 AA XX 201 07
Setting
Parameter 2: Select Add or Sub to adjust inverter voltage
Parameter 3: the voltage range is from 0V to 6.4V, and the
default value is 0V.
Setting
Parameter 2: you may choose Add or Sub to adjust floating
charger voltage.
Parameter 3: the voltage range is from 0V to 6.4V, the default
value is 0V.
Setting
Parameter 2: you may choose Add or Sub to adjust constant
charger voltage.
Parameter 3: the voltage range is from 0V to 3.2V, the default
value is 0V.
Setting
Parameter 3:
The maximum charging current can be adjusted.
Default value is 4A for long run model and 1A for standard model.
The available options are 1A, 2A and 4A.
Setting
Parameter 2:
Set the battery capacity at 7AH, 9AH, 10AH, 12AH, 17AH, 26AH,
40AH, 65AH, 100AH and so on.
The default value is 9AH.
Parameter 3:
Set the battery group range from 1 to 6. The default value is 1
group. These parameters are for the battery backup time
calculation.
