3-6. LCD Setting

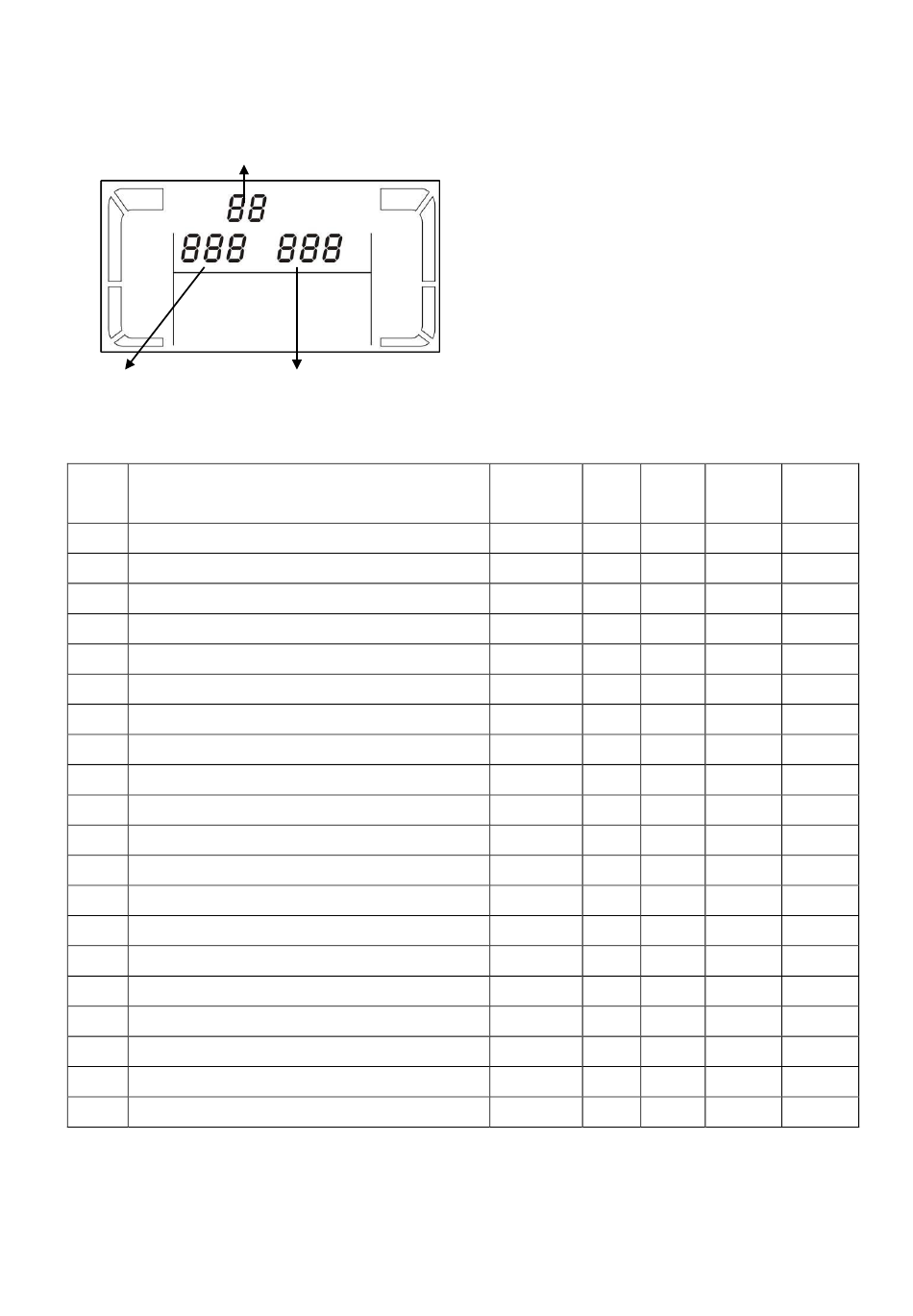

There are three parameters to set up the UPS. Refer to diagram 13.
Parameter 1
Parameter 2
Diagram 13 :
List of 20 programs available for parameter 1:
Code Description
01 Output voltage
02 Output frequency
03 Voltage range for bypass
04 Frequency range for bypass
05 Reserved
06 Reserved
07 Reserved
08 Bypass mode setting
09 Battery maximum discharge time setting
10 Reserved
11 Reserved
12 Reserved
13 Battery voltage calibration
14 Reserved
15 Inverter voltage calibration
16 Floating charger voltage adjustment
17 Constant charger voltage adjustment
18 Charger maximum current setting
19 Battery capacity and groups setting
20 Backup time calibration
*Y (YES) means that this program can be set in this mode.
