BASIC STEPS TO BEGIN

Before operating the machine, ensure that the electrical power, water supply and drain connections have been made as per the
installation instructions.
Familiarize yourself with the gauges, buttons and indicator lights on the control panel as well as the parts in the wash tank.
Ensure that the overflow pipe is correctly set in its place (inside the wash tank). The overflow pipe should never be forced into its
position. Make sure there is no water in the wash tank prior to initial use of the day.
Check chemical levels. The containers should have sufficient quantities of detergent and rinse additive.
1 2
5
8

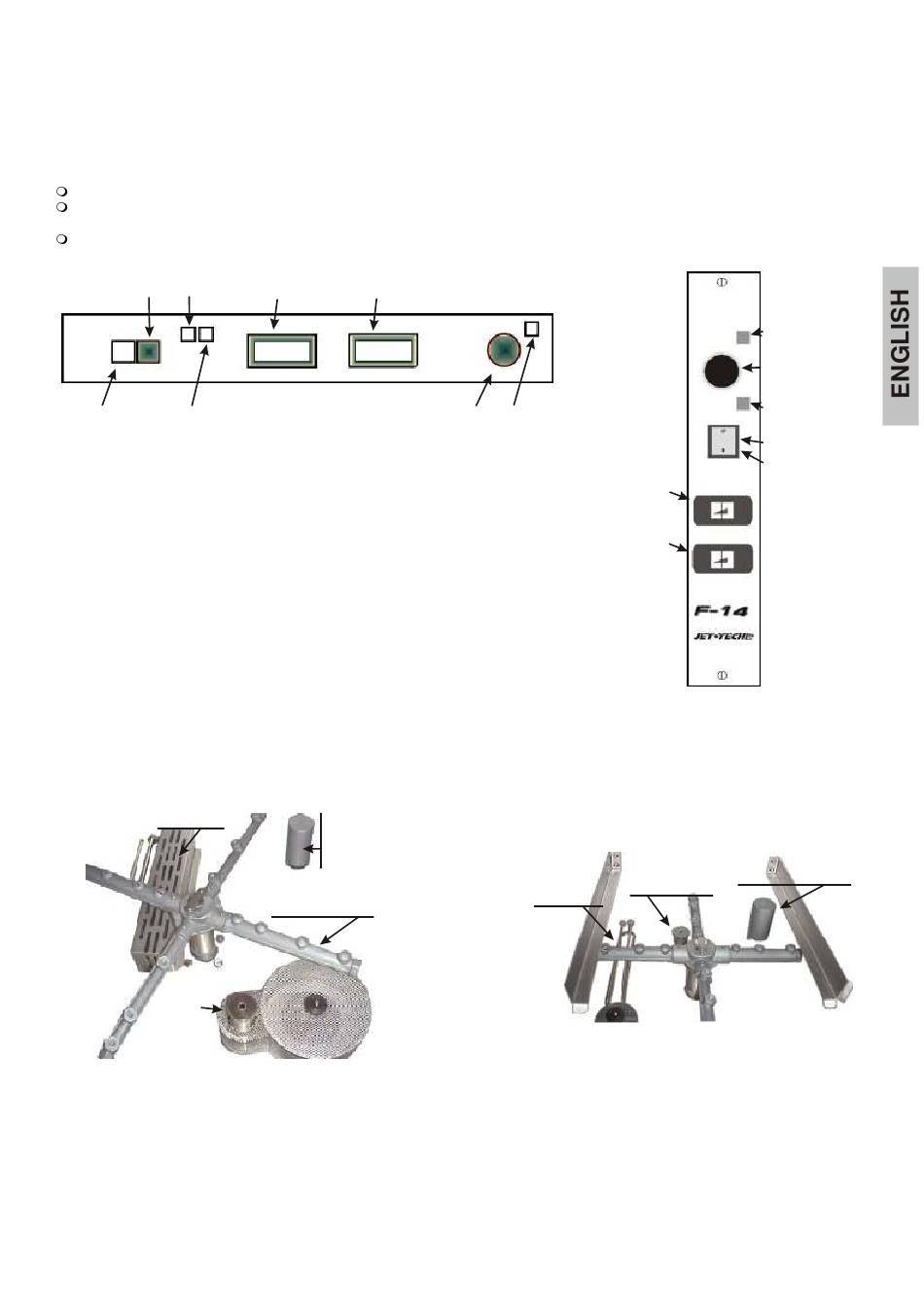

CONTROL PANELS

1 Green Power Button Switch
2 Power ON Indicator Lamp
3 Rinse Temperature Gauge
4 Wash Temperature Gauge
5 "READY" Indicator Lamp
6 Cycle Start Button
7 Cycle Indicator Lamp
8 White Drain Pump Button (F-18DP only)
Heater
Overflow pipe
4
3
F-18DP
WASH TANKS
Water Level
Air Trap
Do Not Touch
Wash arm
Wash pump
Filter
F-18DP
7
6
F-14
Heater
Wash pump
Filter
11
7
6
5
1
2
4
3
Water Level
Air Trap
Overflow
Do Not Touch
pipe
F-14
