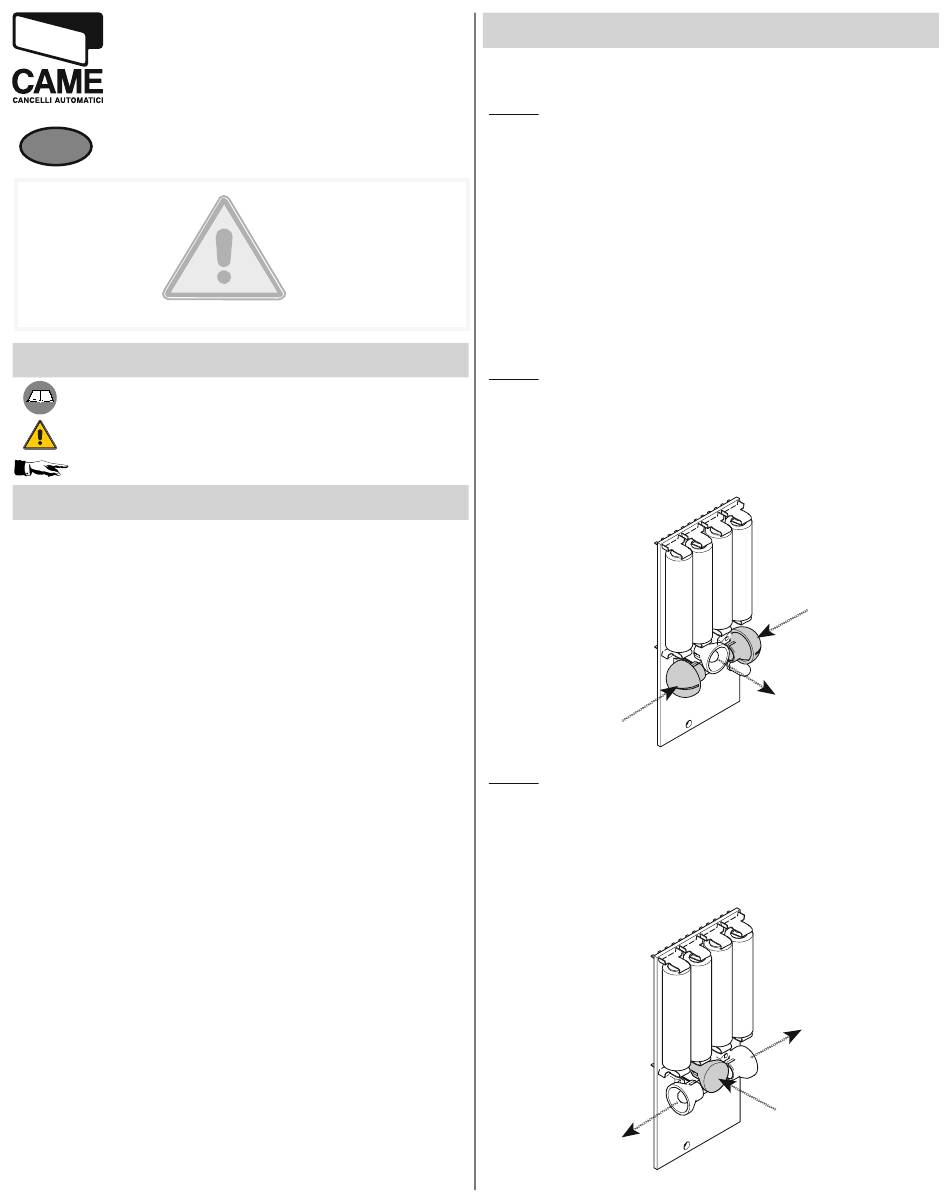

CAME DBC 01 Manuel D'installation page 5

DBC 03 - DBC 04
GB
"IMPORTANT SAFETY INSTRUCTIONS FOR INSTALLATION"
"CAUTION: IMPROPER INSTALLATION MAY CAUSE SERIOUS DA-
MAGE, FOLLOW ALL INSTALLATION INSTRUCTIONS CAREFULLY"
"THIS MANUAL IS ONLY FOR PROFESSIONAL INSTALLERS OR
QUALIFIED PERSONS"
Legend of symbols
This symbol indicates sections to be read with particular care.
This symbol indicates sections concerning safety
This symbol indicates notes to communicate to users.
Reference Standards
with the following standards:
EN 12978, UNI EN 954-1, CEI EN 60335-1, UNI EN 12453.
DBC 01
CORDLESS PHOTOCELL
INSTALLATION MANUAL
Description of devices
Designed and manufactured by CAME CANCELLI AUTOMATICI S.p.A. in
compliance with the safety regulations in force.S.p.A.
DBC 01
Protection deviceMade up of two units:
-12/24v AC/DC Infrared receiver.
1 led to signal that battery is run down (when the led on the receiver
fl ashes, this means that the batteries' charge will completely run
down in about a month)
-Battery powered infrared transmitter (works on four 1.5V AAA
batteries)
DBC 03
- Infrared repeater, made up of a central transmitter photodiode and
two lateral receiver photodiodes, with dip switches for selecting
receiving side.
Battery powered (works on four 1.5 AAA batteries)
RX
DBC 04
- Infrared repeater, made up of a central photodiode receiver and two
lateral, transmitting photodiodes, with dip switches for selecting the
emitting side.
Battery powered (works on four 1.5V AAA batteries)
TX
RX
TX
TX
RX
