ENGLISH

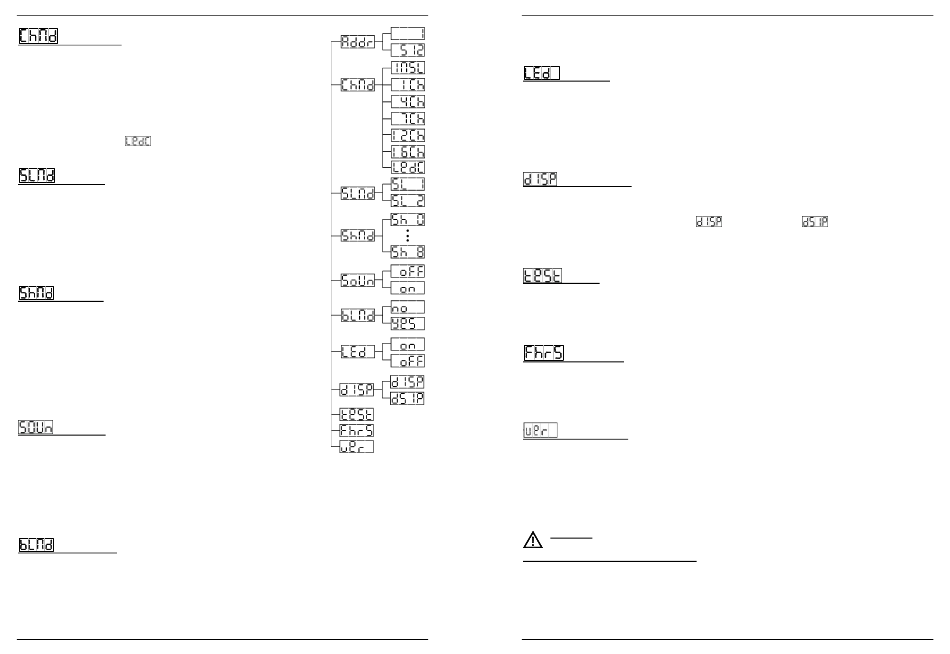

Channel Mode
Used to choose one of the available channel modes: choose the channel
mode that suits your needs.
 Press the MENU button until ChMd is shown on the display.
 Press the ENTER button, the display starts blinking.
 Use DOWN and UP button to select one of the available channel modes.
 Once the mode is selected, press the ENTER button to setup
 Press the MENU button for about 2 seconds to save the settings and return to
normal working mode. (or automatically return to the main functions without
any change after 8 seconds)
IMPORTANT: select mode when the LED LIGHTBAR 4TC is used with
the LEDCON-02 controller!
Slave Mode
If you are using several units in master/slave mode, you can improve the
impact of the multi-channel shows by choosing the right Slave mode.
 Press the MENU button until SLMd is shown on the display.
 Press the ENTER button to select.
 Use DOWN and UP button to select one of the available slave modes.
 Once the right mode is selected, press the ENTER button to confirm.
 Press the MENU button for about 2 seconds to save the settings and return to
normal working mode. (or automatically return to the main functions without
any change after 8 seconds)
Show Mode
Used to choose to select one of the preprogrammed shows when used in
standalone or master/slave mode.
 Press the MENU button until ShMd is showing on the display.
 Press the ENTER button, the current show starts blinking in the display. Use
DOWN and UP buttons to select one of the preprogrammed shows:
 Sh 0
 all shows played in random mode.
 Sh 1 to Sh 8  12 different built-in shows.
 Once the right mode is selected, press the ENTER button to confirm.
 Press the MENU button for about 2 seconds to save the settings and return to
normal working mode. (or automatically return to the main functions without
any change after 8 seconds)
Sound Mode
Used to choose the desired sound mode to trigger the shows.
 Press the MENU button until SOUn is shown on the display.
 Press the ENTER button, the display starts blinking.
 Use DOWN and UP button to select one of the available channel modes:
 On (sound mode ON)  the shows are triggered by the internal microphone.
 oFF (sound mode OFF)  the shows are triggered by the speed selected with the shows.
 Once the right mode is selected, press the ENTER button to confirm.
 Press the MENU button for about 2 seconds to save the settings and return to normal working mode. (or
automatically return to the main functions without any change after 8 seconds)
Blackout Mode
Blackout mode: when no DMX-signal is detected, the unit goes in blackout.
No blackout mode: when no DMX-signal is detected, the unit automatically switches to master mode.
ALWAYS set to "No Blackout" when the unit is used in master (or master/slave) mode!!!
 Press the MENU button until bLMd is shown on the display.
 Press the ENTER button, the current selection starts blinking in the display.
 Use DOWN and UP button to select YES (blackout) or no (no blackout) mode.
JB SYSTEMS
®
OPERATION MANUAL
5/64 LED LIGHTBAR 4TC
ENGLISH
 Once the right mode is selected, press the ENTER button to confirm.
 Press the MENU button for about 2 seconds to save the settings and return to normal working mode. (or
automatically return to the main functions without any change after 8 seconds)
Led Display
Display on: display is always on.
Display off: display turn automatically off when not used.
 Press the MENU button until the display shows LEd.
 Press the ENTER button, the display starts blinking.
 Use DOWN and UP buttons to select on (display always on) or oFF (display off when not used).
 Once the right mode is selected, press the ENTER button to confirm.
 Press the MENU button for about 2 seconds to save the settings and return to normal working mode. (or
automatically return to the main functions without any change after 8 seconds)
Display Inversion
Display normal: display is readable when the unit is on the floor.
Display inversion: display is readable when the unit is mounted upside down.
 Press the MENU button until "dISP" is shown on the display. (normal display)
 Press the ENTER button to toggle between
 Once the right mode is selected, press the ENTER button to confirm.
 Press the MENU button for about 2 seconds to save the settings and return to normal working mode. (or
automatically return to the main functions without any change after 8 seconds)
Self-Test
Run a built-in self-test program
 Press the MENU button until the display shows "teSt".
 Press the ENTER button to start the internal self-test program.
 To go back to the functions press the MENU button.
If you want to go back to normal running mode: press the MENU button for about 2 seconds.
Fixture Hours
Used to show the number of working hours of the unit.
 Press the MENU button until the display shows "FhrS".
 Press the ENTER button to show the number of working hours in the display.
 To go back to the functions press the MENU button.
If you want to go back to normal running mode: press the MENU button for about 2 seconds.
Software version
Used to show the software version that is installed in the unit
 Press the MENU button until the display shows "ver".
 Press the ENTER button to show the software version on the display.
 To go back to the functions press the MENU button.
If you want to go back to normal running mode: press the MENU button for about 2 seconds.
ELECTRICAL INSTALLATION + ADDRESSING
Important: The electrical installation should be carried out by qualified personal only,
according to the regulations for electrical and mechanical safety in your country.
Electrical installation for 1 standalone unit:
 Just insert the mains cable. The unit starts working immediately in stand-alone mode.
Remark1: You can connect a CA-8 or CA-32F remote controller to the unit if you want to have more
control. Refer to "how to operate the unit" to learn how to do this.
Remark2: if there's no output, please make sure to set the unit in master mode and set the blackout mode
to "NO" (see previous chapter)
JB SYSTEMS
®
OPERATION MANUAL
(normal display) and (display inversion).
