6. Measure functions

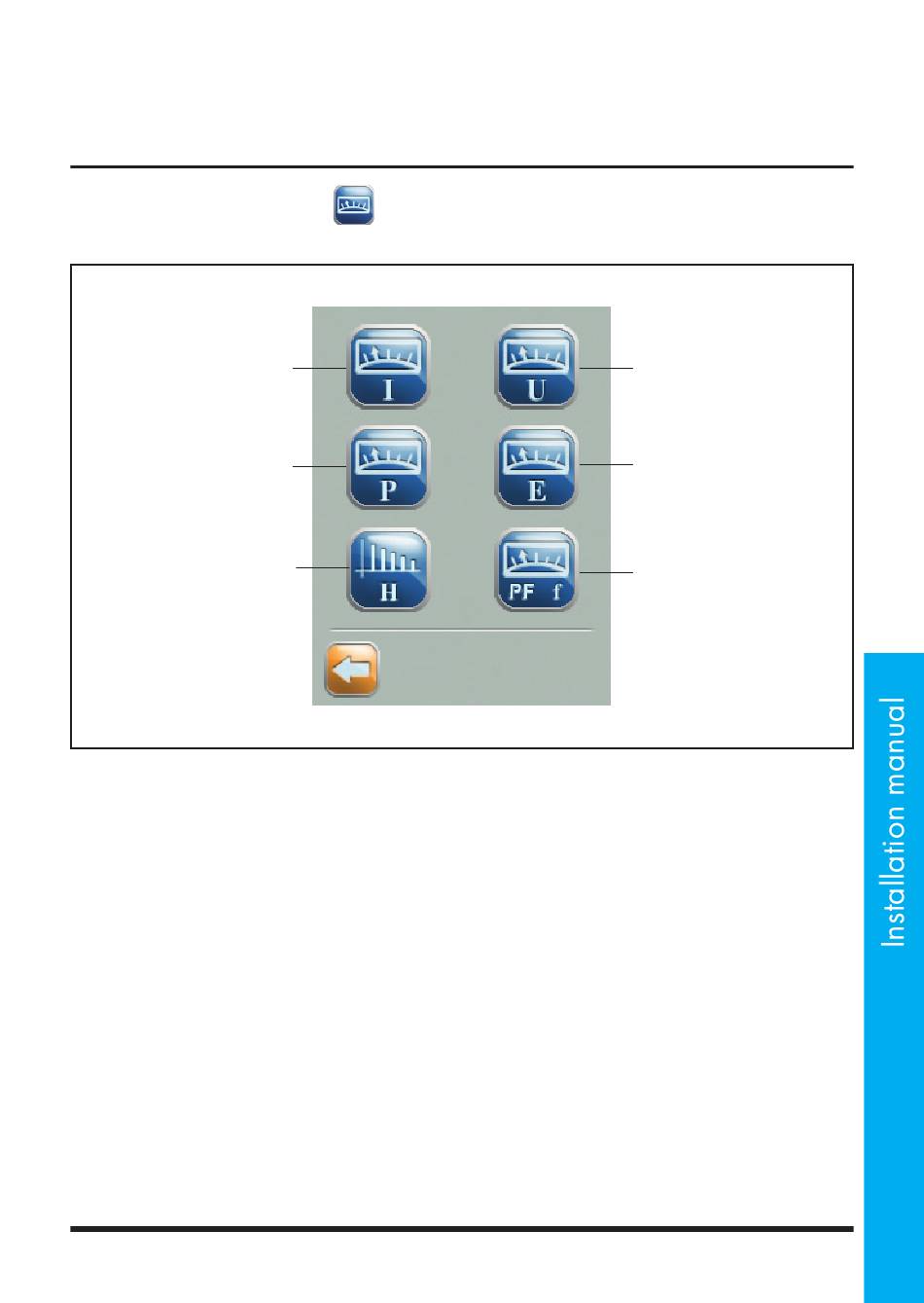

By pushing the "measure"
following page:
"Current"
"Power"
"Harmonics"
"Current" button shows the measured currents for each phase, neutral and earth fault.
"Voltage" button shows the measured voltage. Line voltages and phase voltages
are shown.
"Power" button shows the measured power, both three-phases or mono-phase system.
By pushing the "energy" button it's possible to open the energy sub-menus.
"Harmonics" button allows to display harmonics measures for both currents and
voltages.
"Others" button shows the measured frequency (f), phase power factor (PF), temperature
(T) and battery voltage (Batt).
Protection unit MP6-Megabreak
button in the main menu it's possible to enter the
"Voltage"
"Energy"
"Others"
®
