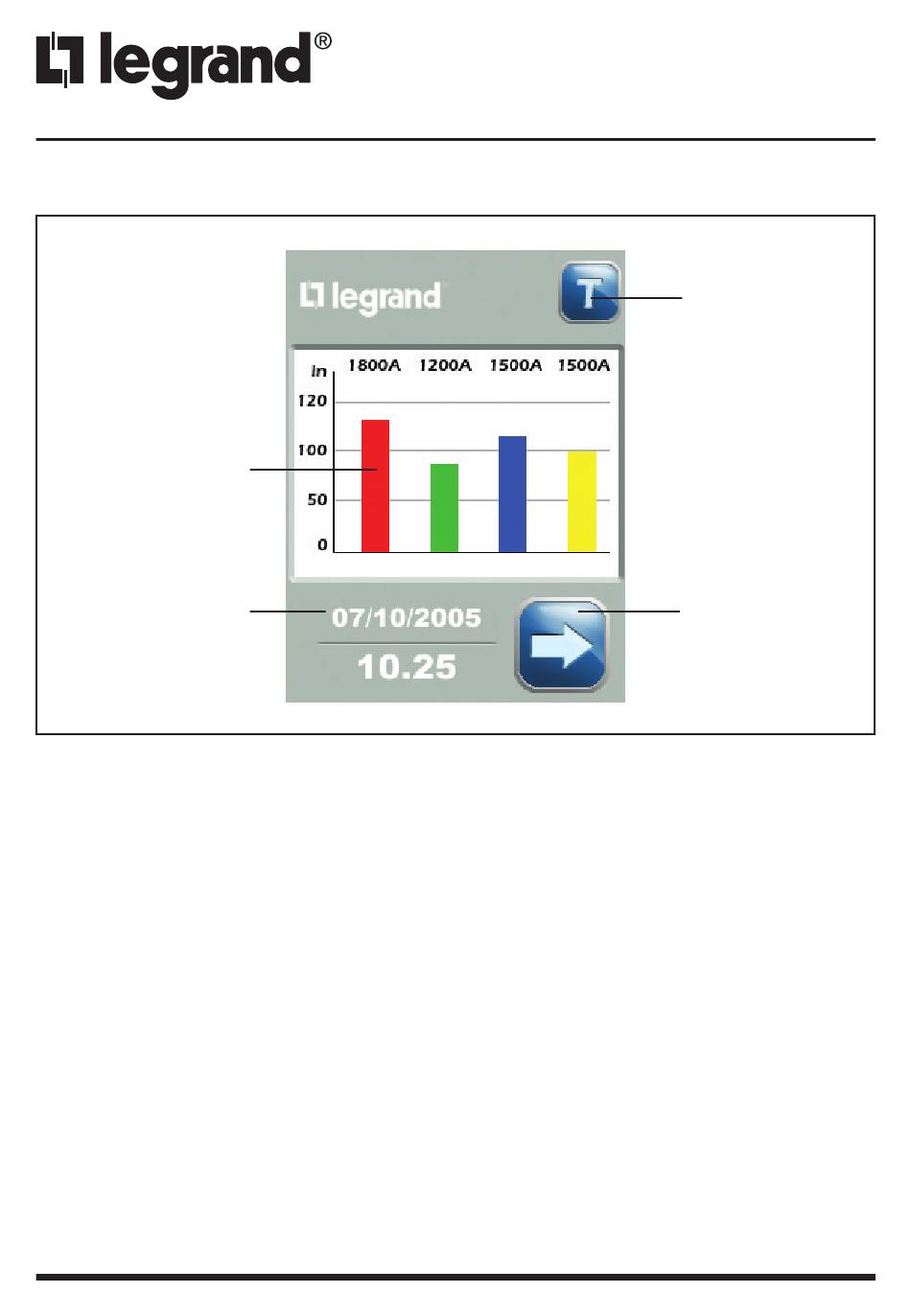

After switching the protection unit on, it shows the following screen:
Histogram of
the currents
Date et hour
In this screen it's possible to find:
- Currents value: shown by bars in % of adjusted current and by values
- Date and time: date and time setting
- "Main menu" button allows to enter the main menu
- "Test" button, pressed at least 3 s, allows to verify the proper functioning of the
protection unit and the breaker through a "tripping test".
The home page comes back after a 60 seconds timeout without any action from any
screen that was previously displayed as well as at the start up.
46

3. Home page

"Test"
"Main menù"
