Spare Part List - Atlas Copco PRO D2112Q Manuel D'instructions

D2112Q

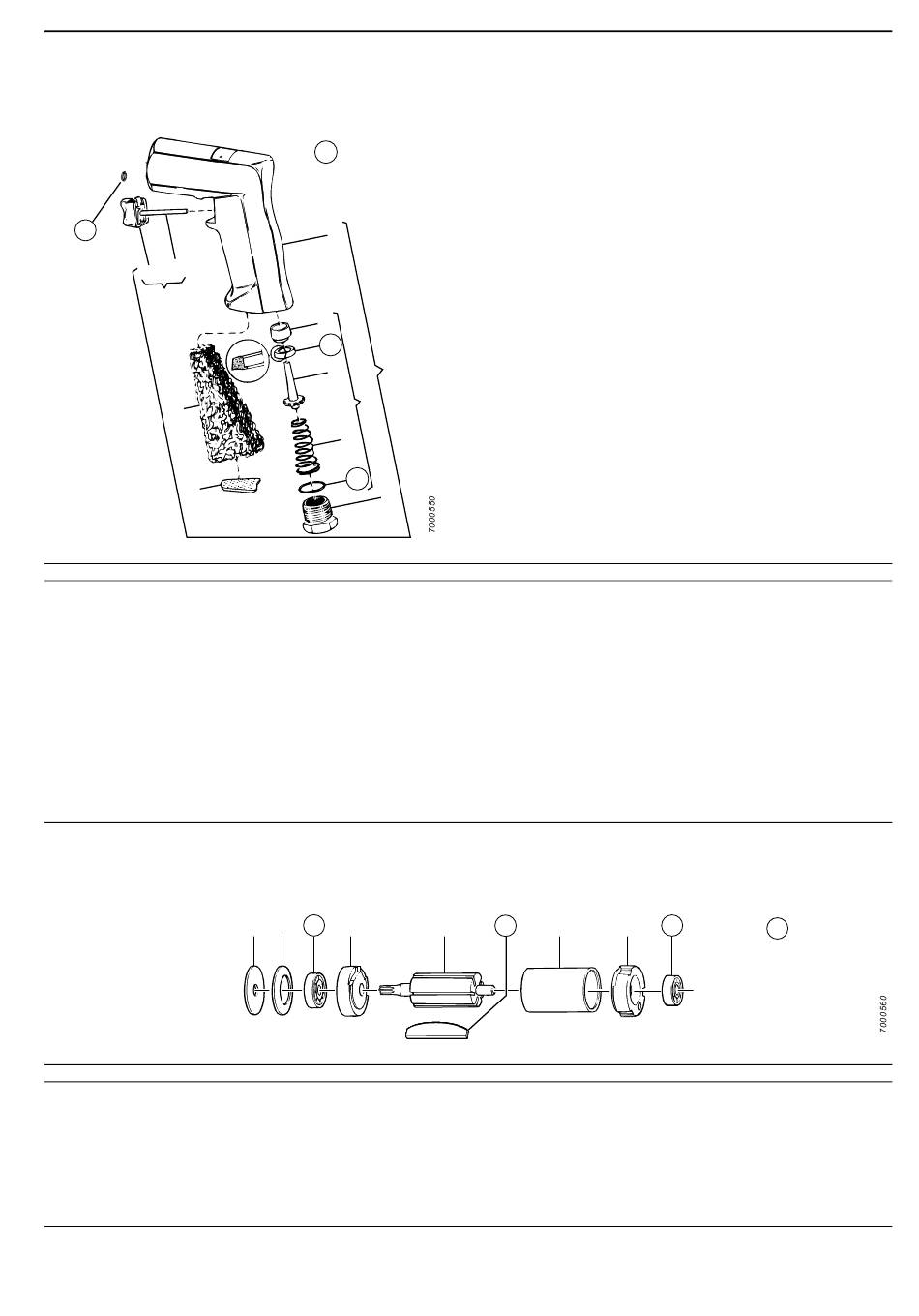

Exploded views/tables
Handle
15
4 5
3
13
14
Ref. No. Ordering No.
1(2-14) -
2 -
3(4-5) 4111 0114 80
4 -
5 -
6(7-11) 4111 0112 90
7 -
8 -
9 -
10 -
11 -
12 4111 0109 00
13 4111 0127 00
14 4111 0116 00
15 4111 0129 00
Motor
Ref. No. Ordering No.
1 4111 0107 00
2 4111 0128 00
3 -
4 4111 0105 00
5 4111 0124 00
6 -
7 4111 0104 00
8 4111 0103 00
9 -
= Included in
Service Kit
2
7
8
1
9
6
10
11
12
Qty Description
1 Handle, compl.
1 Handle
1 Trigger, compl.
1 Trigger
1 Pin
1 Valve kit
1 Valve seat
1 Seal
1 Valve
1 Spring
1 O-ring
1 Adapter
1 Filter
1 Silencer
1 Sealing ring
1 2 3 4
Qty Description
1 Washer
1 Cup spring
1 Ball bearing
1 End plate
1 Rotor
5 Vane
1 Cylinder
1 End plate
1 Ball bearing
Atlas Copco Tools - 9836 4058 00
Remark / Included in Service kit
Service kit 4081 0056 90
(17.3x2.4) / Service kit 4081 0056 90
(BSP 1/4"). With NPT-thread 4111 0109 01
Service kit 4081 0056 90
5 6 7
Remark / Included in Service kit
(608) / Service kit 4081 0057 90
Service kit 4081 0057 90
(626) / Service kit 4081 0057 90

Spare part list

8 9
= Included in
Service Kit
59
