4.0 Setup and Assembly

WARNING:
Read and understand the entire contents of this manual
before attempting assembly or operation. Failure to comply
may cause serious injury.

4.1 Unpacking and cleanup

Remove all contents from shipping crate and compare parts to
the contents list in this manual. If shipping damage or any part
shortages are identified, contact your distributor. Do not
discard crate or packing material until drill press is assembled
and running satisfactorily.
Clean all rust protected surfaces with kerosene or a light
solvent. Do not use lacquer thinner, paint thinner or gasoline,
as these can damage plastic components and painted surfaces.

4.2 Shipping contents

1 Drill press
1 Crank handle
3 Feed handles
1 Arbor
1 Drift key
1 Owner's manual

4.3 Crank handle Assembly

1. Install 3 feed handles into hub (D, Fig. 4-2).
2. Install crank handle on shaft of table bracket, and tighten
set screw with 3mm hex wrench. (Fig. 4-1)

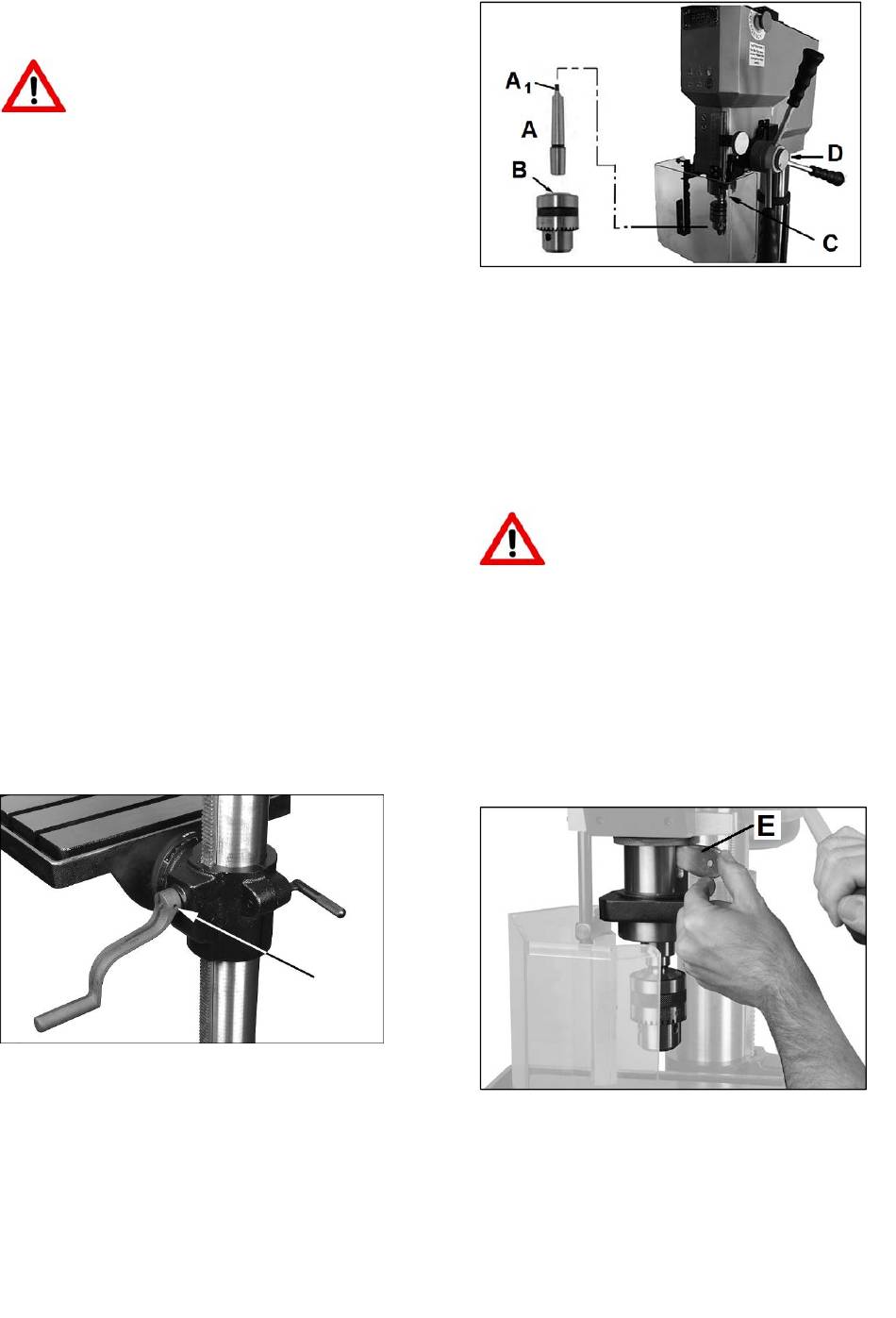

Figure 4-1: Installing crank handle

4.5 Chuck and arbor installation

1. Thoroughly clean arbor (A, Fig. 4-2), chuck (B) and spindle
(C). Any grease or residue in these areas can cause the
pieces to separate and create a safety hazard as well as
damage to the tool.
Figure 4-2: Installing chuck and arbor
2. Twist chuck to retract chuck jaws if they are exposed.
3. Push chuck (B) by hand onto arbor (A), and slide assembly
firmly up into spindle (C).
4. Turn arbor and chuck assembly until tang (A1) on arbor
engages slot at end of spindle.
5. Use one or two sharp taps from a rubber mallet, or a
hammer and a block of wood, against bottom of chuck to
seat chuck securely onto arbor.
CAUTION:
Do not use a steel hammer directly against chuck, as this may
damage chuck.
Chuck and arbor removal:
1. Unplug machine from power source.
2. Raise table until it is about 200mm below chuck.
3. Place a piece of scrap wood on table, and lower quill
(Figure 4-3) using feed handles.
Figure 4-3: Drift key insertion
4. Rotate spindle to align keyhole in spindle with keyhole in
quill.
5. Insert drift key (E, Fig. 4-3) into aligned slots and tap
lightly. The chuck and arbor assembly should fall from the
spindle.
