3.0 Machine Description

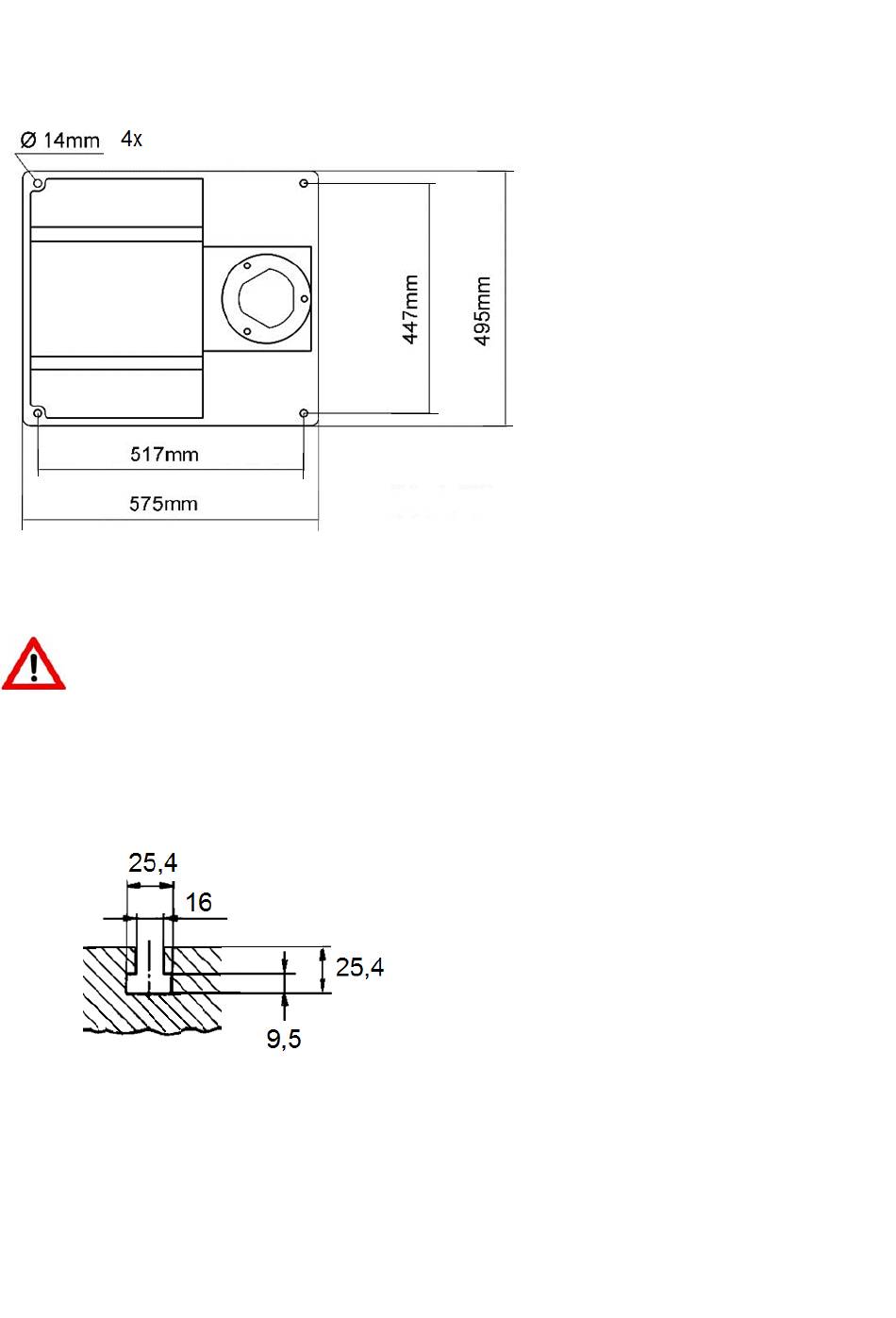

3.1 Base mounting hole pattern

Figure 3-1: Base mounting hole pattern
WARNING:
To avoid tipping, the machine must be bolted down with four lag screws (not provided).

3.2 Base and Table T-slot dimensions

Figure 3-2: Base and Table T-slot dimensions
8
