Installation and Operating Specification FU Comfort Sinus

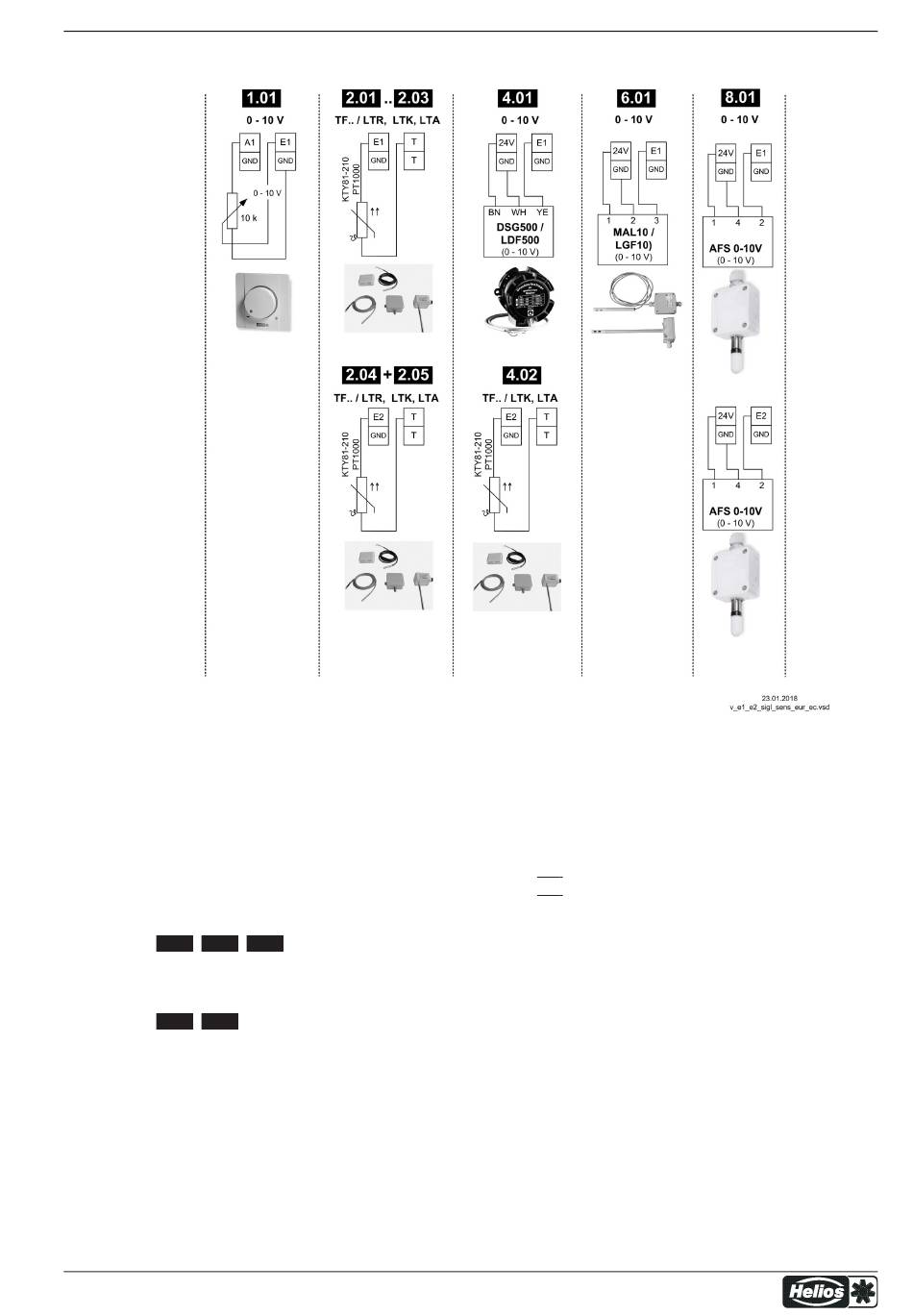

Mode and signal to E1, E2
6.2

Operation with a second control circuit

The function for control circuit 1 is determined by selection of the mode. This acts on the output for the
motor connection.
Operation with a second control circuit is possible if necessary; this has a separate actual value
sensor and a separate output.
This is activated by the "E2 function" for the second analog input "E2" (see menu group "Basic
Settings") and acts on the analog output A1 (function
Operation with a second control circuit is not possible in the following modes:
1.01 2.03
,
The following modes which are pre-programmed to operation with a second sensor can be reprog-
rammed to operation with a second control circuit:
2.04 2.05
,
The second control circuit is activated by the "E2 function" for the second analogue input "E2" (see
menu group "Base Setup").
L-BAL-E304-GB 2004
4.02
,
| |
8A ).
Part.-No.
23/139
Base setup
