Lab.gruppen PD3000 Mode D'emploi page 27

52
PD3000

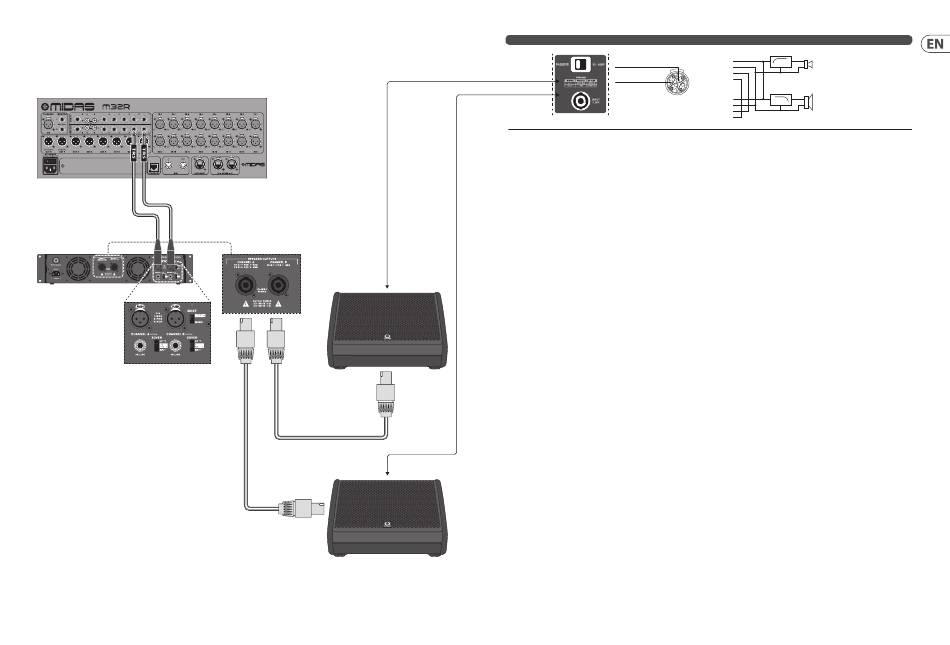

Two passive fullrange monitors, two Turbosound TFM122M together with Lab.gruppen PD3000
M32R
PD3000
Mode switch: Stereo
Channel A Xover switch: Full Range
Channel B Xover switch: Full Range
2-pole cable
TFM122M
2-pole cable
TFM122M
Mode Back Panel Connector
speakON NL4
Passive
PASSIVE, Input Full Range +
1+
1-
PASSIVE, Input Full Range -
2-
2+
Quick Start Guide
Internal Schematic
>
1+ HPF
HF
NL4
1 - >
Input/
>
2+
Link
2 - >
>
1+
LPF
NL4 LF
>
1 -
Input/
>
2+
Link
2 - >
