TI-Presenter User Guide
Calculator-In Port
Potential Future Use
DC Power Port
Before you set up your TI-Presenter, make sure your calculator is turned off.
1. Connect the power cable to the AC/DC adapter.
2. Connect the other end of the AC/DC adapter to the DC Power Port on the
TI-Presenter.
3. Connect one end of the video cable to the Video-Out Port on the TI-Presenter.
Connect the other end of the cable to:
•
the Video-In Port on the TV (for Europe only, use the SCART adapter).
-or-
•
the Video-In Port on the VCR.
-or-
•
the RF modulator.
Note: If you connect TI-Presenter to the TV through a VCR or an RF modulator,
see the manufacturer's manual for connection instructions.
4. Connect the larger connector on the calculator cable to the Calculator-In Port on
the TI-Presenter. Connect the other end of the calculator cable to the ViewScreen
Port on the calculator. (To determine which calculator cable to use, see page 4.)
Do not use the calculator's unit-to-unit cable to connect the calculator to
TI-Presenter.
Note: The calculator cable connectors are equipped with locks. When you
connect one, you will hear a "click." To disconnect, push in slightly on the sides of
the connector to release it.
4 ENG

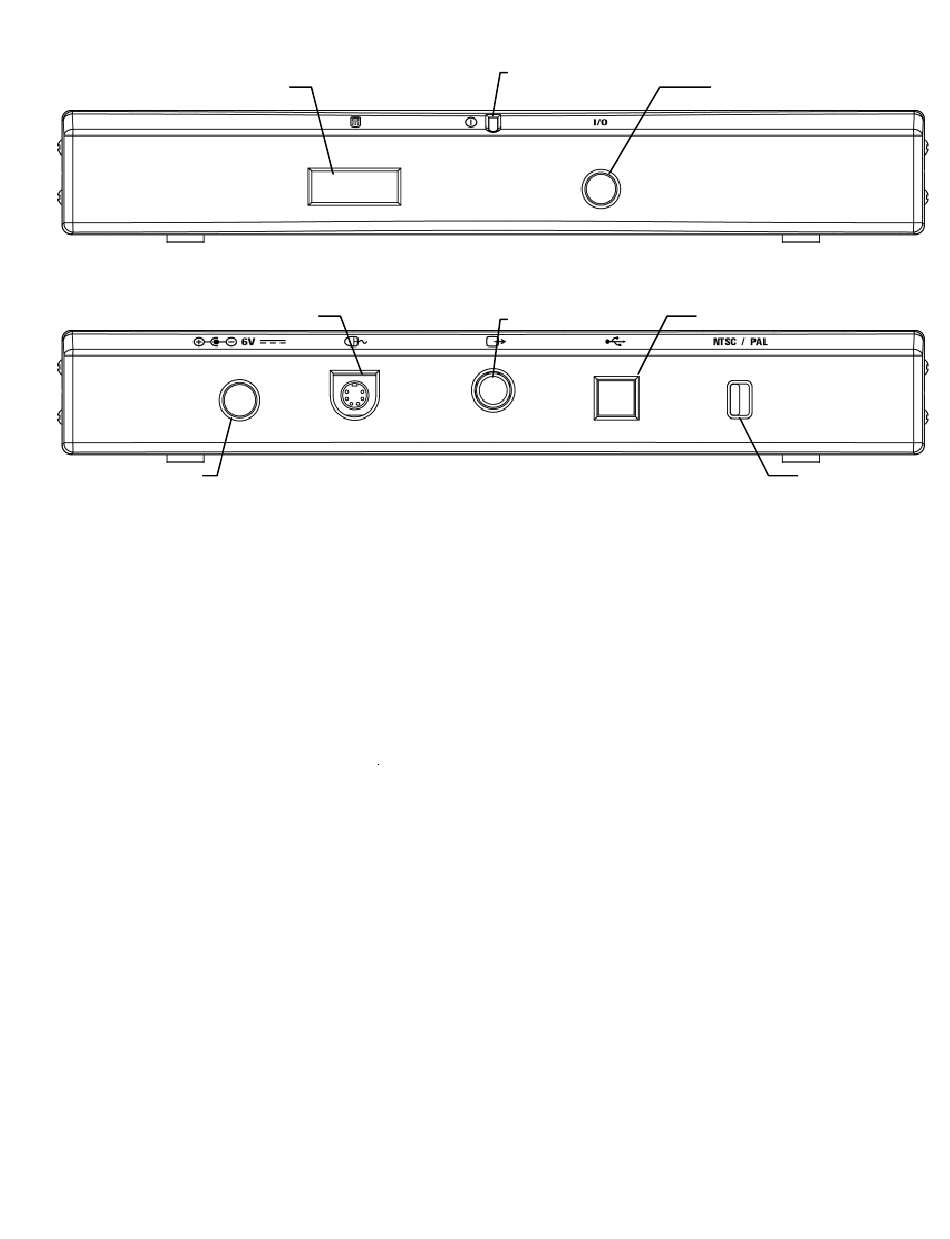

Figure 2. TI-Presenter front panel
Figure 3. TI-Presenter back panel
Power Indicator
Video-Out Port
I/O Port
Potential Future Use
TV Format Switch
