Installation and electrical connection

2.3. SELVE radio special features

All SELVE radio drives receive radio signals on 868.3 MHz radio frequency. All SELVE
intronic transmitters can be taught into these drives. Up to 16 transmitters can be
taught into one motor. Please adhere to the transmitter operating instructions.
The range of the radio controllers is restricted by legal provisions for radio sets and by
structural conditions.
You should ensure that you have perfect radio reception during planning, particularly
if the transmitter is in a different room than the radio drive.
Ensure that you do not install the controller in the immediate vicinity of metal surfaces.
Similarly, powerful local transmitting stations with an identical frequency may interfere
with smooth operation of the system as well.
3. Installation and electrical connection
Important! Risk of injury through an electric shock!
Connection only when de-energised!
Run the drive only after installation.
Warning!

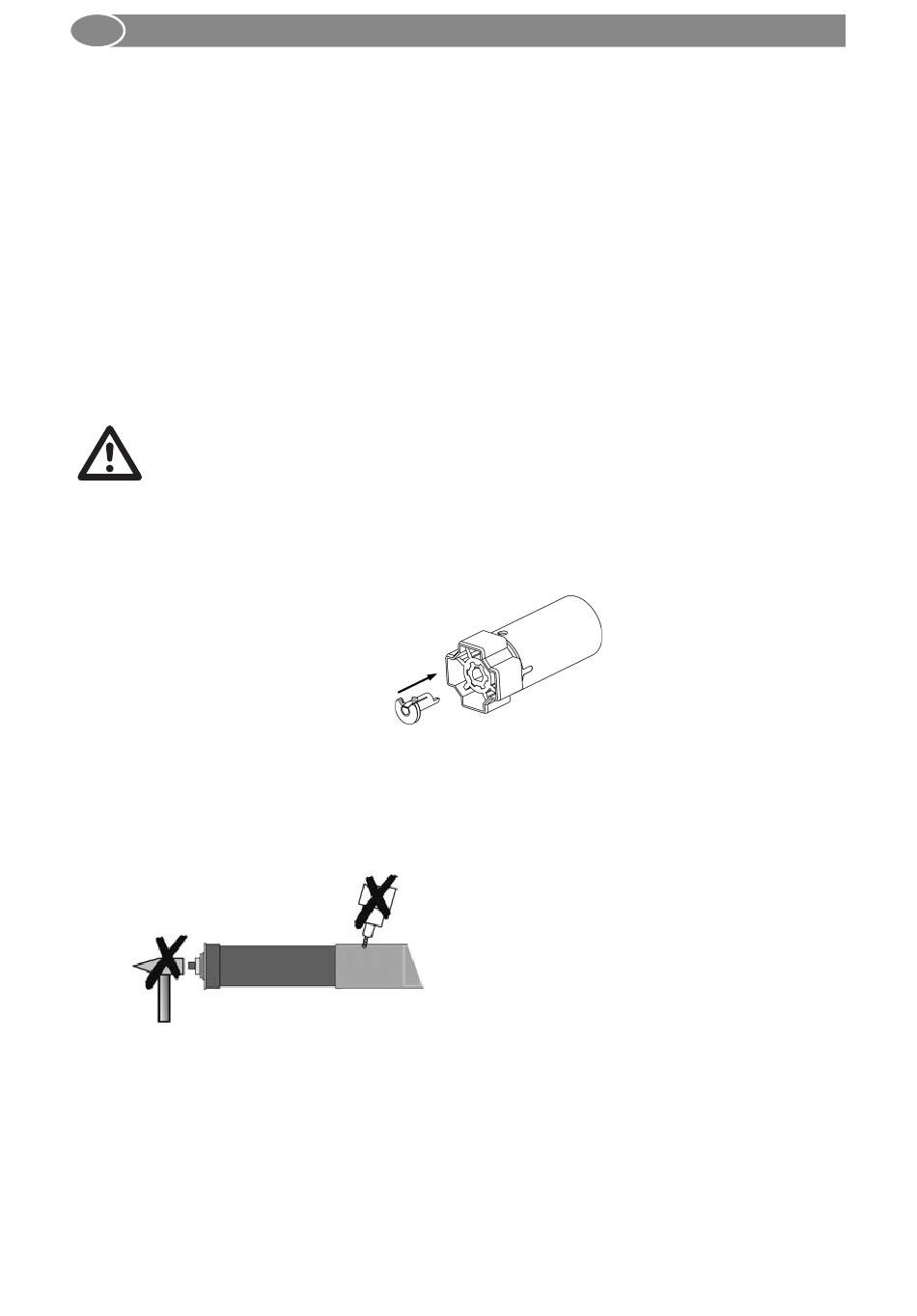

3.1. Installation of the drive into a shaft

1. Attach crown and coupling adapter to the motor and fasten them with the
locking device.
2. Push the drive into the shaft in a positive-locking way. The drive must not be
subject to any impacts. Crown and coupling adapters must not have any play
inside the shaft.
3. Where required, secure the drive axially, e.g. by screwing the shaft to the coupling
adapter. Do not drill holes into the drive area!
4. Attach the shaft with the drive and the shaft cap in the bearings. Do not bend
the motor cable and aerial and place them so that neither the aerial nor the
motor cable cannot be damaged. Do not place the aerial parallel to the motor
cable. The aerial must not be shortened or extended. To keep water from getting
into the motor, place the motor line in a bend direction downwards, so that any
water can drip off.
5. Attach the curtain to the shaft.
