ENGLISH
3.4

Auxiliary Load Operation

Certain pump models are equipped with a terminal
bar that provides user access to a built-in Auxiliary
Load relay contact. This normally-open, dry contact
is activated under certain operating conditions and is
primarily intended to be used to control external devices
that require system water flow for proper functioning,
such as heaters, booster pumps, salt water chlorinators,
etc.
See Figures 9 and 10 for compartment's location details.
An access cover with Phillips-head screw must be
removed before proceeding.

Auxiliary Load Connection Requirements

WARNING
ELECTRICAL SHOCK HAZARD
Due to the potential risk of fire, electric shock, or
injuries to persons, Zodiac
loads must be installed in accordance with the
National Electrical Code
and safety codes, and the occupational Safety and
Health Act (OSHA). Copies of the NEC may be
ordered from the National Protection Association,
470 Atlantic Ave., Boston, MA 02210, or from your
local government inspection agency.
In Canada, Zodiac Pumps must be installed in
accordance with the Canadian Electrical Code
(CEC).
• The Auxiliary Load relay contacts are rated at
230V/11A RMS. Please ensure the requirements
of the equipment to be connected to the Auxiliary
Load do not exceed this rating.
1 2
F1015
TP133
TP130
/100
TP127
Earth
230V
Earth
Auxiliary
Load
Note: In this configuration, it is important to verify the shared
power source is adequately rated to service both the pump
and the auxiliary equipment.

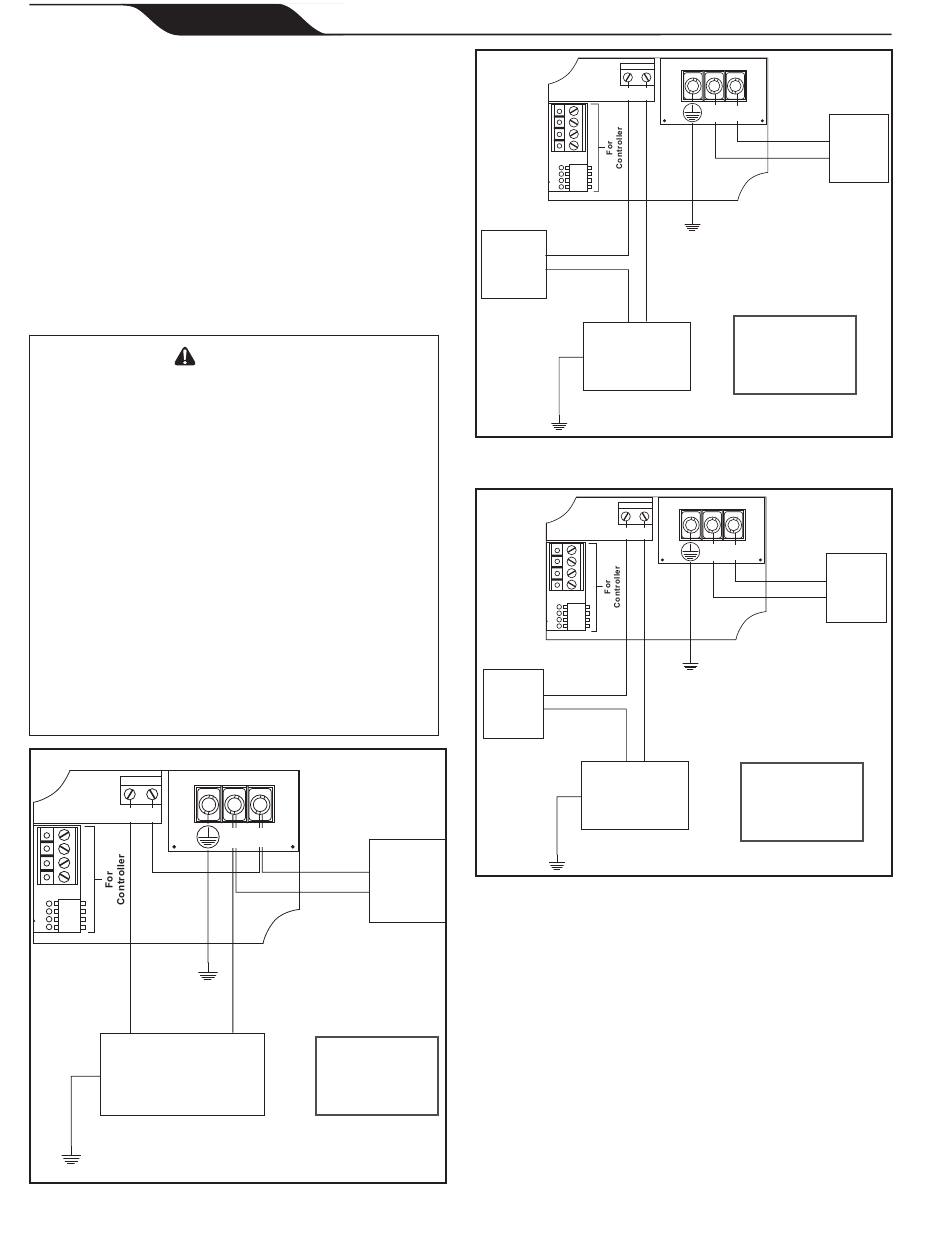

Figure 11. 230V Auxiliary Load, Shared Power
Source Wiring Diagram
Jandy Pro Series VS FloPro™ Series Variable-Speed Pump
®
Pumps and any auxiliary
®
(NEC ), all local electrical
® ®
L2 L1
F1014 L1
(Black)
230V
Power
Source
L2
(Red or
Black)
L2
(Red or Black)
EXAMPLE ONLY
NOT Representative of
all wiring configurations
1 2
TP133
TP130
/100
TP127
Line
(Black)
115V
Power
Source
Neutral
(White)
(Black)
115V
Earth
Auxiliary
Load
Figure 12. 115V Auxiliary Load, Separate Power
Sources Wiring Diagram
1 2
TP133
TP130
/100
TP127
L1
(Black)
230V
Power
Source L2
(Red or Black)
Line
(Black)
230V
Earth
Auxiliary
Load
Figure 13. 230V Auxiliary Load, Separate Power
Sources Wiring Diagram
Auxiliary Load Operation Characteristics
Auxiliary Load relay contact activation is speed-
dependent, and behaves as follows:

Contact Closure

From a stopped condition, there is a three-minute delay
before the Auxiliary Load contact is closed when the
motor speed reaches and maintains a speed of at least
1725 RPM.
From a running condition at below 1725 RPM, there is
a five-second delay before the Auxiliary Load contact
is closed when the motor speed reaches and maintains a
speed of at least 1725 RPM.
|
Installation & Operation Manual
L2 L1
L1
F1015 F1014
(Black)
L2
(Red or
Black)
Earth
Line
EXAMPLE ONLY
NOT Representative of
all wiring configurations
L2 L1
F1015 F1014 L1
(Black)
Source
L2
(Red or
Black)
Earth
EXAMPLE ONLY
NOT Representative of
all wiring configurations
230V
Power
Source
230V
Power
