H-8105, H-8106
π
H-8107

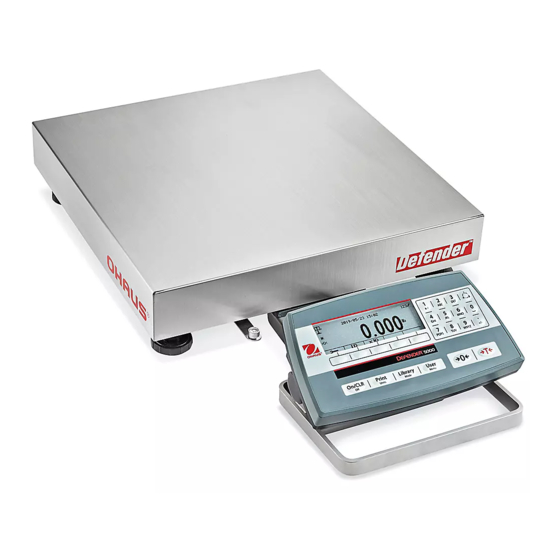

OHAUS DEFENDER™ 5000
DIGITAL SCALE
CONTROL PANEL
CONTROL FUNCTIONS
# BUTTON ACTION
The five softkeys correspond to several icons at the bottom of the display area. These icons display for each softkey
1
function specifically available for configuration and operation of the mode.
Short press: if the terminal is off, power on the terminal; if the terminal is on, clear the data input.
2
Long press: Power off the terminal.
Short press: Send the current display value to the RS-232 port or option when properly enabled.
Print
3
Long Press: Change the current weighing unit. Press and hold the key to scroll through the list of enabled units.
Units
Release the key to switch to the unit selected.
Short press: Press the key to enter the library.
Library
4
Long press: Press and hold the key to change weighing modes. Press and hold the key to scroll through all weighing
Mode
modes. Release the key to switch to the mode selected.
Short press: Press the key to enter user profile.
User
5
Menu
Long Press: Press the key to enter user menu.
0
6 Short press: When the load on the pan is within the zero range, press the key to set the display to zero.
Short press: When a container is on the pan, press this key to store the weight of the container as the tare value.
T Short press: Enter the known weight of a container using the numeric keypad, then press this key to establish preset tare value.
7
Short press: When a tare has been entered, empty the pan and press this key to clear the tare value.
Long press: If a preset tare has been entered, press this key to view the preset tare value.
PAGE 1 OF 101
1-800-295-5510
uline.com
OVERVIEW OF CONTROLS
Para Español, vea páginas 34-67.
Pour le français, consulter les pages 68-101.
CONTROL PANEL PARTS
# DESCRIPTION
1 Softkey Function Buttons
2 On/Clear Off Button
3 Print Units Button
4 Library Mode Button
5 User Menu Button
6 Function Mode Button
7 Tare Menu Button
8 Numeric Keypad
9 Input Modes Button
0621 IH-8105
