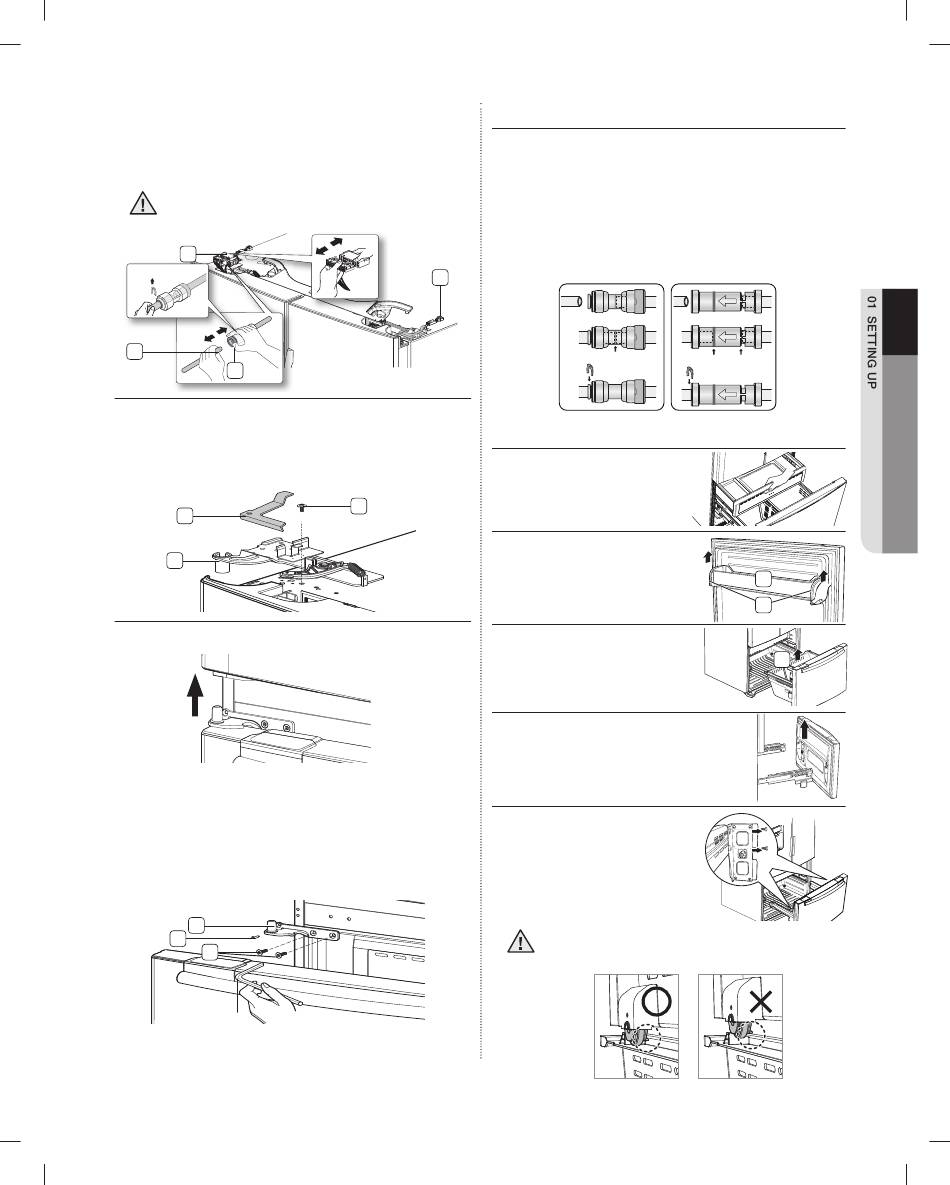

2. Disconnect one connector ( 3 ) on the right side door
and one connector ( 4 ) on left side door. To remove
the water coupler from the hinge, twist and pull it from
the hinge. Remove the water line ( 5 ) while pressing
the marked part ( 6 ) of the water line coupler.
If a red clip is on the coupler, it must be
removed before removing the tube.
CAUTION
4
Red Clip Red Clip
(1/4") (1/4")
5
6
3. Pull and remove the hinge lever ( 7 ). Remove the
ground screw ( 8 ) attached to the upper left and
right door hinges with a philips screwdriver (+).
Remove the upper left and right door hinges ( 9 ).
7
9
4. Lift the door straight up to remove.
5. Remove the screw ( 10 ) attached to the lower left
and right door hinges with a philips screwdriver (+).
Remove the 2 hex head bolts ( 11 ) attached to
the lower left and right door hinges with an allen
wrench (3/16"). Remove the lower left and right
door hinges ( 12 ).
12
10
11
Allen wrench Allen wrench
DA68-02488A.indb 섹션5:07 DA68-02488A.indb 섹션5:07

REATTACHING THE REFRIGERATOR DOORS

To reattach the fridge doors after you have moved the
fridge to its fi nal location, assemble parts in reverse order.
1. The Water Line must be fully inserted to the center
of transparent coupler (Type A) or the line(Type B) to
prevent water leakage from the dispenser.
2. Insert the clip in the install pack and check that it
holds the line fi rmly.
3

DISASSEMBLE THE FREEZER DRAWER

1. Take out the upper drawer
by lifting it up.
8
2. Remove the tilting pocket
( 1 ) by pulling both support
guards ( 2 ) upward at the
same time.
3. Take out the lower basket
( 3 ) by lifting the basket up
from the rail system.
4. Remove 4 hex head bolts
from both sides with a socket
wrench (10mm).
5. Lift up the freezer door from
the rails.
CAUTION
Type A Type A Type B Type B
Dispenser Dispenser
Center of Transparent coupler Center of Transparent coupler
The Guide Lines The Guide Lines
clip A (1/4") clip A (1/4")
clip A (1/4") clip A (1/4")
(6.35 mm) (6.35 mm)
(6.35 mm) (6.35 mm)
Putting too much food into the freezer drawers
can prevent the freezer from closing completely
and can cause frost build-up.
1
Slot
2
3
