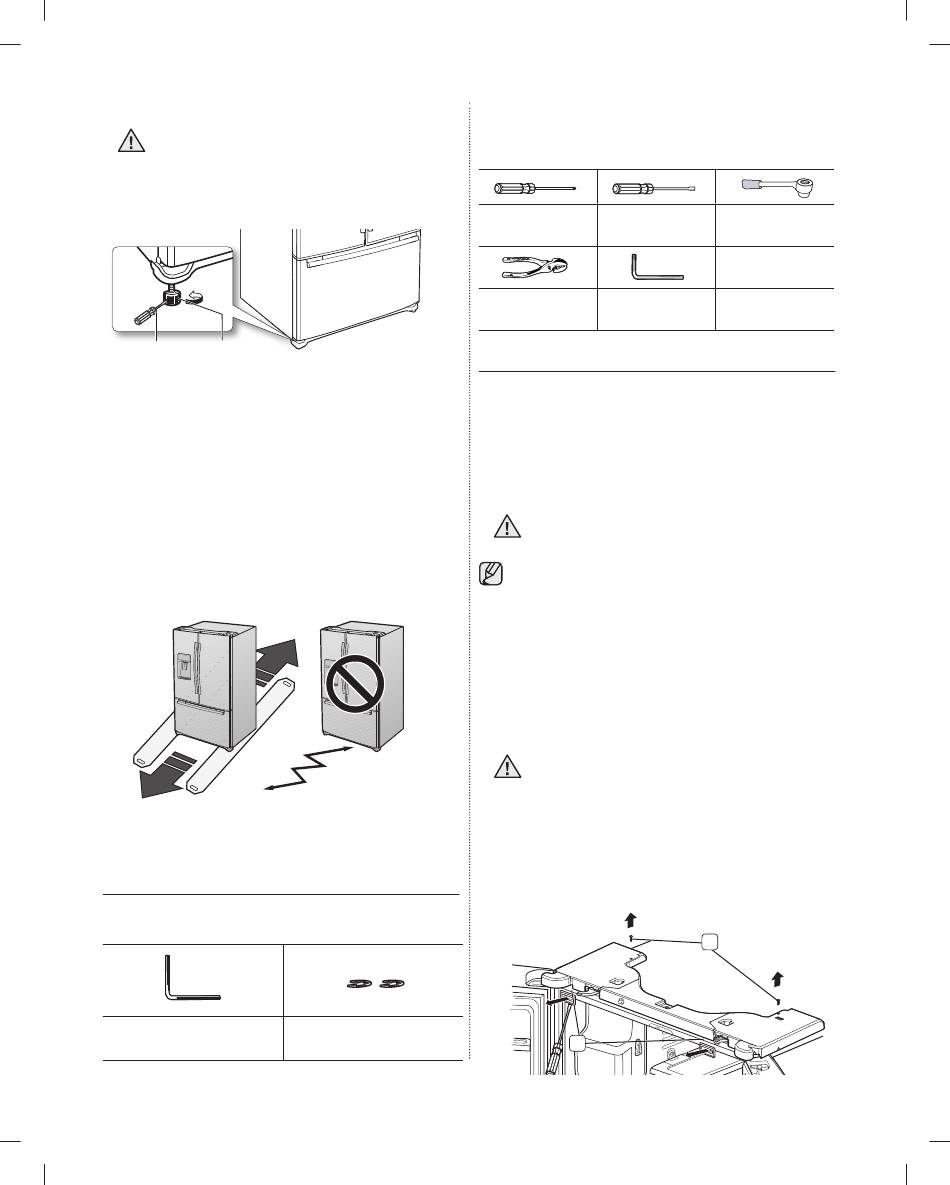

Removing The Refrigerator Doors - Samsung RFG296HD Manuel D'utilisation

When moving your refrigerator
To prevent fl oor damage, be sure the front
adjusting legs are in the up position
CAUTION
(above the fl oor). Refer to 'Adjusting the doors' in the
manual (on page 9).
Flat-blade Flat-blade
Control Lever Control Lever
screw driver(-) screw driver(-)
FLOORING
For proper installation, you must place this refrigerator
on a level, hard surface that is the same height as the
rest of the fl oor. This surface should be strong enough
to support a fully loaded refrigerator, or approximately
359lbs (165kg).
To protect the fi nish of the fl ooring, cut a large
section of the cardboard carton and place it under
the refrigerator where you are working. When moving
the refrigerator, you need to pull and push it straight
forwards or back. Do not wiggle it from side to side.
ACCESSORIES AND REQUIRED
TOOLS
The following accessories are included with your
refrigerator:
Hex wrench
06_ setting up
DA68-02488A.indb 섹션8:06 DA68-02488A.indb 섹션8:06
Required Tools (Not provided)
You need the following tools to complete the
installation of your refrigerator:
Philips
screwdriver(+)
Pliers

REMOVING THE REFRIGERATOR DOORS

For some installations you need to remove the fridge
and freezer drawers so you can move the refrigerator to its
fi nal location. Do not remove the doors/drawer if you don't
need to. If you do not need to remove the refrigerator
doors, go to Adjusting the Level on page 8. If you need to
remove the doors. continue below. Before removing the
door/drawer, make sure you read the following items:
WARNING
• Be careful not to drop, damage or scratch the
door/drawer while removing them.
• Be careful not to get injured while removing the
door/drawer.
• Reattach the door/drawer properly to avoid:
- Moisture from air leakage.
- Uneven door alignment.
- Wasting energy due to improper door seal.
Disassemble the refrigerator doors
WARNING
Disassemble the refrigerator doors
1. With the door opened, remove the cap top table
( 1 ) with a fl at-blade screwdriver(-). and close the
door. Remove 2 screws holding down the cover
hinge ( 2 ) and turn it with several wires connected.
Fastener
Flat-blade screw
driver(-)
Allen wrench
(3/16") (5mm)
Disconnect power to the refrigerator before
removing the door or drawer.
Be careful not to drop and scratch the doors
while removing the doors.
2
1
Socket wrench
(10mm)
