POOL SETUP ( continued )

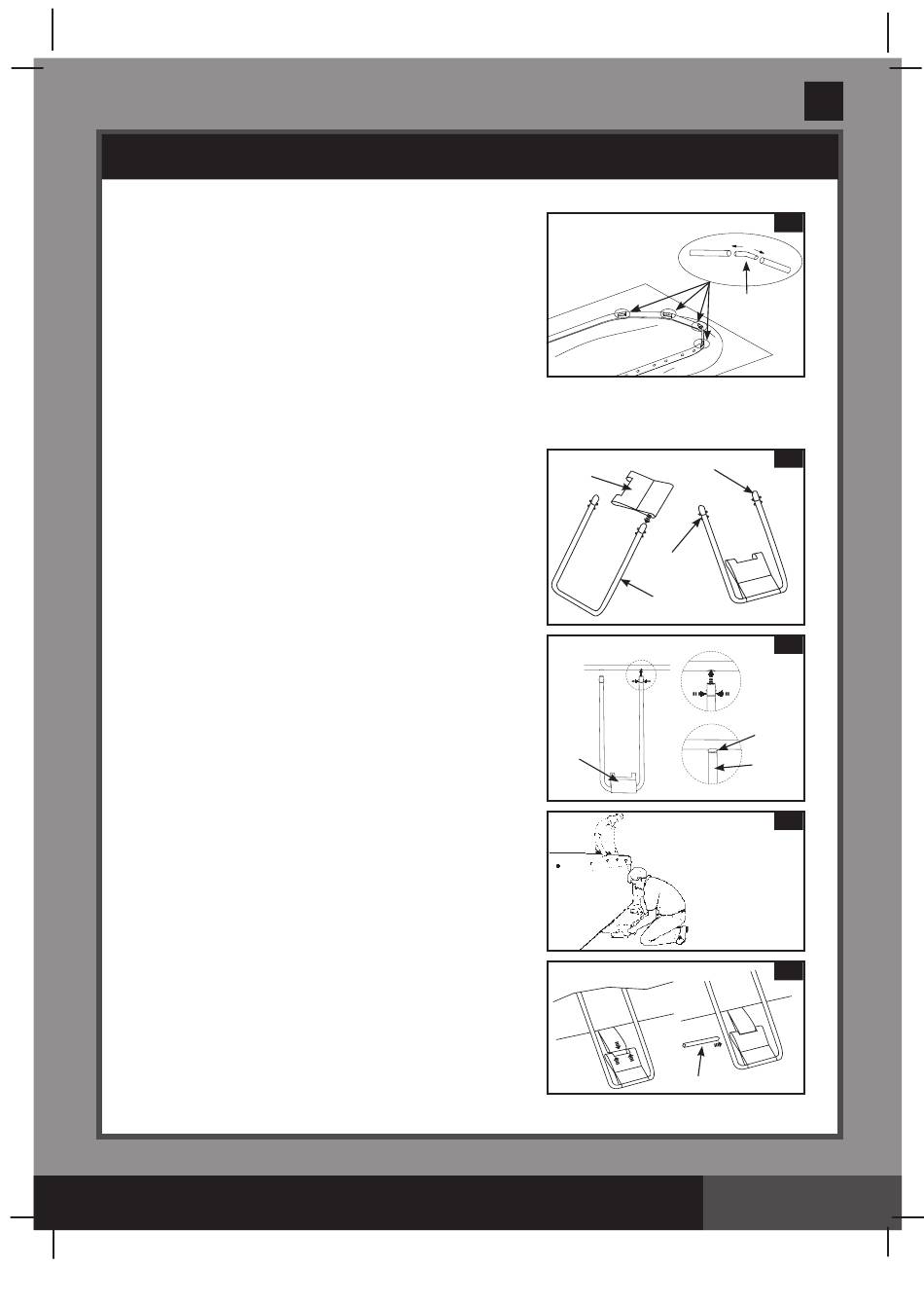

• Start the corner joint combination for the pool's short
sides by inserting a corner joint (7) into "A" beam first,
then slide a "D" beam into the sleeve opening and
over the corner joint (7). Continue inserting all the corner
joints and "D" beams (see drawing 3.2). (Be sure all
4 sides end up with the metal beam holes aligned with
the white liner sleeve holes.)
• The last joint connection may be difficult to complete. You
can do it though, if you first simultaneously raise the last
joint and beam about 2 inches (5 cm). Now insert the
corner joint into the beam while lowering the pieces into
position. The corner joint will easily slide into the beam.
4. Slide the restrainer strap (12) onto the large U-shaped side
support (10). Repeat for all restrainer straps and U-supports
(see drawing 4).
IMPORTANT: The liner is to remain flat on the ground
during the next step #5. This is why 5 - 6' of clearance
space around the pool is necessary.
5.
The tops of the U-shaped side supports have a double
button spring loaded clip (9) that is factory pre-installed.
Insert the side supports into the "A-B-A & D" beam holes
by squeezing the bottom button inward with your fingers.
Squeezing this bottom button will allow the support to enter
the beam. Once the U-support is inside the beam release
the finger pressure allowing the support to "SNAP" into
place. Repeat this procedure for all U-shaped side supports
(see drawing 5).
6. With one person standing inside the pool, raise one corner;
insert the connecting rod (11) into the overlapping openings,
to connect the liner straps to the restrainer straps. Repeat
the operation with the other liner strap and restrainer straps
(see drawings 6.1 & 6.2).
SAVE THESE INSTRUCTIONS
(82) PRISM FRAME™ OVAL PREMIUM POOL ENGLISH 7.5" X 10.3" PANTONE 295U 08/04/2020
English
7
8
12
9
10
12
LINER
LINER
11
Page 8
82A
3.2
4
5
9
10
6.1
6.2
